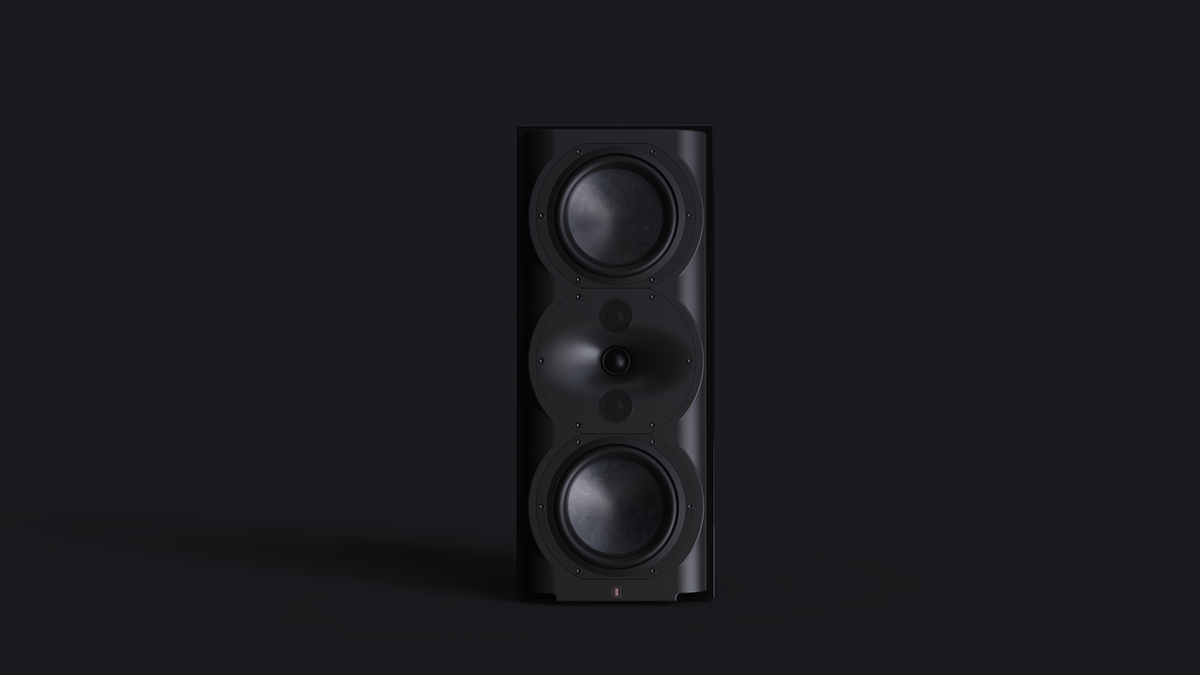

The Perlisten Audio R5m Monitor Speaker reveals the Acoustic Truth through precise engineering and innovative materials. Its dual design options allow it to perform optimally in varied environments, ensuring unmatched sound fidelity.
The R5m integrates advanced acoustic principles with proprietary driver technology, focusing on optimal sound reproduction across a wide frequency range. The DPC-Array, which employs three 26mm silk dome tweeters, ensures exceptional directivity control, critical for accurate spatial representation. Pairing this with 165mm woofers crafted from HPF pulp—developed over two years—allows for a substantial bass response characterized by both depth and clarity. The speaker's dual alignment options, bass reflex or acoustic suspension, allow engineers to tailor their system to specific acoustic environments, providing flexibility without sacrificing performance. This thoughtful approach to enclosure design enhances both sound pressure levels and overall efficiency, creating a richly detailed listening experience.
Key Features
-
DPC-Array Configuration: Utilizes three 26mm silk dome tweeters to improve directivity control and maintain a consistent timbre across the frequency spectrum.
-
Custom Woofers: Features 165mm woofers designed from HPF pulp for improved stiffness and reduced distortion, resulting in accurate bass reproduction.
-
Dual Enclosure Design: Offers both bass reflex and acoustic suspension configurations, allowing listeners to choose the optimal setup for their acoustic environment.
-
Sensitivity Rating: Rated at 89.2dB/2.83v/1.0m, this speaker can efficiently use amplifier power while delivering high output levels.
-
THX Certification: Achieves THX Dominus and THX Ultra certifications, ensuring high fidelity and performance standards in professional audio environments.
Technical Specifications
- Enclosure Alignment: 3-way bass reflex / acoustic suspension
- Driver Configuration: DPC Array: 26mm(3) Silk dome, Woofers: 165mm(4) HPF diaphragms
- Sensitivity: 89.2dB/2.83v/1.0m
- Impedance: 4Ω nominal / 2.7Ω min
- Response Linearity: 80 - 20kHz +/-1.5dB window
- Frequency Response (-10dB): Bass reflex: 40-32kHz, Acoustic suspension: 47-32kHz
- Typical In-Room Bass Extension: Bass reflex: 37Hz, Acoustic suspension: 43Hz
- Dimensions (HxWxD): 546x230x336mm (21.5x9.0x13.2 inches)
- Weight: 17.5 kg (38.5 lbs.)
- Recommended Amplifier Power: 100-250W RMS
- SPL Capability (100-20kHz): 113.2dB peak <3%-2nd, 3rd Harmonics
- Certification: THX Dominus, THX Ultra
- Available Finishes: Piano black
