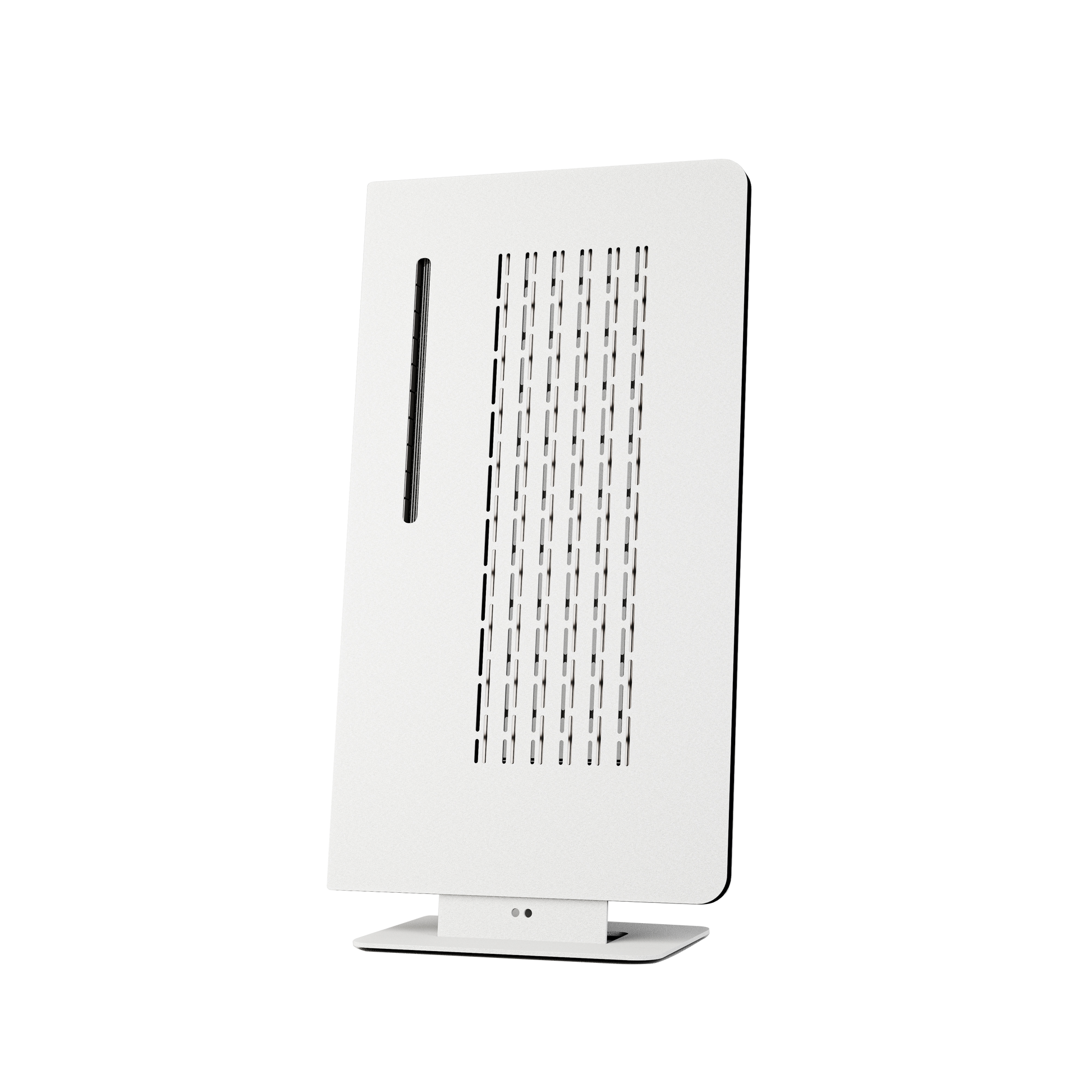

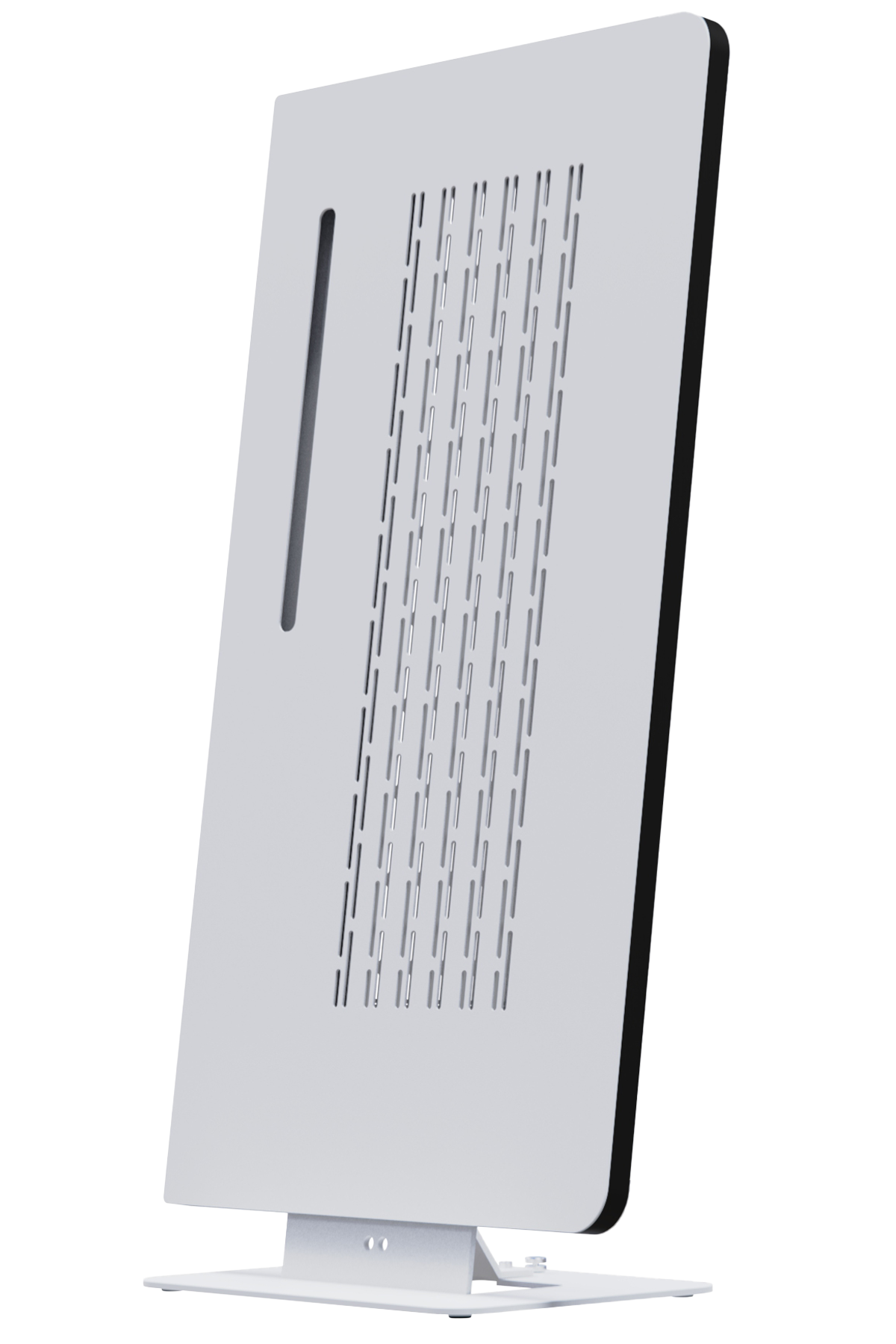

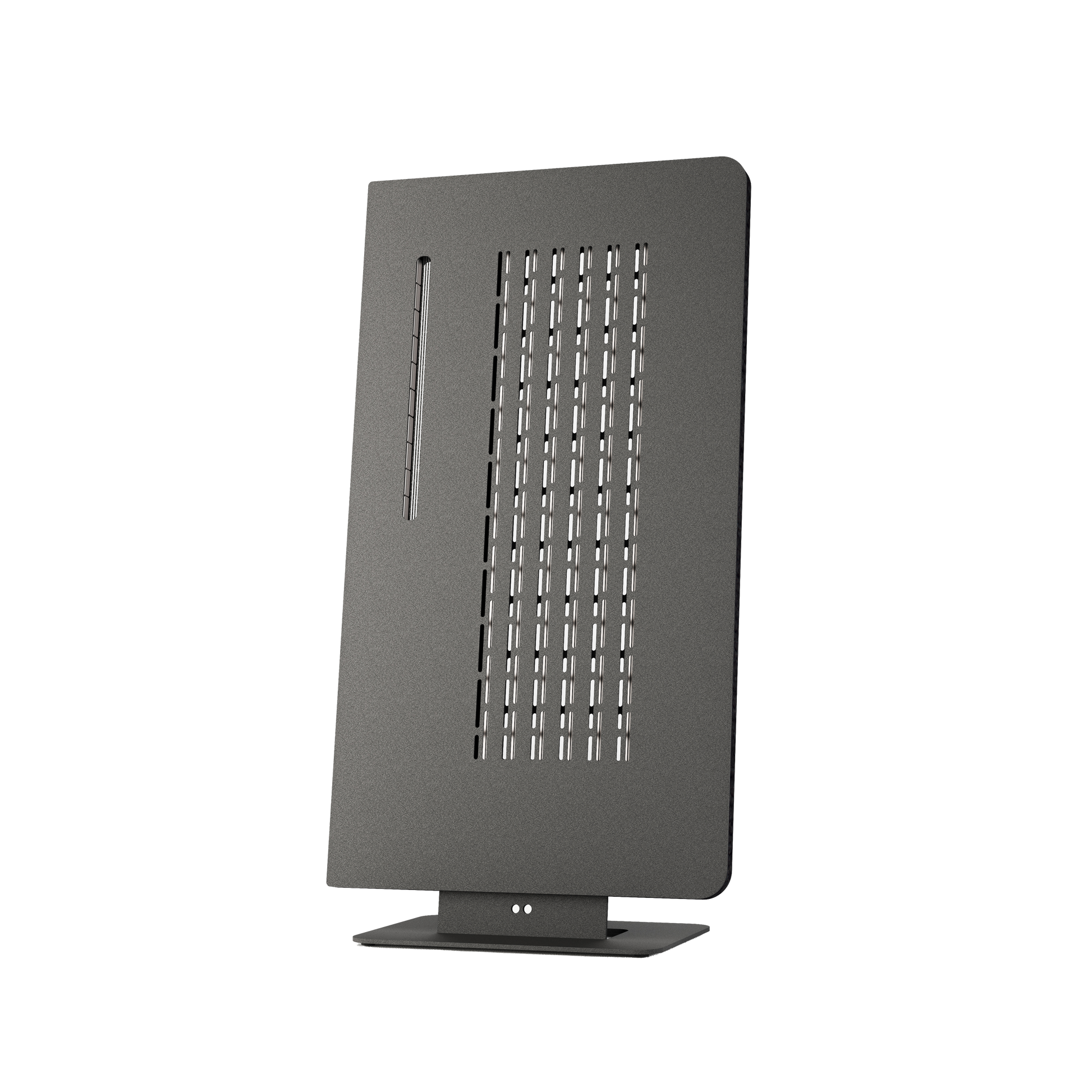

Experience acoustic truth with the Diptyque Audio DP 85, designed to deliver a natural sound with minimal colorations. Its innovative flat speaker design offers a refined listening experience, ideal for music lovers.
The Diptyque Audio DP 85 utilizes advanced acoustic engineering principles for optimal sound reproduction. Central to its design is the 0.132 m² low-midrange cell employing the proprietary PPBM (Pressure Point Boundary Method) principle, allowing efficient sound wave propagation and minimizing distortion. Coupled with a sophisticated 30 cm high ribbon tweeter, this speaker achieves an expansive frequency range from 50 Hz to 22 kHz. The integration of a mechanical sandwich structure, derived from their Reference model, enhances resonance control and structural integrity. The careful selection of a 6 Ohm impedance and a crossover frequency of 1600 Hz further optimizes power handling and sensitivity, ensuring compatibility with high-fidelity amplifiers.
Key Features
- 0.132 m² Low-Midrange Cell: Operates on the PPBM principle for optimal sound efficiency and reduced distortion.
- 30 cm High Ribbon Tweeter: Provides extended high-frequency response for clarity and detail in music.
- Mechanical Sandwich Structure: Enhances rigidity and minimizes unwanted resonances, inherited from the Reference model.
- Impedance of 6 Ohms: Balances power handling and amplifier compatibility for effective energy transfer.
- Crossover Frequency at 1600 Hz: Ensures seamless transition between low-midrange and high frequencies for a coherent soundstage.
- Wide Frequency Bandwidth (50-22000 Hz): Captures both low bass and high treble frequencies for a full audio experience.
Technical Specifications
- Type: 2 ways
- Crossover Frequency: 1600 Hz
- Sensitivity: 85 dB / 1 W / 1 m
- Impedance: 6 Ohms
- Bandwidth: 50-22000 Hz
- Power Handling: 150 W (recommended amplifier > 60 W)
- Dimensions (with stand): 900 x 475 x 260 mm
- Weight: 24 kg
