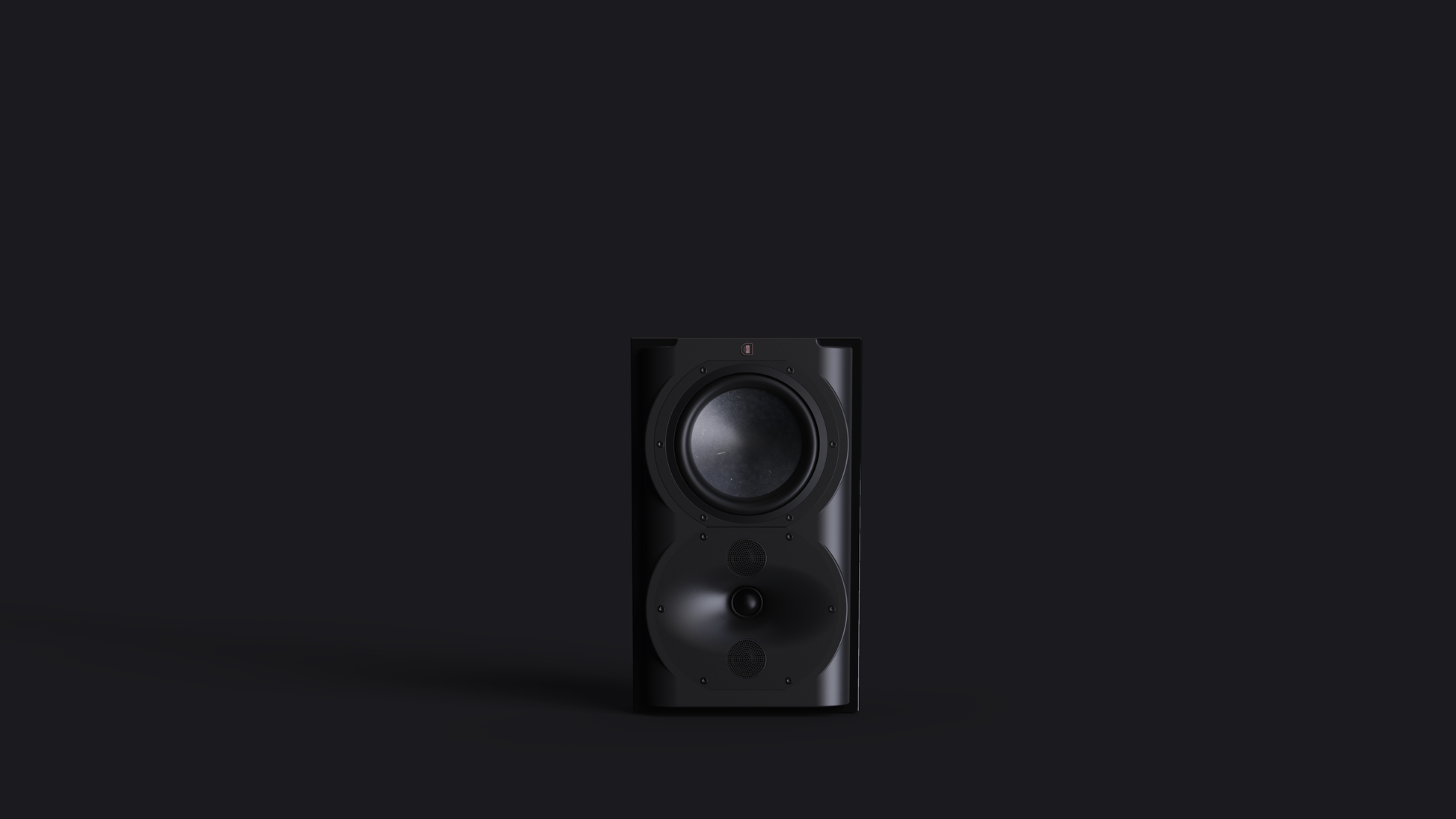

Perlisten Audio R4s Surround Speaker

The Perlisten Audio R4s Surround Speaker employs a DPC array that ensures precise timbre matching across your audio setup. Its design prioritizes acoustic fidelity, delivering superior performance for the discerning listener.

---

The R4s Surround Speaker features a sophisticated 3-way acoustic suspension design, utilizing a DPC (Directivity Pattern Control) Array comprised of three 26mm silk dome tweeters. This configuration not only aids in achieving excellent directivity control but also ensures that timbre matching with the entire R-Series system is harmonic across frequencies. The 165mm woofer utilizes proprietary HPF pulp material, combining traditional loudspeaker design principles with modern optimizations to enhance the speaker’s efficiency and responsiveness. The enclosure is engineered to reduce unwanted resonance and support a smooth power response across both 2pi and 4pi environments. Performance metrics indicate a frequency response of 48-32kHz (-10dB), with a sensitivity rating of 86.5dB and a capability of delivering up to 109.5dB SPL, ensuring exceptional clarity and power handling within recommended amplifier limits of 50-200W RMS.

Key Features

• DPC Array: A three-tweeter array that provides enhanced directivity control and seamless integration with other R-series models, ensuring accurate sound reproduction.
• Silk Diaphragms: The 26mm silk dome tweeters are designed to deliver a smooth representation of midrange and treble frequencies, reducing listener fatigue and enhancing overall clarity.
• HPF Pulp Woofer: The proprietary 165mm woofer uses high-performance pulp material, optimized specifically for durability and response consistency, offering deep bass extension down to 42Hz in typical room conditions.
• Acoustic Suspension Design: This design minimizes distortion and improves transient response, producing a more lifelike sound compared to traditional designs.
• Versatile Mounting Options: The integrated keyhole and optional tilt/swivel bracket provide flexibility for installation, allowing placement behind screens or on walls for optimal sound distribution.

Technical Specifications

• Driver Complement: DPC Array (3 x 26mm Silk Dome), 165mm HPF Woofer
• Enclosure Type: 3-way Acoustic Suspension
• Sensitivity: 86.5dB/2.83v/1.0m
• Impedance: 4Ω nominal, 3.7Ω min
• Frequency Response: 48-32kHz (-10dB)
• Response Linearity: 300 - 20kHz +/-1.5dB window
• In-Room Bass Extension: 42Hz
• Dimensions (HxWxD): 378 x 230 x 173 mm (14.9 x 9.0 x 6.8 inches)
• Weight: 9.5 kg (20.9 lbs.)
• Recommended Amplifier Power: 50-200W RMS
• SPL Capability: 109.5dB peak (100-20kHz) < 3%-2nd, 3rd Harmonics
• Certification: THX Ultra
• Available Finishes: Piano Black
