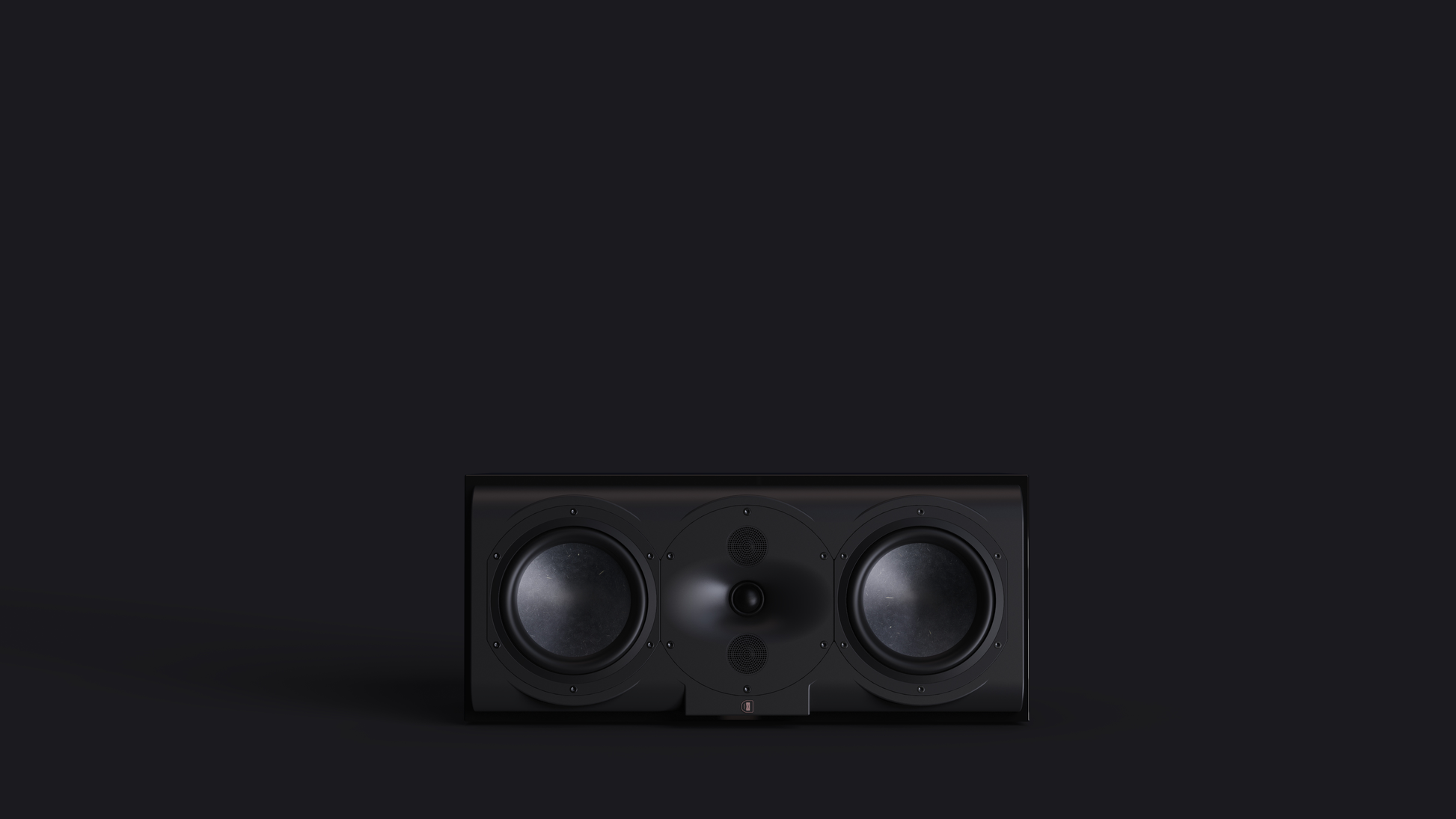

The Perlisten Audio R5c Center Channel Speaker exemplifies acoustic truth through its precise tonal reproduction and dynamic range. This speaker captures the essence of vocal clarity while delivering powerfully engaging sound experiences.
The engineering of the Perlisten R5c Center Channel Speaker centers on its innovative DPC-Array consisting of three 26mm silk dome tweeters, which ensures exceptional directivity control and seamless integration with the R-Series lineup. These tweeters maintain a smooth frequency response across the midrange to treble frequencies, minimizing distortion and providing natural vocal reproduction. Coupled with dual 165mm HPF woofers crafted from proprietary pulp technology, the speaker achieves remarkable efficiency in low-frequency reproduction and a robust soundstage. The 3-way acoustic suspension design optimizes driver performance and enclosure alignment, delivering an enhanced listening experience characterized by low distortion and excellent transient response. The R5c is designed to operate within an impedance of 4Ω nominal and offers an impressive sensitivity rating of 88.6dB, making it suitable for a wide range of amplification options, highlighting its versatility in various home theater setups.
Key Features
-
DPC-Array Technology: The arrangement of three 26mm silk dome tweeters provides superior directivity control, resulting in balanced sound dispersion and improved clarity at all listening positions.
-
HPF Pulp Woofers: The 165mm woofers utilize proprietary HPF technology, allowing for enhanced acoustic performance and extended low-frequency response with reduced distortion.
-
3-Way Acoustic Suspension Design: This configuration allows each driver to operate within its ideal frequency range, which optimizes performance and results in a more natural sound reproduction across all frequency bands.
-
High Sensitivity: With a sensitivity rated at 88.6dB, the R5c can deliver high output levels with lower amplifier power requirements, making it compatible with various amplification systems.
-
Frequency Response: The speaker offers a linear response of 80 - 20kHz with only +/-1.5dB variation, ensuring accurate sound reproduction that remains faithful to the original source material.
-
THX Certification: Meeting THX Dominus and THX Ultra standards ensures that the speaker can perform excellently in large home theater environments, maintaining audio fidelity at high volumes.
Technical Specifications
- Driver Configuration: DPC Array: 26mm(3) Silk dome, Woofers: 165mm(2) HPF diaphragms
- Sensitivity: 88.6dB/2.83v/1.0m
- Impedance: 4Ω nominal / 3.4Ω minimum
- Frequency Response (±10dB): 49-32kHz
- Typical In-Room Bass Extension: 44Hz
- Dimensions (HxWxD): 240 x 550 x 270 mm (9.5 x 21.6 x 10.6 inches)
- Weight: 15.0 kg (33.0 lbs)
- Recommended Amplifier Power: 100-250W RMS
- SPL Capability (100-20kHz): 112.6dB peak (<3%-2nd, 3rd Harmonics)
- Certification: THX Dominus, THX Ultra
- Available Finishes: High Gloss Black
