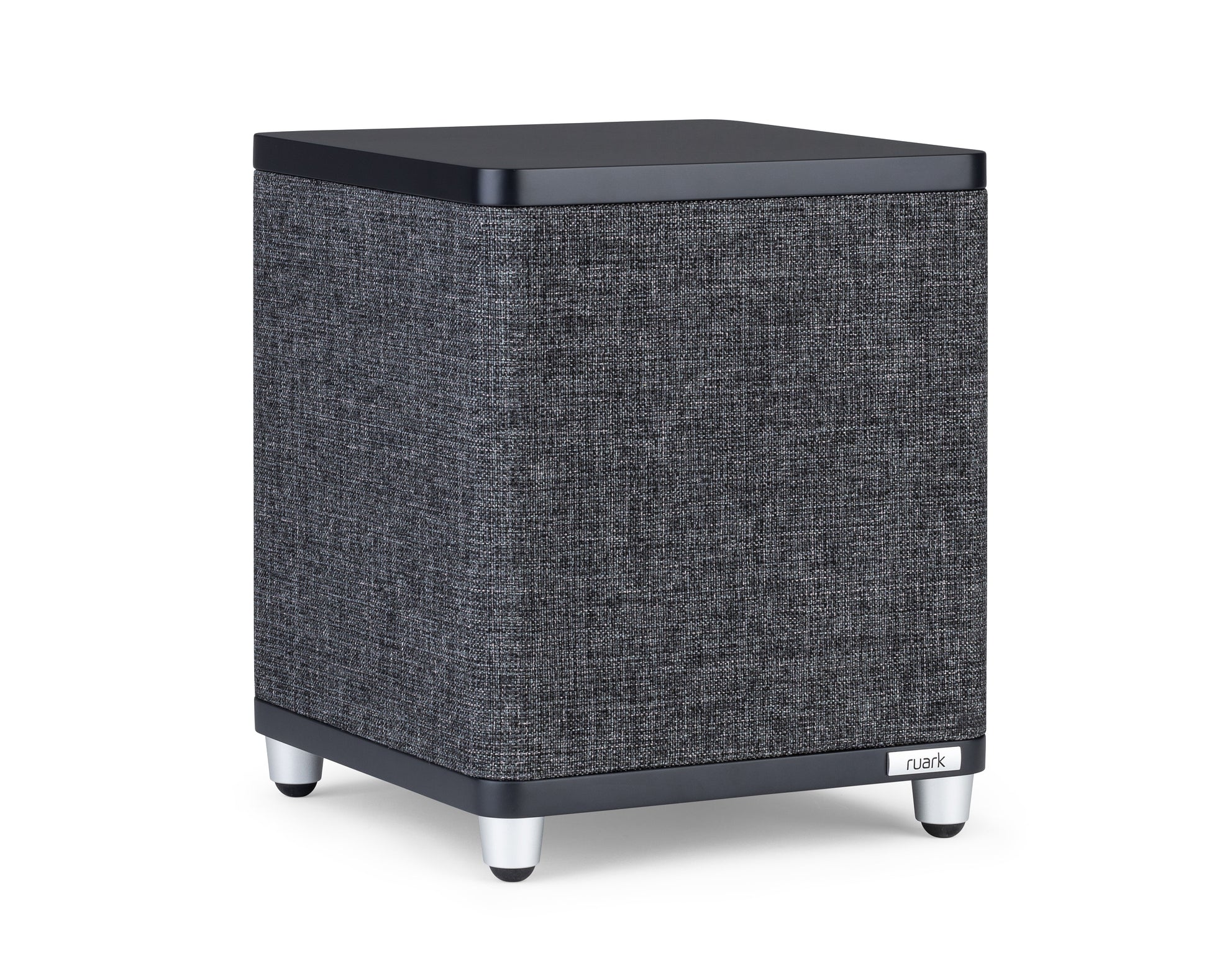

The Ruark Audio RS1 Powered Subwoofer delivers precision-engineered bass that is both deep and musical. Experience the true essence of rhythm and emotion in your music with its scientifically optimized design.
The RS1 Powered Subwoofer employs a custom-designed enclosure optimized to harness the principles of acoustic physics for controlled bass delivery. With a frequency response of 25Hz to 200Hz, it includes a 170mm treated fibre long-throw active driver paired with a 170mm passive radiator. This combination allows for efficient sound wave propagation and low-frequency extension while maintaining the integrity of musicality. The powerful 100W Class D amplifier is designed to provide sufficient headroom to prevent distortion at higher volume levels, while soft clipping technology ensures that signal overloads do not damage the driver. The adjustable crossover ranging from 50–180Hz allows for precise tuning to suit various audio systems, enhancing compatibility and performance.
Key Features
-
Frequency Response 25Hz – 200Hz: This range ensures accurate reproduction of low frequencies, providing a solid foundation for various musical genres.
-
170mm Treated Fibre Long-Throw Active Driver: Designed for efficient movement, this driver maximizes air displacement for enhanced bass performance.
-
Passive Radiator: The passive radiator deployment improves the bass response and efficiency without increasing the enclosure size, leading to more punchy and controlled bass.
-
100W RMS Class D Amplifier: Class D amplifiers are renowned for their efficiency and compact size, providing powerful output while minimizing energy loss.
-
Soft Clipping Filter: This technology protects the amplifier and speaker from overload distortion, maintaining sound integrity even at higher volumes.
-
Adjustable Crossover 50–180Hz: This feature allows users to finely tune the subwoofer's output to blend seamlessly with other speakers, catering to individual sound preferences.
-
Auto On/Standby: Energy-efficient functionality that activates the subwoofer automatically when an audio signal is detected, conserving power.
-
Compatible with Various Systems: Ideal for pairing with the MR1 and R410 models, as well as other systems with subwoofer outputs, ensuring versatile integration.
Technical Specifications
- Cabinet Dimensions: H300 × W250 × D265mm (inc. feet and controls)
- Product Weight: 6.7kg
- Power Consumption: 0.5W standby, 2.0W idle
- AC Power Input: 100-240V, 50-60Hz
- Input: Sub-input via Mono RCA input (up to 2.3Vrms)
- Controls: Adjustable crossover 50–180Hz, input/volume level control, 180-degree phase switch

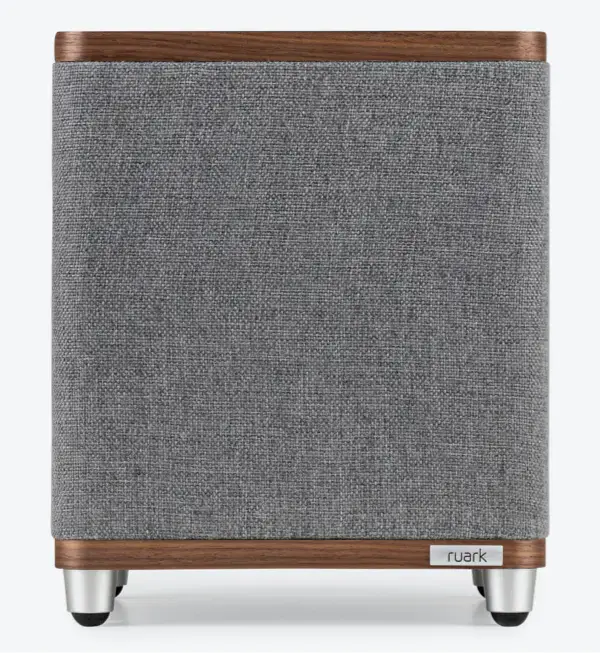

- Finish: Lead Grey cabinet cloth with Rich Walnut top and bottom panels
