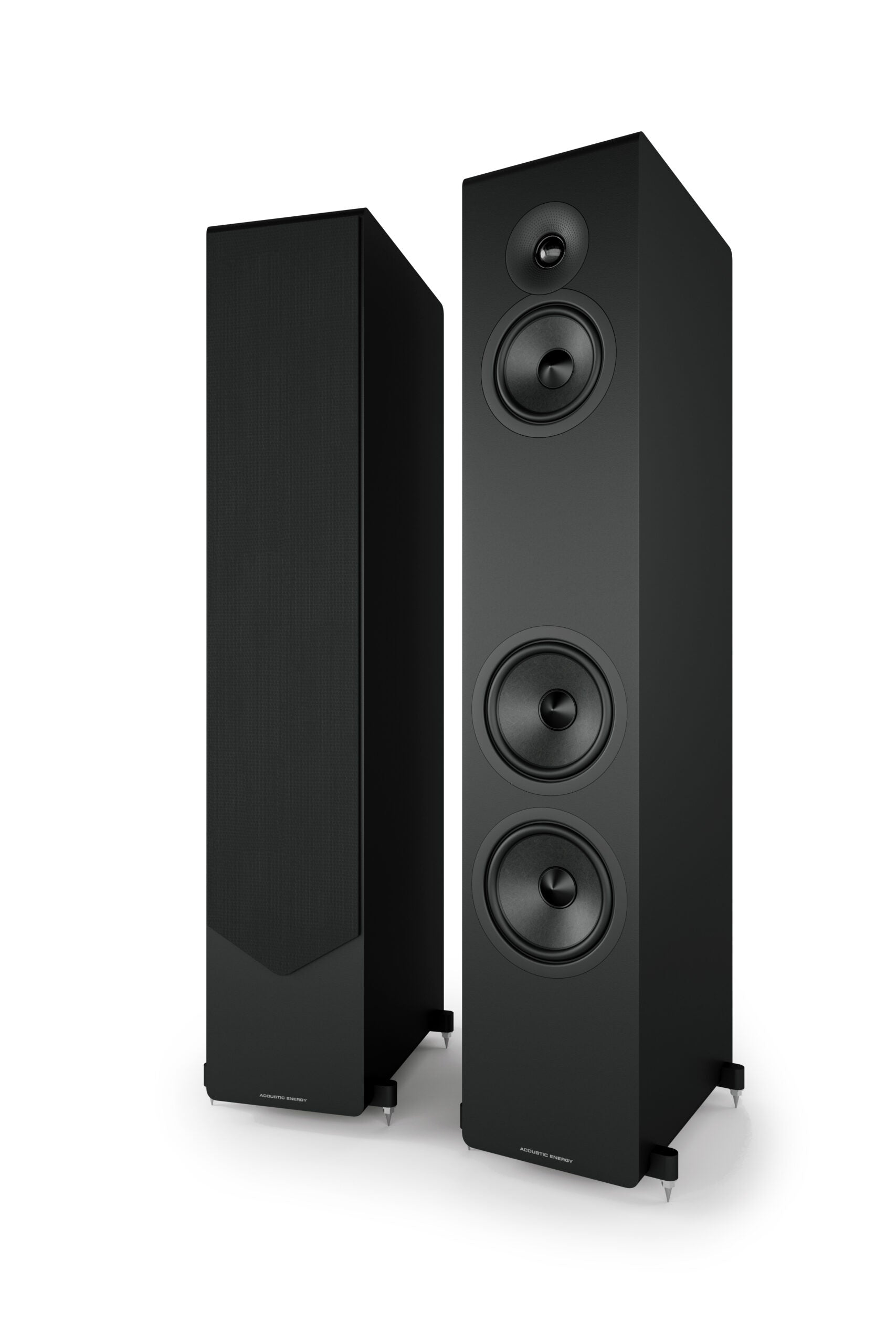

Acoustic Energy AE320² Floorstanding Speaker

The Acoustic Energy AE320² is engineered to deliver exceptional audio clarity and bass response. This floor-standing speaker combines advanced driver technology with a meticulously designed cabinet for optimal acoustic performance.

---

The AE320² employs a three-way design to optimize sound reproduction across the audible spectrum. The new bass-mid drivers utilize a paper/coconut-fibre composite, which enhances stiffness and damping properties, resulting in clearer sound with reduced distortion. The 140mm bass driver is precision-engineered to ensure copious low-frequency output while the 120mm mid driver aids in smooth transition and detail preservation in the mid-range. A 29mm soft dome tweeter offers wide dispersion and precise high-frequency response, effectively covering the frequency range of 30Hz to 29kHz. The inert, constrained-layer cabinet further minimizes resonance, allowing the drivers to perform without coloration. The rear slot port design reduces turbulence and enhances bass extension while maintaining low distortion levels, ensuring a clean and powerful sound output.

Key Features

• New Driver Materials: The paper/coconut-fibre construction of the bass-mid drivers achieves optimal stiffness and lightweight characteristics, improving transient response.
• Cabinet Design: The constrained-layer design of the MDF/bitumen structure minimizes cabinet vibrations, allowing for a purer sound signal.
• Slot Port Design: The rear slot port minimizes air turbulence, enhancing low-frequency performance and reducing distortion in bass output.
• Broad Frequency Range: Extending from 30Hz to 29kHz provides full-range acoustic capabilities, suitable for diverse listening environments.
• High Sensitivity: A sensitivity rating of 92dB enables compatibility with a variety of amplifiers while delivering powerful sound even at lower power inputs.

Technical Specifications

• Mid Drive Unit: 120mm paper cone
• Bass Driver Units: 140mm paper cones
• Tweeter: 29mm dome
• Frequency Range: 30Hz – 29kHz
• Sensitivity: 92dB
• Peak SPL: 118dB
• Power Handling: 200w
• Crossover Frequency: 240Hz / 2.8kHz
• Impedance: 6 ohms
• Design: 3 way
• Grilles: Slim, cloth magnetic fit
• Dimensions (mm): 1050 x 200 x 350 (HxWxD, 1070 inc spikes)
• Spike Thread Size: M8
• Weight: 26kg (each)

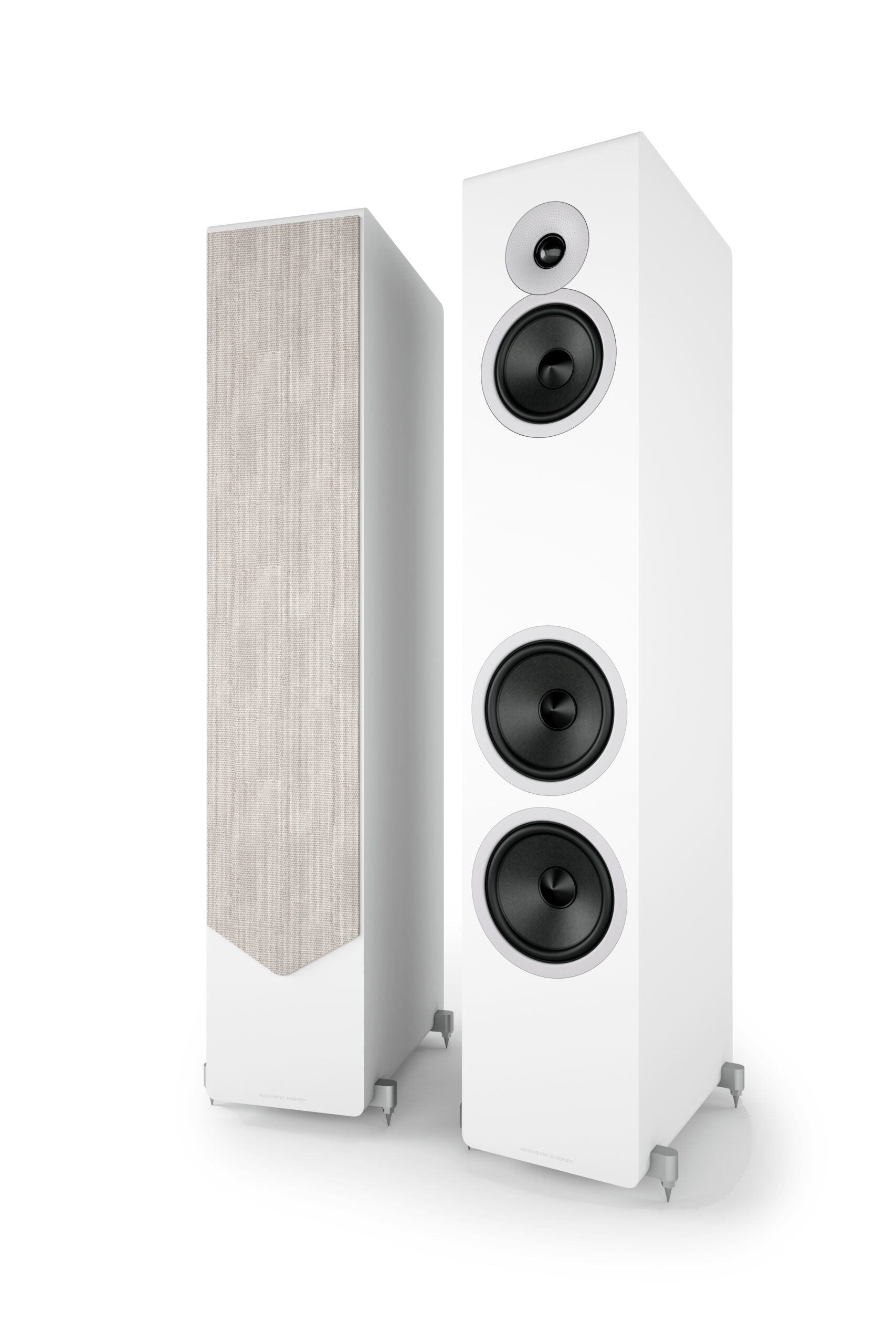

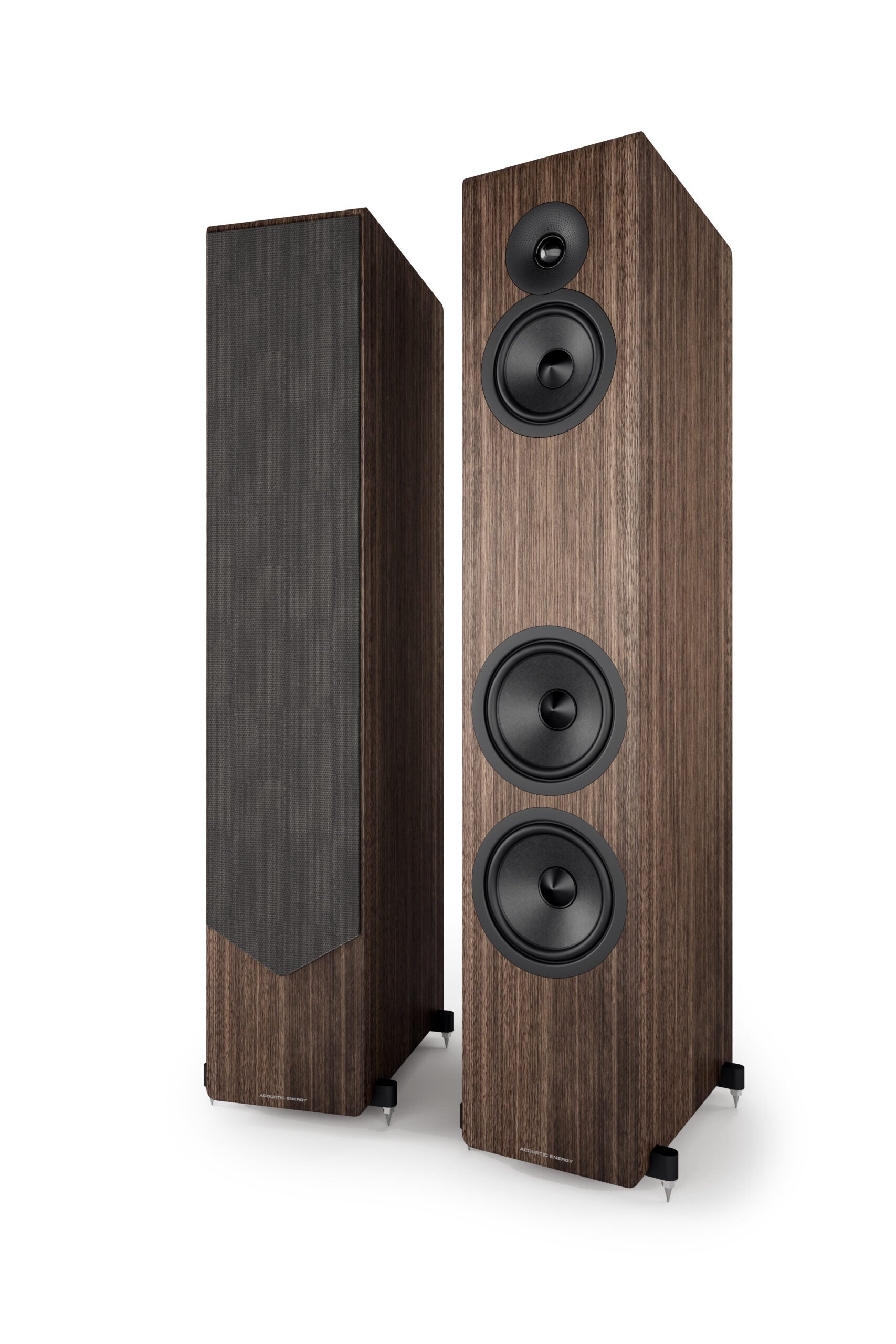

• Finishes: Walnut, ‘Silk-Touch’ Matte Black or Matte White
