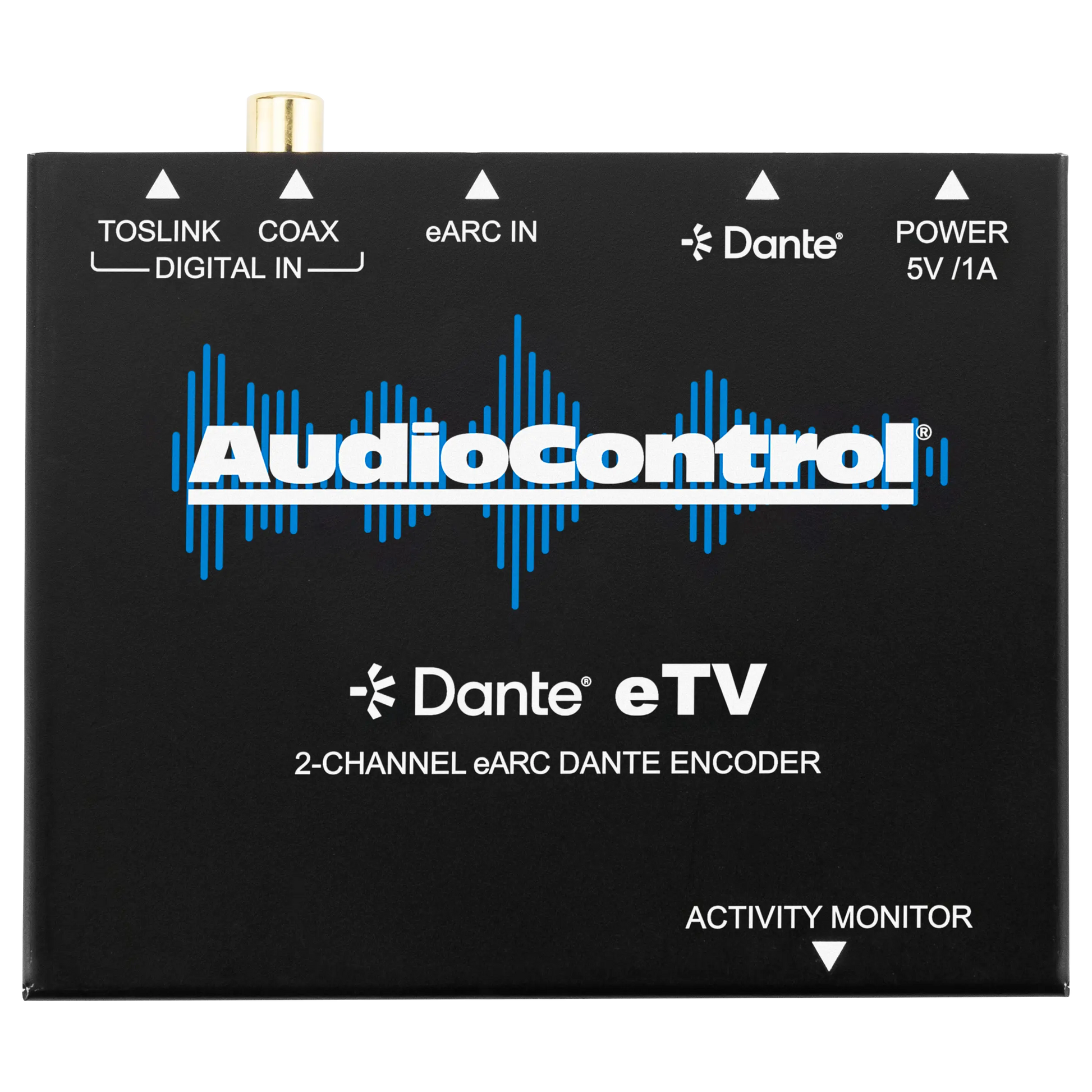

The eARC DANTE™ Encoder effectively translates PCM Stereo audio from eARC sources into a Dante-enabled network format. By maintaining the digital signal path, it ensures maximum fidelity and integration across networked audio devices.
The eARC DANTE™ Encoder operates on the principles of audio signal processing and digital communication. It captures PCM audio via HDMI eARC, a standard that allows high-bandwidth audio streams with minimal latency. The conversion of audio data is performed without loss of fidelity, adhering to high sample rates and bit depths that preserve the original sound quality. By utilizing Power over Ethernet (PoE), the unit achieves efficient power consumption while minimizing interference. Its design facilitates quick integration into existing Dante networks, employing auto-discovery protocols that allow for seamless configuration and deployment in a variety of audio environments.
Key Features
-
eARC Connectivity: Utilizes Enhanced Audio Return Channel (eARC) technology to facilitate high-quality audio transmission with low latency over HDMI.
-
Maintains Digital Signal Integrity: Encodes audio in the digital domain, ensuring that there’s no degradation in signal fidelity as it moves through the network.
-
Wide Range of Sample Rates: Supports industry-standard sampling rates from 44.1 kHz to 96 kHz, enabling high-resolution audio playback across varying formats.
-
Multiple Word Lengths: Capable of supporting audio bit depths of 16-, 24-, or 32-bit, allowing for detailed audio reproduction suitable for professional applications.
-
Switchable Digital Inputs: Features selectable Coaxial and TOSLINK inputs for flexible connectivity options beyond eARC sources.
-
Auto-Discovery in Dante Networks: Simplifies setup by allowing automatic recognition of the encoder on a Dante network, facilitating efficient resource management.
-
Compatible with Dante Controller: Requires the Dante Controller for initial configuration, ensuring that settings can be fine-tuned and adjusted for optimal performance across the network.
Technical Specifications
- Supported input: HDMI eARC, Coaxial, TOSLINK
- Audio sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
- Audio bit depths: 16-bit, 24-bit, 32-bit
- Power: PoE (Power over Ethernet)
- Dimensions: Ultra-compact design
- Network Protocol: Dante, AES67 compliant
