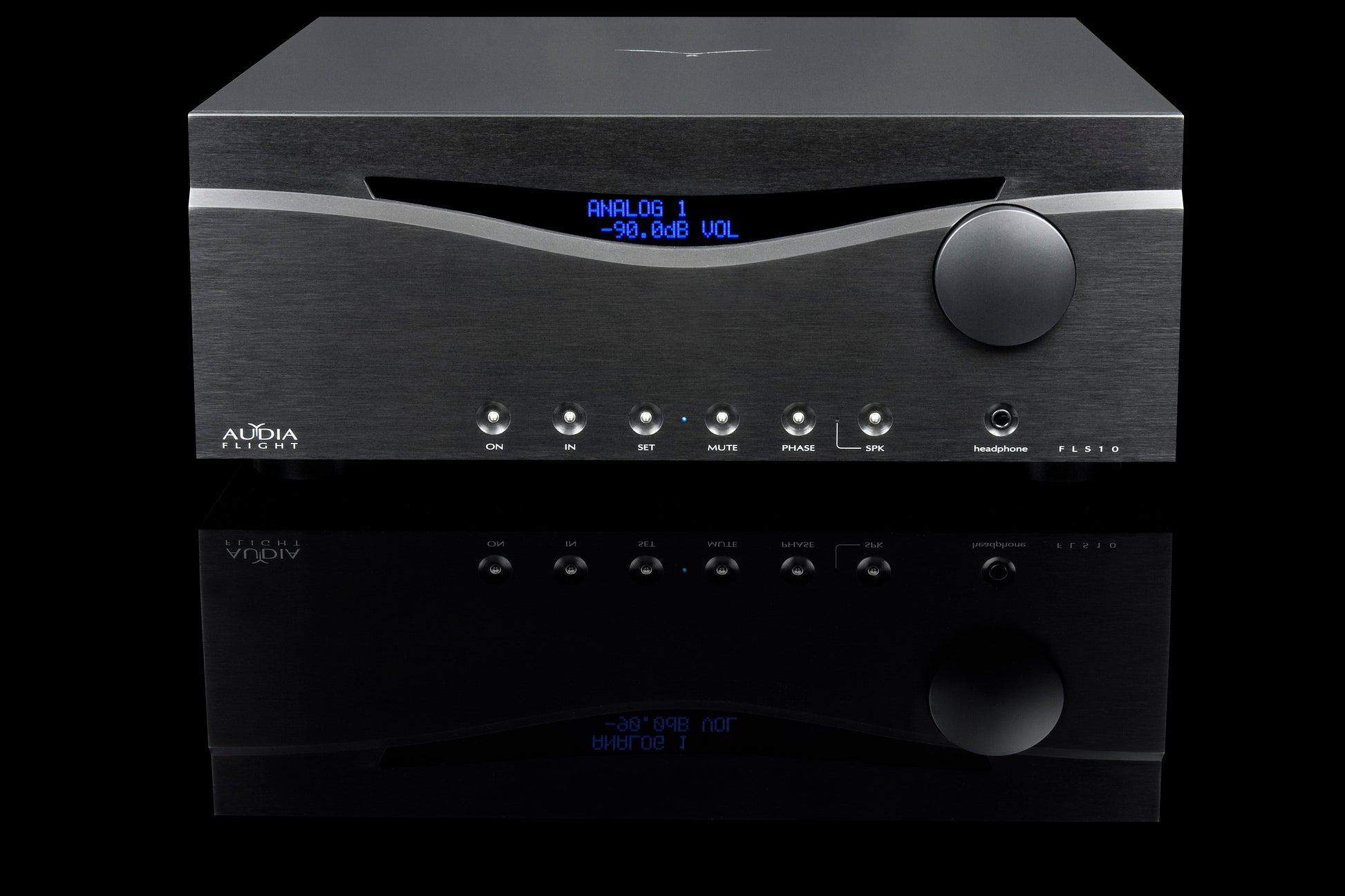

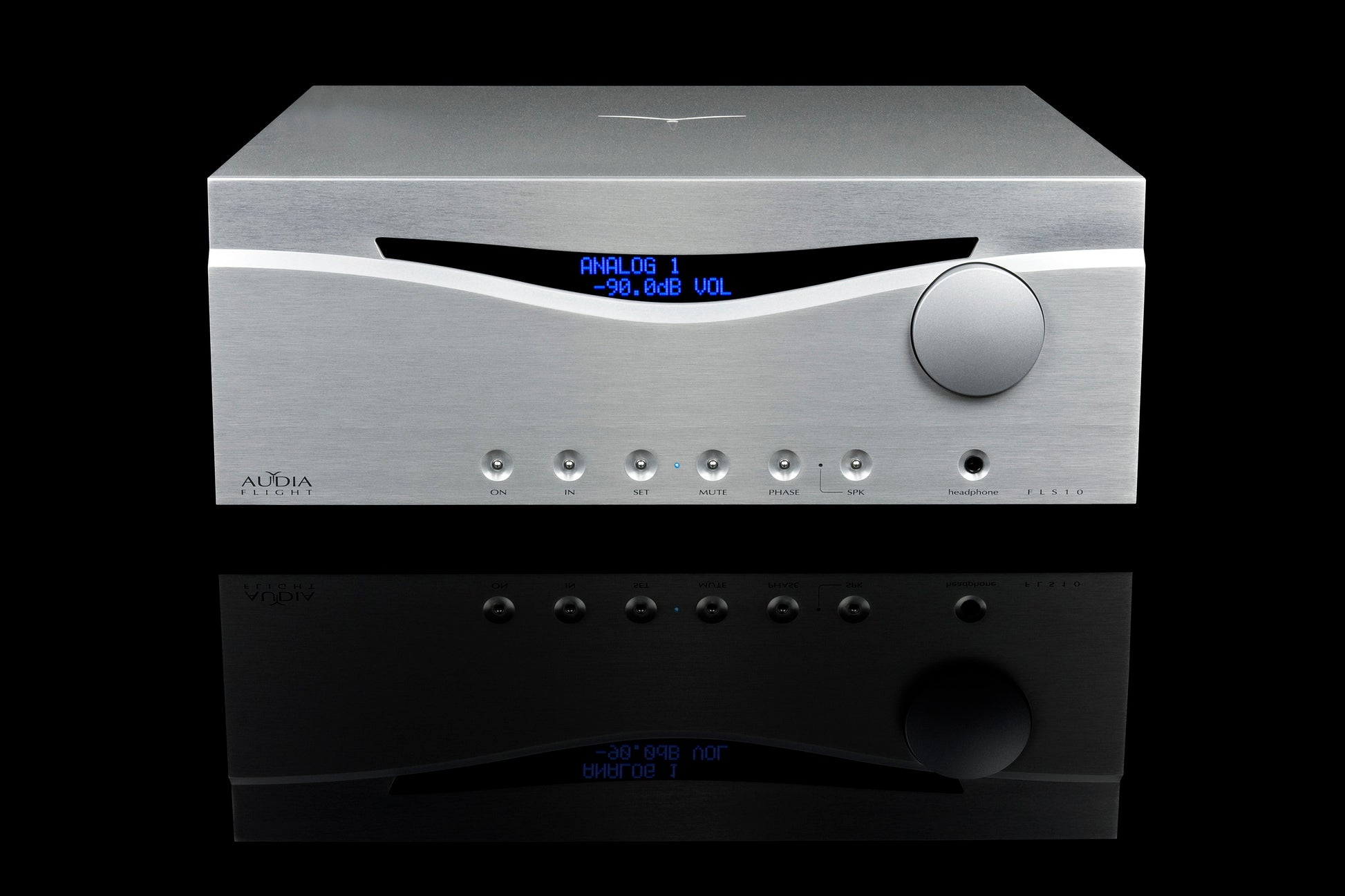

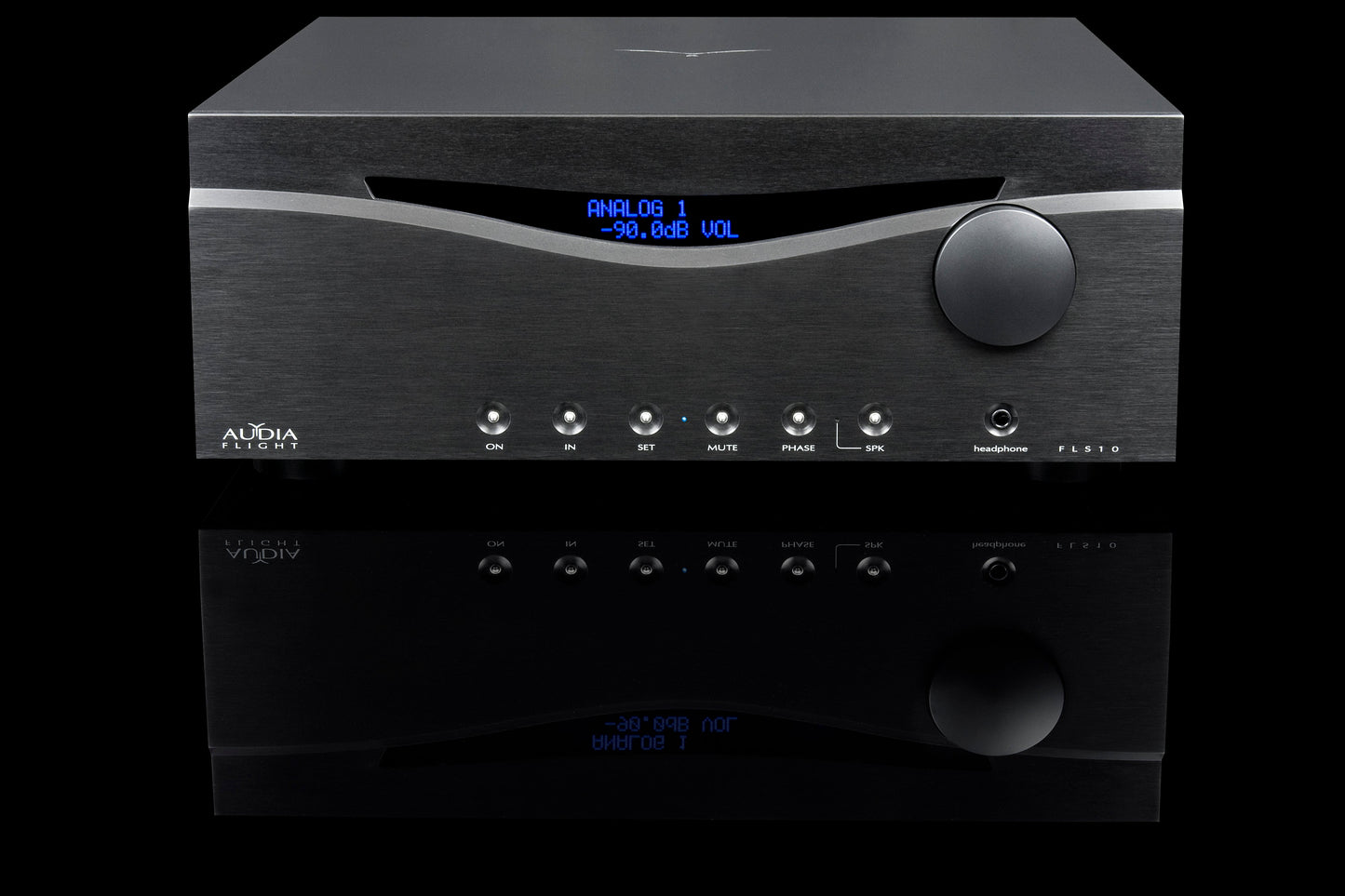

The Audia Flight FLS 10 exemplifies the acoustic truth of high-end audio with its fully balanced circuitry and meticulously selected components. Designed for precision and control, this integrated amplifier ensures an unparalleled auditory experience for discerning listeners.
The Audia Flight FLS 10 integrates advanced engineering principles into its fully balanced design, drastically reducing noise and distortion across its signal path. Utilizing 32 power devices and a robust 2000VA toroidal transformer, it achieves high current delivery to drive low-impedance loudspeakers, resulting in tight control and dynamic range. Critical elements such as a power supply featuring exceptional capacitance (288,000µF) and a low-impedance design ensure consistent power delivery, minimizing fluctuations. With a frequency response reaching 500 kHz, the FLS 10 maintains integrity in both audible and ultrasonic frequencies, supported by a signal-to-noise ratio of 110 dB that enhances the clarity and separation of musical details. The dual mono configuration of the preamplifier stage further ensures that channel crosstalk is minimized, promoting an accurate stereo image. This meticulous attention to detail empowers the FLS 10 to excel in driving demanding loudspeakers, delivering a refined and emotionally engaging listening experience.
Key Features
- Fully Balanced Circuitry: Reduces common-mode noise, providing higher fidelity and greater dynamic range.
- 200Wrms Output Power: Delivers robust amplification for both 8Ω and lower impedance speakers, ensuring full performance across diverse loads.
- Dual Mono Configuration: Minimizes crosstalk and enhances stereo separation, resulting in clearer imaging.
- Extensive Input Options: Accommodates a variety of sources with XLR and RCA inputs, offering flexibility in system integration.
- High Capacitance Power Supply: 288,000µF capacitance stabilizes power delivery, ensuring consistent performance under demanding loads.
- Galvanic Isolation: Protects sensitive components from noise and interference on both digital inputs and asynchronous USB input.
- Adjustable Gain: Gain control allows precise optimization of output levels to suit various source material and listening environments.
Technical Specifications
- Output power per channel Wrms: 200/380/700 (8/4/2 ohm)
- Inputs: 3 unbalanced (RCA), 2 balanced (XLR)
- Outputs: 1 unbalanced (RCA), 1 balanced (XLR), 1 REC unbalanced (RCA)
- Gain range: -90dB / +10dB
- Gain resolution: 0,5dB
- Frequency response (-3dB): 0,3 Hz ÷ 500 KHz
- THD: < 0,05 %
- S/N Ratio: 110 dB
- Input impedance: 47 Kohm
- Damping factor (on 8 ohm): > 650
- Main voltage AC (50-60Hz): 100, 110-115, 220-230, 240 V
- Stand-by power consumption: less than 1 W
- Power consumption (200W RMS @ 8 Ohm both channels): 840W
- Dimensions and weight: 450x180x440mm (W x H x D) - 36kg
- Shipping dimensions and weight: 575x310x545mm (W x H x D) - 46kg
