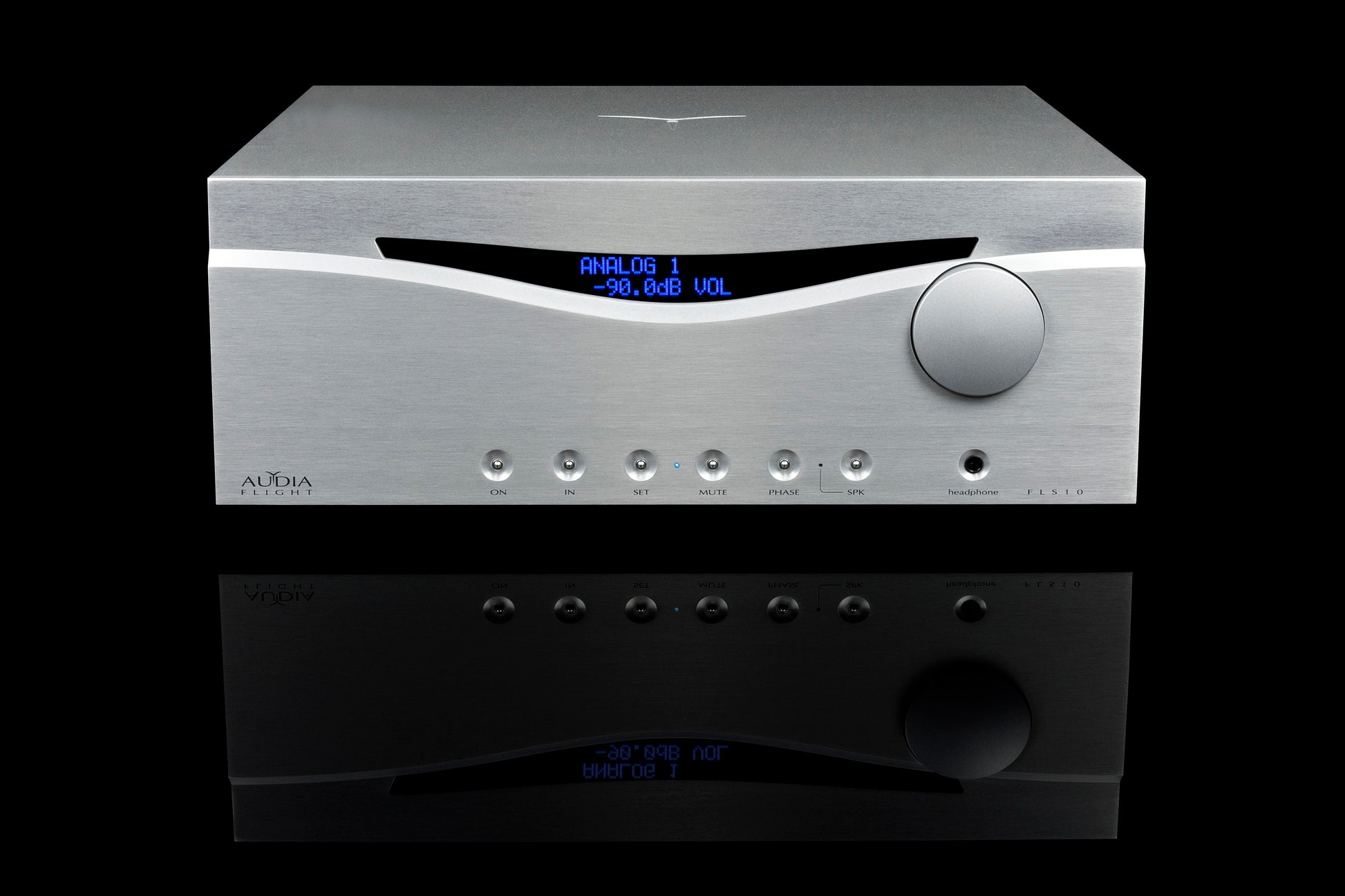

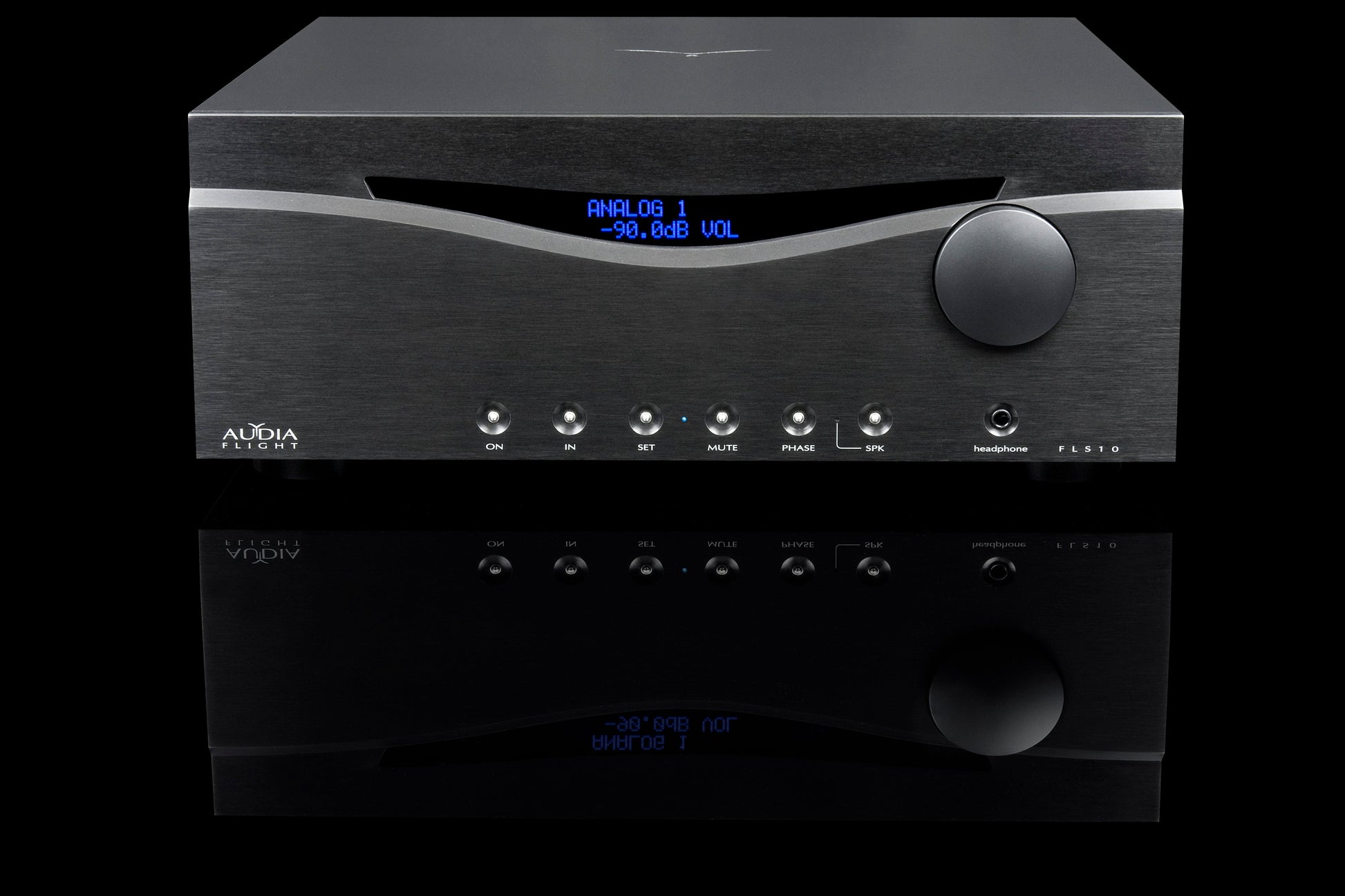

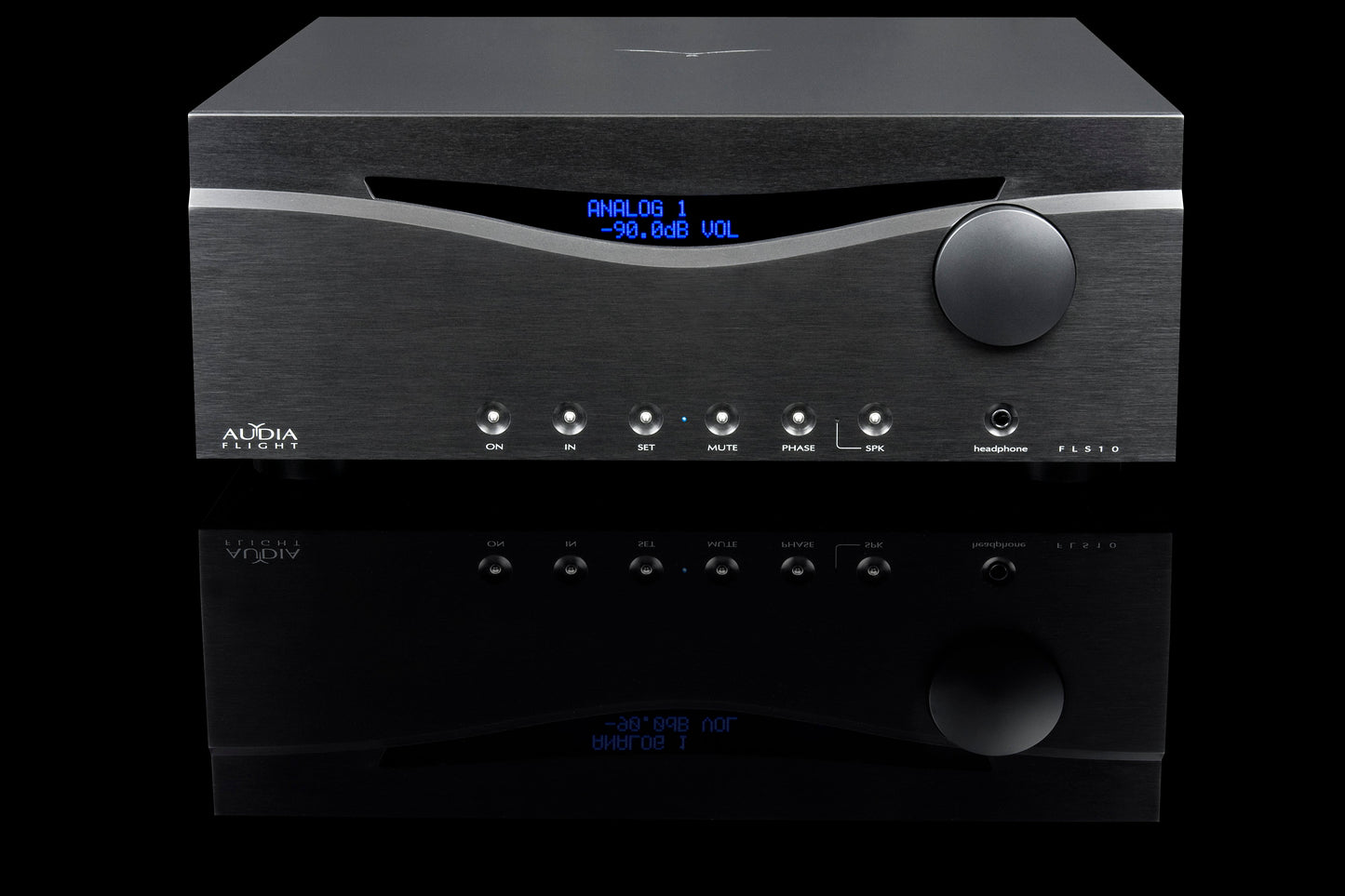

The Audia Flight FLS 10 Integrated Amplifier brings you closer to the original sound with its fully balanced circuitry and advanced power supply. Its precision engineering ensures that every detail is reproduced with accuracy, revealing the acoustic truth in your music.
The Audia Flight FLS 10 is rooted in the principles of audio fidelity, featuring a fully balanced design that minimizes noise and distortion while maximizing dynamic range. At its core is the FLS 4 power amplifier, utilizing high-speed and high-power semiconductor devices to achieve exceptional control over speaker loads. With a power supply comprised of 288,000µF of capacitance, 12 dedicated power supplies, and a 2000VA toroidal transformer, the FLS 10 is engineered to deliver sustained power with low impedance. This architecture allows it to drive challenging loads, down to 2 ohms, while maintaining a damping factor greater than 650, which enhances the control over the movement of speaker drivers. The high-end volume control in a dual mono configuration ensures precision in gain adjustment, providing a gain range from -90dB to +10dB with 0.5dB resolution. Its input and output flexibility, combined with asynchronous USB inputs that support up to 32-bit/384kHz and DSD 512, further solidifies its role as a premium audio solution for discerning listeners.
Key Features
-
Fully Balanced Circuitry: Reduces interference by ensuring signal integrity throughout the amplification process.
-
High-Quality Power Supply: Utilizes 288,000µF capacitance and 12 power supplies to deliver stable power, minimizing distortion and enhancing dynamic response.
-
Advanced Damping Factor: Greater than 650 on 8-ohm loads to maintain control over speaker movement, leading to cleaner bass reproduction.
-
High-End Volume Control: Dual mono configuration provides precise gain adjustments for tailored listening experiences.
-
Asynchronous USB Input: Supports high-resolution audio up to 32-bit/384kHz, providing clarity and detail in digital playback.
-
Flexible Inputs and Outputs: Multiple RCA and XLR inputs ensure compatibility with a wide range of audio sources and systems.
-
Low Standby Power Consumption: Less than 1W keeps energy usage efficient, promoting sustainability in high-performance audio systems.
Technical Specifications
- Output power per channel Wrms: 200/380/700 (8/4/2 ohm)
- Inputs: 3 unbalanced (RCA), 2 balanced (XLR)
- Outputs: 1 unbalanced (RCA), 1 balanced (XLR), 1 REC unbalanced (RCA)
- Gain range: -90dB / +10dB
- Gain resolution: 0.5dB
- Frequency response (-3dB): 0.3 Hz ÷ 500 KHz
- THD: < 0.05 %
- S/N Ratio: 110 dB
- Input impedance: 47 Kohm
- Damping factor (on 8 ohm): > 650
- Main voltage AC (50-60Hz): 100, 110-115, 220-230, 240 V
- Stand-by power consumption: less than 1 W
- Power consumption (200W RMS @ 8 Ohm both channels): 840W
- Dimensions and weight: 450x180x440mm (W x H x D) - 36kg
- Shipping dimensions and weight: 575x310x545mm (W x H x D) - 46kg
