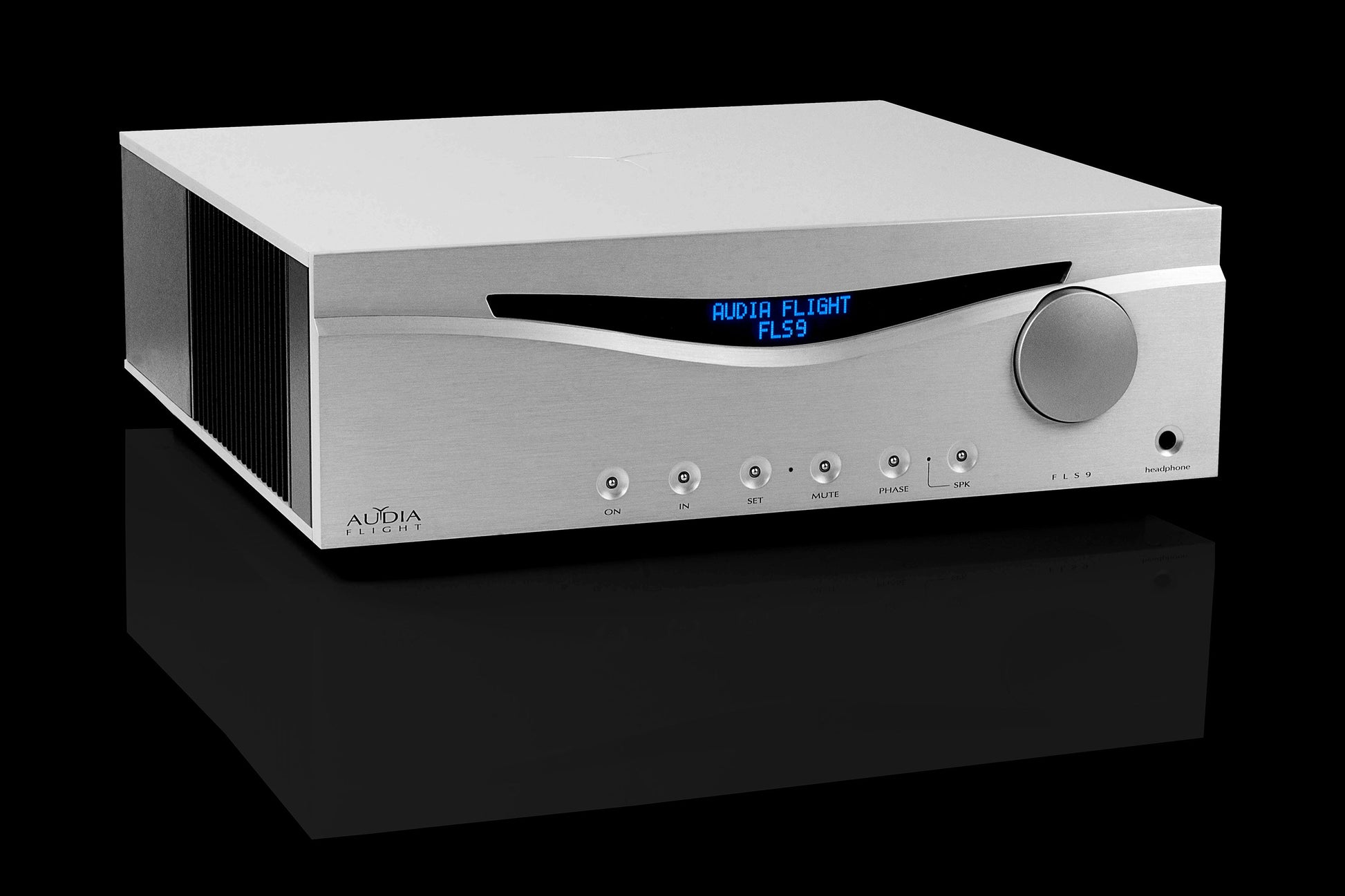

The Audia Flight FLS 9 delivers unparalleled audio fidelity through a fully balanced design, providing both precision and control over dynamic range. Its advanced power supply and output stage optimize audio performance for a wide range of speaker impedances.
The Audia Flight FLS 9 is engineered with a fully balanced preamplifier stage to mitigate noise and interference, resulting in a pure signal path from input to output. The amplifier utilizes a topology featuring 12 high-grade power devices in a multi-channel configuration, ensuring that the performance characteristics remain consistent across various speaker impedances, down to 2 ohms. The dual power supply circuits, designed for low impedance and noise, work alongside high-quality capacitors rated at 120,000 microfarads to deliver sustained power without distortion. Additionally, the use of a 1000 W shielded toroidal transformer minimizes electromagnetic interference (EMI), while features like a damping factor greater than 500 contribute to exemplary bass control. The incorporation of vibration control pads further enhances audio clarity by reducing resonance within the chassis.
Key Features
- Fully Balanced Preamplifier: Reduces noise and maintains signal integrity.
- High-Grade Power Devices: Ensures fast response and high reliability.
- Low Impedance Power Supply: Allows stable performance across various loads.
- High-Quality Capacitors: Provide sustained power delivery for dynamic audio.
- Shielded Toroidal Transformer: Minimizes EMI for clean audio signals.
- Exceptional Damping Factor: Achieves tight control over speaker movement.
- External Upgrade Slots: Allows easy installation of optional boards for expanded functionality.
- High-Resolution Digital Inputs: Supports up to 32-bit/384kHz and DSD 512 for advanced audio processing.
- Vibration Control Pads: Enhance stability and minimize audio artifacts.
Technical Specifications
- Output Power per Channel (Wrms): 150/290/500 (8/4/2 ohm)
- Inputs: 3 unbalanced (RCA), 2 balanced (XLR)
- Outputs: 1 unbalanced (RCA), 1 balanced (XLR), 1 REC unbalanced (RCA)
- Gain Range: -90dB / +10dB
- Gain Resolution: 0.5dB
- Frequency Response (-3dB): 0.3 Hz ÷ 500 KHz
- THD: < 0.05%
- S/N Ratio: 110 dB
- Input Impedance: 47 Kohm
- Damping Factor (on 8 ohm): > 500
- Main Voltage AC (50-60Hz): 100, 110-115, 220-230, 240 V
- Stand-by Power Consumption: < 1 W
- Power Consumption (150W RMS @ 8 Ohm both channels): 650W
- Dimensions and Weight: 450x150x440mm (W x H x D) – 25.5 kg
- Shipping Dimensions and Weight: 570x280x560mm (W x H x D) - 31kg
