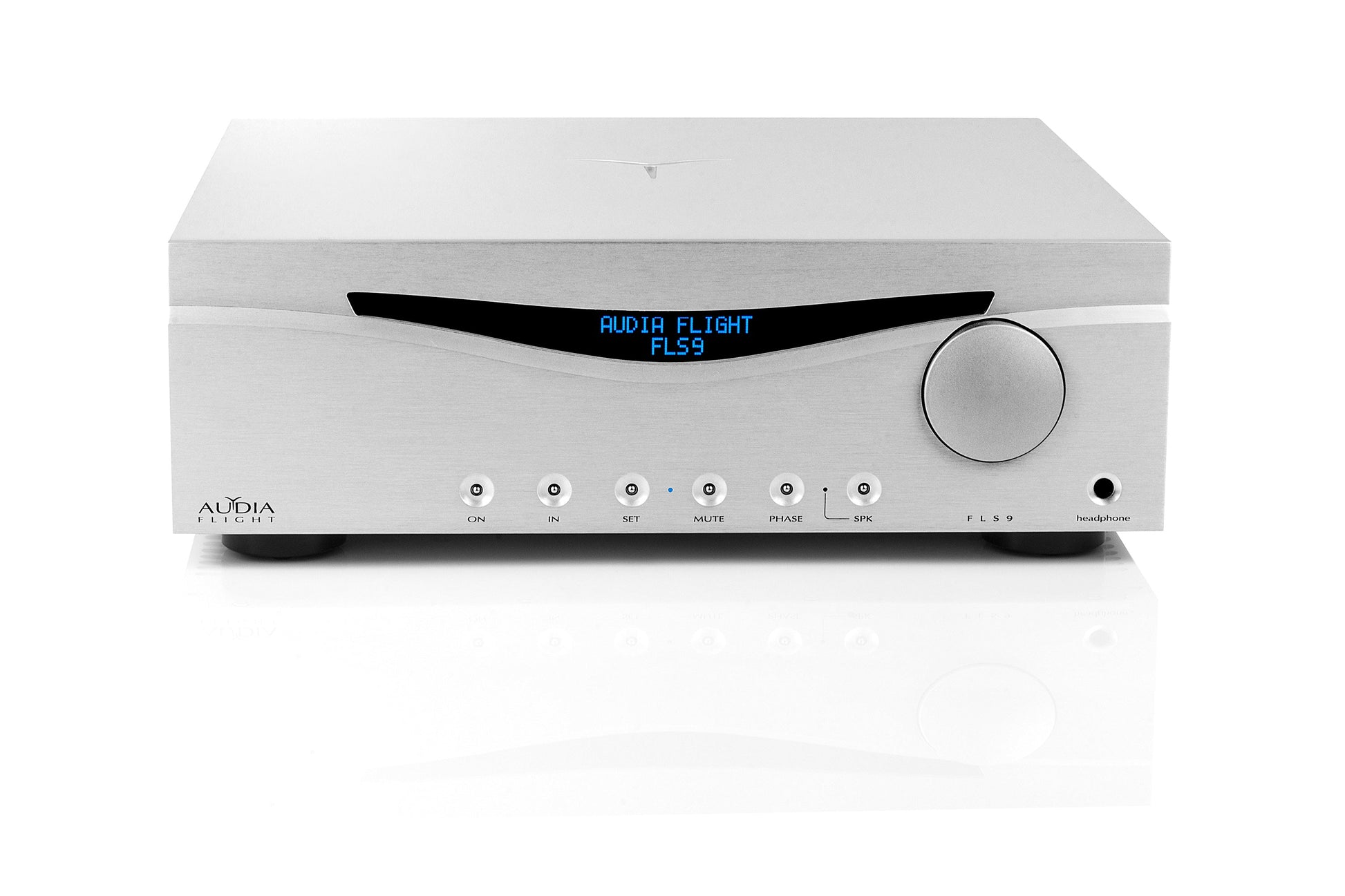

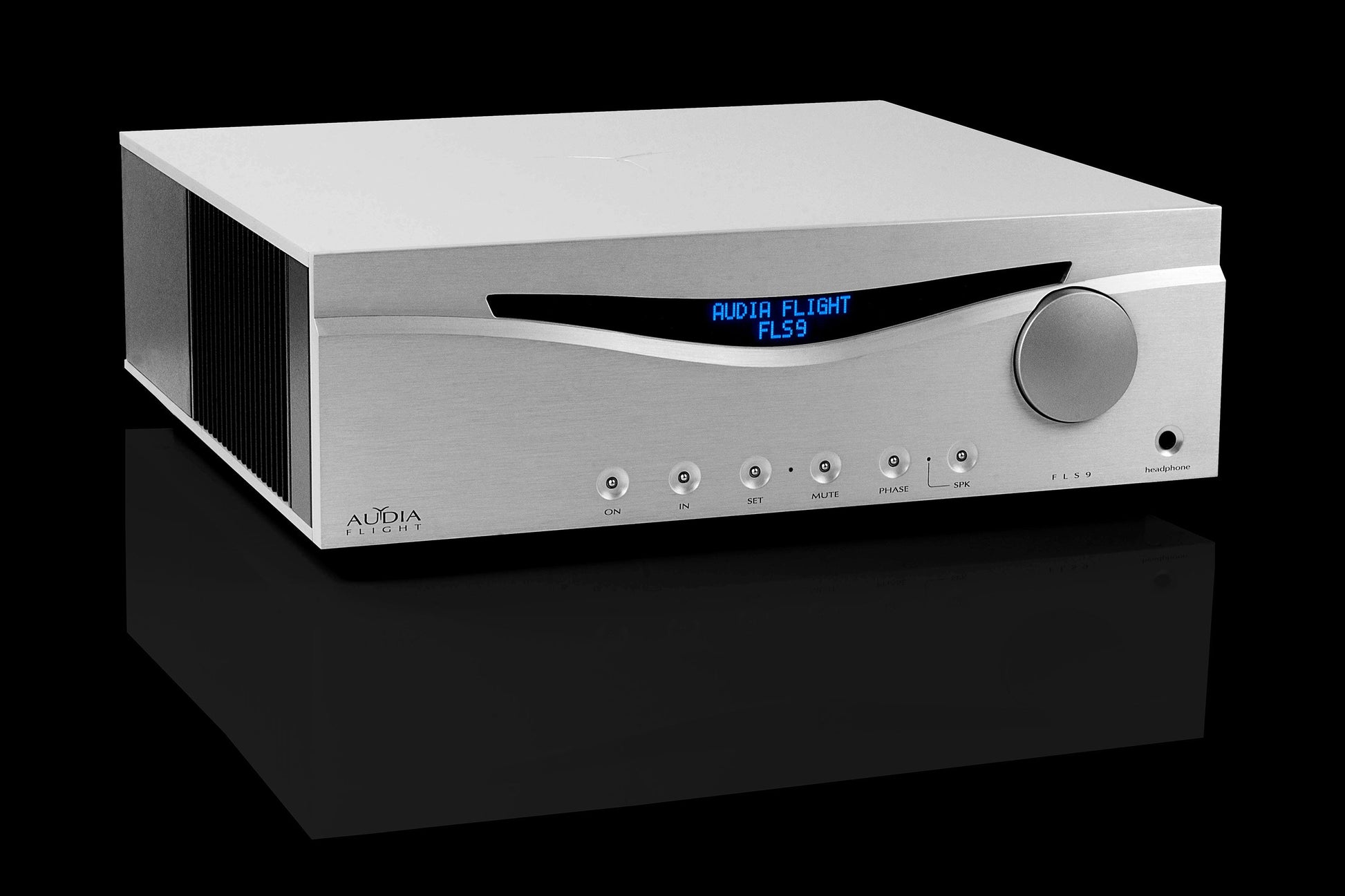

The Audia Flight FLS 9 leverages fully balanced architecture for unrivaled signal integrity. Its precision-engineered components ensure minimal distortion while maximizing power transfer to your speakers.
The Audia Flight FLS 9 integrated amplifier utilizes a fully balanced preamplifier stage, significantly reducing the noise and distortion that can arise from unbalanced designs. Its power channels, equipped with 12 selected power devices and 8 power supply circuits, deliver robust performance even when driving complex loads down to 2 ohms. The amplifier features a high-quality toroidal transformer which provides low impedance and noise due to its design efficiency. Additionally, specialized capacitors rated at 120,000 µF enhance transient response while maintaining stability. The damping factor greater than 500 at 8 ohms allows for superior control over speaker motion, providing clarity and precision in audio reproduction. Special composite pads with NBR rubber spheres serve to isolate vibrations, ensuring that sound quality remains pristine regardless of the operating environment.
Key Features
- Fully Balanced Design: Virtually eliminates noise and distortion, preserving the integrity of audio signals.
- High Power Output: With 150W RMS at 8 ohms and capability to drive loads down to 2 ohms, it provides substantial power for a variety of loudspeakers.
- Advanced Power Supply: Eight power supply circuits with low impedance yield high efficiency and minimal noise, enhancing overall performance.
- Precision Capacitors: 120,000 µF capacity capacitors support transient responses necessary for high fidelity audio.
- Galvanically Isolated Inputs: USB and digital inputs feature isolation to prevent ground loop interference and reduce digital noise.
- Robust Damping Factor: Greater than 500 at 8 ohms, ensuring tight control over speaker driver movement for accurate sound reproduction.
- Vibration Control Pads: Designed to mitigate interference from external vibrations that could affect sound clarity.
Technical Specifications
- Output power per channel Wrms: 150/290/500 (8/4/2 ohm)
- Inputs: 3 unbalanced (RCA), 2 balanced (XLR)
- Outputs: 1 unbalanced (RCA), 1 balanced (XLR), 1 REC unbalanced (RCA)
- Gain range: -90dB / +10dB
- Gain resolution: 0.5dB
- Frequency response (-3dB): 0.3 Hz ÷ 500 KHz
- THD: < 0.05%
- S/N Ratio: 110 dB
- Input impedance: 47 Kohm
- Damping factor (on 8 ohm): > 500
- Main voltage AC (50-60Hz): 100, 110-115, 220-230, 240 V
- Stand-by power consumption: less than 1 W
- Power consumption (150W RMS @ 8 Ohm both channels): 650W
- Dimensions and weight: 450x150x440mm (W x H x D) – 25.5 kg
- Shipping dimensions and weight: 570x280x560mm (W x H x D) - 31kg
