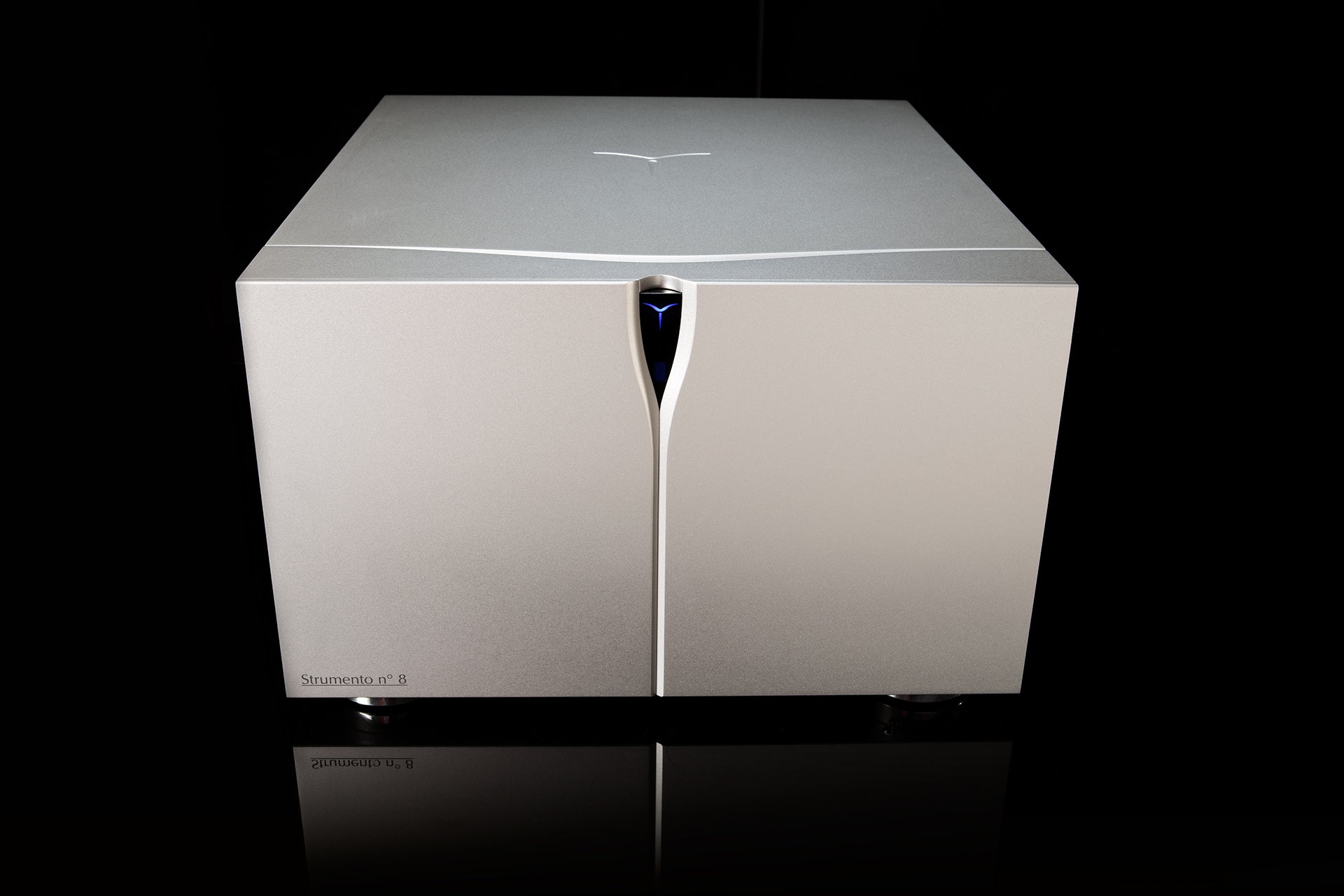

The Audia Flight Strumento N°8 Mono-block Power Amplifier delivers a near-perfect representation of sound, free from distortion and coloration. Its exacting design prioritizes performance and fidelity, making it a pinnacle of acoustic truth.
The Audia Flight Strumento N°8 Mono-block Power Amplifier leverages advanced engineering principles to achieve exceptional audio performance. At its core lies an entirely class A current-feedback circuitry, which minimizes distortion by allowing the output stage to operate in a linear region at all times. The dual power supplies support a single channel, reducing crosstalk and further isolating audio paths, while the 3000VA custom audio transformer offers robust power handling capabilities. The use of ultra-fast rectifiers and low impedance capacitors in the power supply enhances the amplifier's transient response, ensuring that it can accurately reproduce micro-dynamics in music. Moreover, the mechanical design considers decoupling transformers from the audio circuit chassis, effectively minimizing vibration and electromagnetic interference, thus preserving signal integrity.
Key Features
- Class A Current-Feedback Circuitry: Operates with minimal distortion by ensuring linear output across all frequencies, resulting in faithful sound reproduction.
- Dual High-Current Power Supplies: Support a single channel to optimize performance, enhance voltage stability, and reduce noise interference.
- 3000VA Custom Audio Transformer: Provides ample power for dynamic peaks, ensuring there is no compromise in audio fidelity during playback.
- Ultra-Fast Rectifiers: Enhance transient response and reduce power supply sag, which preserves signal clarity during rapid musical passages.
- Decoupled Transformer Design: Isolates power transformers from the audio circuit, significantly minimizing vibration and electromagnetic interference.
- Precision Engineered Capacitors: The use of 190,400µF ultra-low impedance capacitors contributes to unparalleled power supply stability, improving overall performance.
- Custom Printed Circuits: Ensures high-grade surface copper design, maximizing conductivity and reducing signal loss.
Technical Specifications
- Power Output: Up to 2000 Watts
- Frequency Response: Bandwidth greater than 1MHz
- Gain Stage Components: Class A current-feedback circuitry
- Power Supply Capacitors: 28 x 6,800µF 63V ultra-low impedance capacitors
- Main Transformers: Two 150VA toroidal audio transformers and one 15VA toroidal transformer for logic control
- Output Stage Transformer: 3000VA custom audio transformer
- Dimensions: Custom dimensions to fit bespoke aluminum chassis
