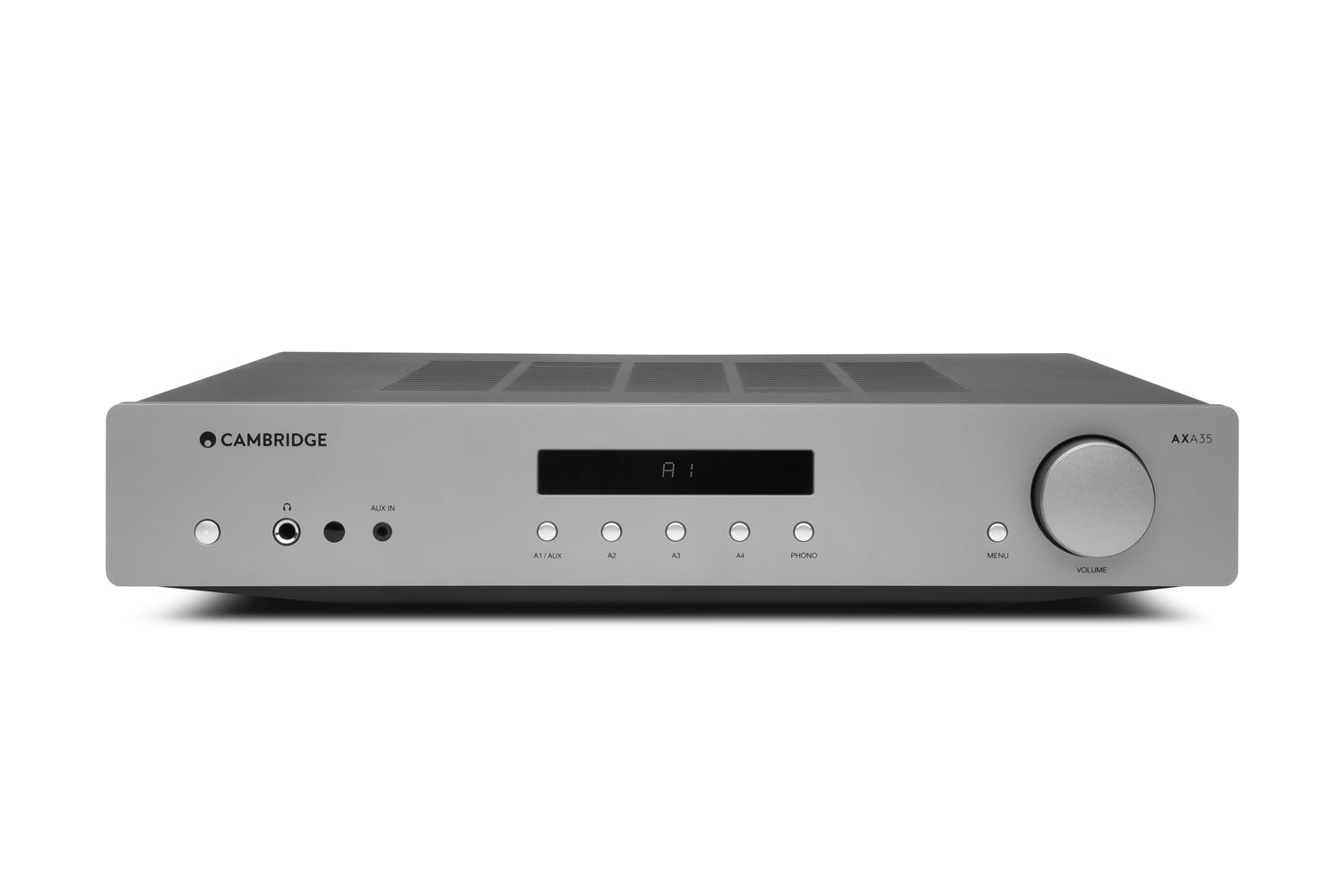

Cambridge Audio AXA35 Integrated Amplifier with Built-In Phono Stage

The Cambridge Audio AXA35 Integrated Amplifier is a testament to acoustic integrity, providing pure audio reproduction with a built-in phono stage for vinyl enthusiasts. Its design promotes optimal sound delivery, merging classic analog warmth with modern flexibility.

---

The AXA35 operates on a toroidal transformer design, which minimizes electromagnetic interference and enhances power efficiency, yielding a clean and steady power output of 35 Watts per channel into 8 Ohms. The low total harmonic distortion (THD) of <0.01% at 1kHz ensures that the output signal remains true to the original audio source, while the frequency response of 5Hz to 50kHz accommodates a wide range of audio content. The integrated moving magnet phono stage allows for direct connection to turntables, maintaining signal integrity. Adjustability is key; the shelveable bass and treble controls operate at +/- 10dB at discrete frequencies, enabling acoustic adjustment tailored to personal preference and room acoustics.

Key Features

• The toroidal transformer design enhances power efficiency and reduces electrical noise, resulting in cleaner sound reproduction.
• A built-in phono stage designed specifically for moving magnet cartridges allows for optimal connection to turntables, preserving audio fidelity.
• Separate bass and treble controls provide precision in sound tuning, adapting playback to listener preference and environmental acoustics.
• The use of high-quality hi-fi binding posts ensures secure, high-performance speaker connections, maximizing audio transmission integrity.
• A 6.35mm headphone jack delivers high-quality audio for personal listening without disturbing others, providing flexibility in usage.
• A USB power output enables connection of external devices and future technical upgrades, enhancing the system's versatility.

Technical Specifications

• Power output: 35 Watts (into 8 Ohms)
• Total Harmonic Distortion (unweighted): <0.01% @ 1kHz, 80% rated power; <0.15% 20Hz - 20kHz, 80% rated power
• Frequency response (-3dB): 5Hz - 50kHz
• Signal-to-noise ratio (ref 1W): >82dB (unweighted)
• Input impedances: 47k Ohms
• Power amp damping factor: > 50
• Maximum power consumption: 260W
• Bass/Treble controls: Shelving, ultimate boost/cut +/- 10dB @ 100Hz and 10kHz
• Standby power consumption: <0.5W
• Inputs: 4x RCA, 1x Phono, 1x 3.5mm Aux input (front panel)
• Outputs: Speakers, Rec Out, USB 5V power
• Dimensions (HxWxD): 83 x 430 x 335mm (3.3 x 16.9 x 13.2”)
• Weight: 5.6kg (12.3lbs)
• In the box: AXA35 Integrated Amplifier, Power Cable, Remote Control, 2 x AAA Batteries
