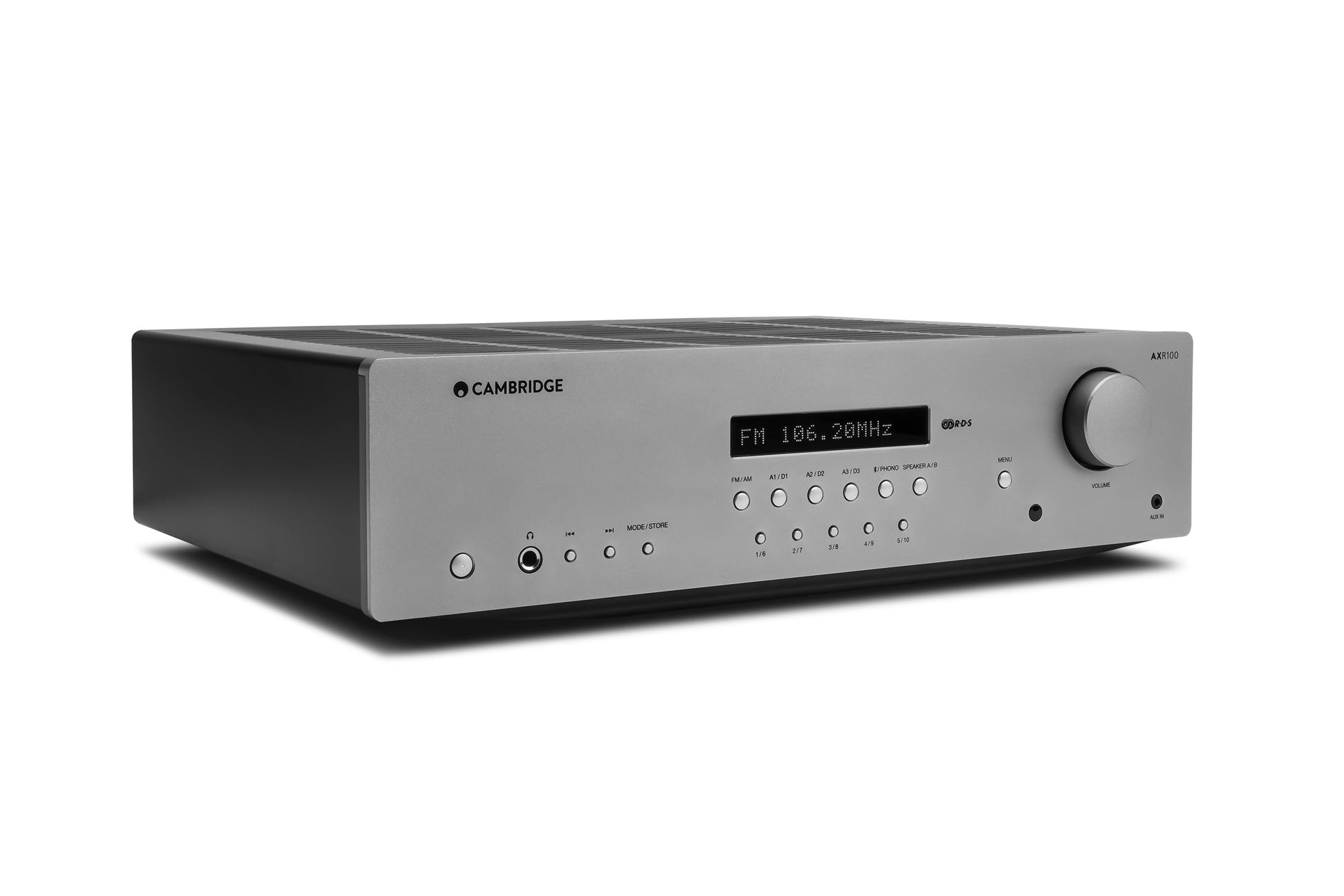

The Cambridge Audio AXR100 Stereo Receiver delivers uncolored, accurate audio across various sources. With 100 watts per channel and meticulously designed circuitry, it provides the acoustic fidelity essential to music appreciation.
The AXR100 utilizes robust Class AB amplification, providing high power output while maintaining low distortion rates. This is achieved through careful circuitry design that minimizes signal interference and maximizes the efficiency of audio signal processing. The frequency response ranges from 5Hz to 50kHz, ensuring that both deep bass and high frequencies are reproduced accurately. The inclusion of a built-in moving magnet phono stage allows direct connection of turntables, enhancing playback of vinyl records without the need for additional components, reinforcing the unit's emphasis on fidelity. Additionally, with a signal-to-noise ratio exceeding 82dB, listeners can expect a clean, noise-free auditory experience.
Key Features
- 100 Watts per Channel: Delivers sufficient power to drive various speaker configurations, ensuring clear audio even at high volumes without distortion.
- Built-in MM Phono Stage: Simplifies the connection of turntables, enabling high-quality vinyl playback by optimizing impedance and signal levels for moving magnet cartridges.
- Bluetooth 5.0 Connectivity: Allows for lossless audio streaming with improved range and latency, supporting full CD-quality audio over wireless connections.
- Comprehensive Input Options: Includes multiple RCA inputs, digital coaxial, and optical inputs for versatile connectivity with various audio sources, ensuring flexibility in system setup.
- FM/AM Tuner: Offers access to over-the-air radio broadcasts with a signal-to-noise ratio of 60dB, enhancing the listening experience for radio enthusiasts with minimal interference.
- Advanced Bass/Treble Controls: Facilitates tailored sound adjustment with equalization capabilities for low and high frequencies, promoting personalized listening experiences.
- Compact Design: Fits seamlessly into existing audio setups with a minimalist aesthetic while maintaining high-performance audio delivery.
Technical Specifications
- Power Output: 100 watts (into 8Ω)
- Total Harmonic Distortion (THD): <0.01% @ 1kHz (80% of rated power), <0.15% 20Hz - 20kHz (80% of rated power)
- Frequency Response: -1dB from 5Hz - 50kHz
- Signal to Noise Ratio: >82dB (unweighted, ref 1W)
- Input Impedance: 47k ohms
- Damping Factor: >50
- Standby Power Consumption: <0.5W
- Max Power Consumption: 550W
- Bass/Treble Controls: Shelving, ultimate boost/cut +/- 10dB @ 100Hz and 20kHz
- Subwoofer Output: 200Hz 2nd order, L+R Level follows volume setting
- Digital Inputs: PCM 16-24-bit S/P DIF Co-axial 32-192kHz, TOSlink Optical 32-192kHz
- Dimensions: 110 x 430 x 340mm (4.3 x 16.9 x 13.4”)
- Weight: 8.1kg (17.8lbs)
- Bluetooth: 5.0 A2DP/AVRCP supporting SBC
- Tuner Bands: European AM (522-1629kHz), FM (87.5-108MHz) / AM (540 - 1700kHz)
- Signal to Noise (Tuner): 60dB typical (FM)
- Distortion (Tuner): <0.4% @ 1kHz 50kHz deviation (FM mono), <0.6% @ 1kHz 50kHz deviation (FM stereo)
