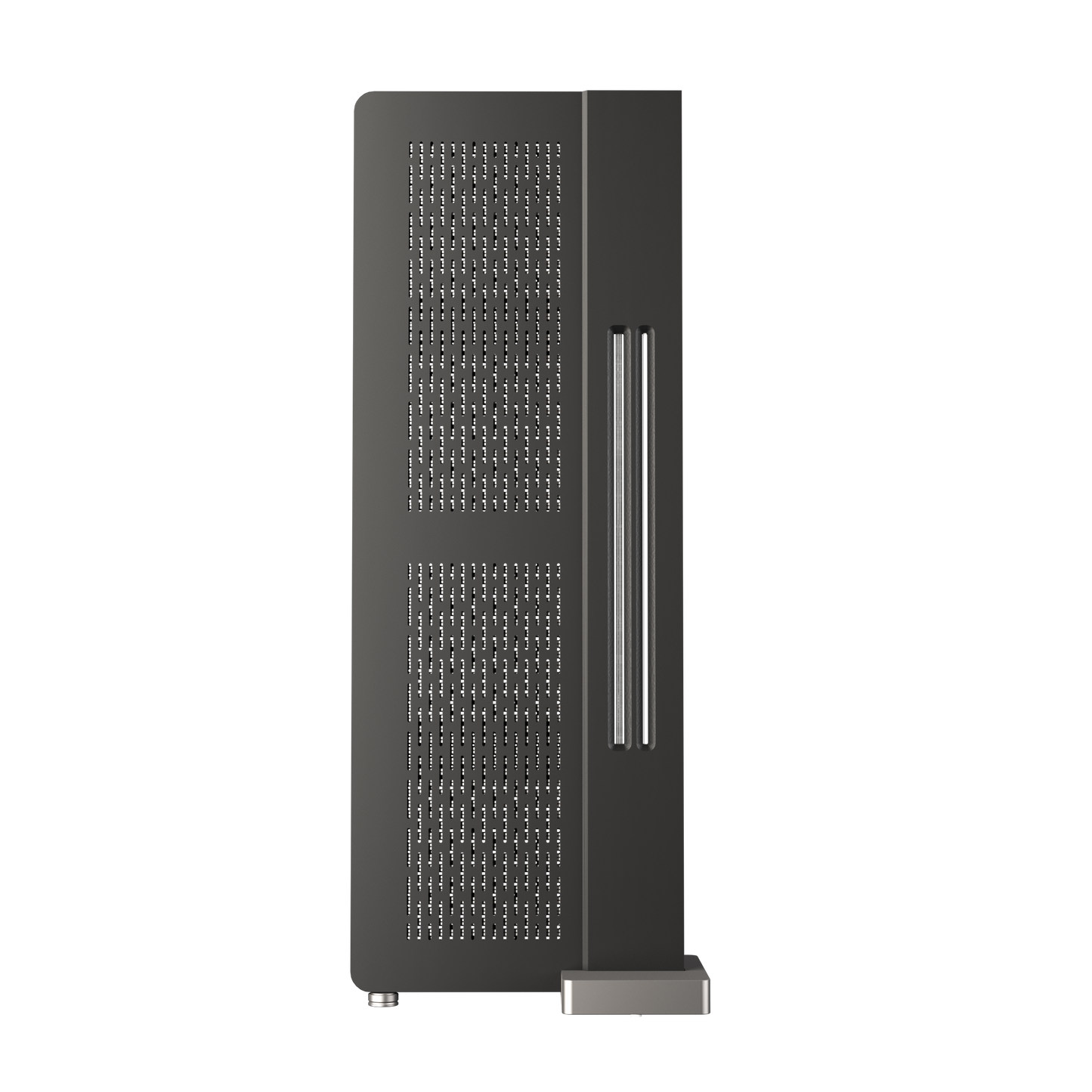

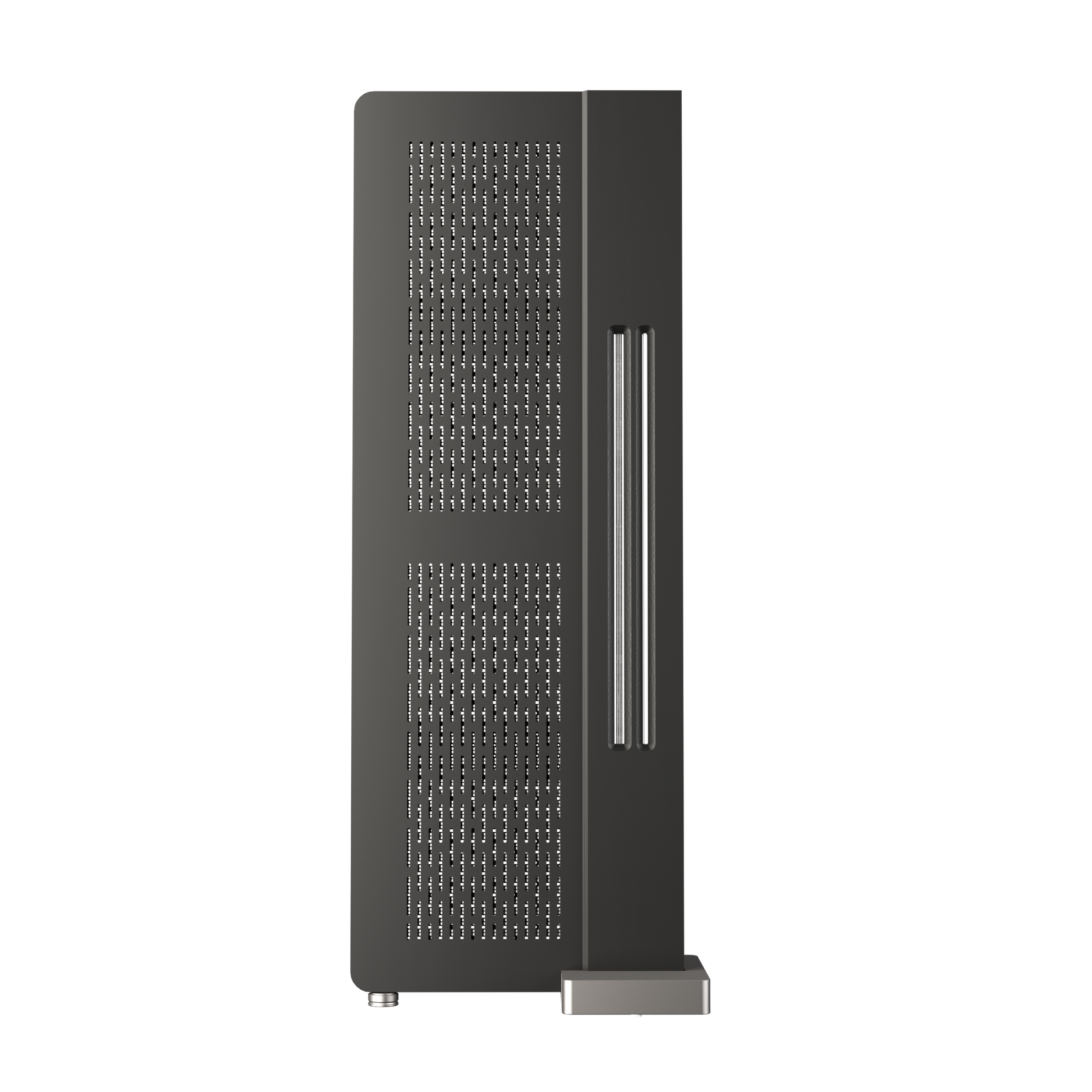

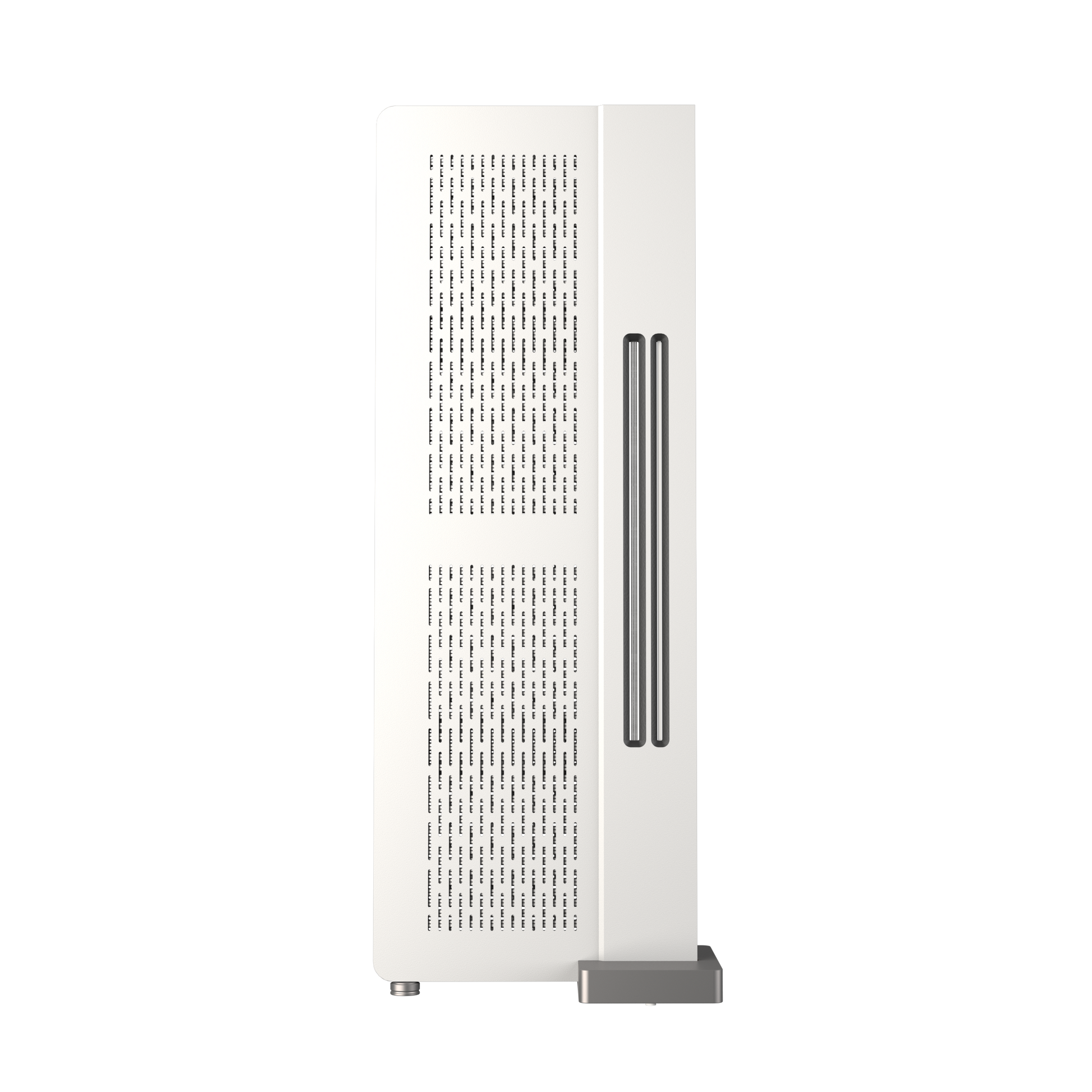

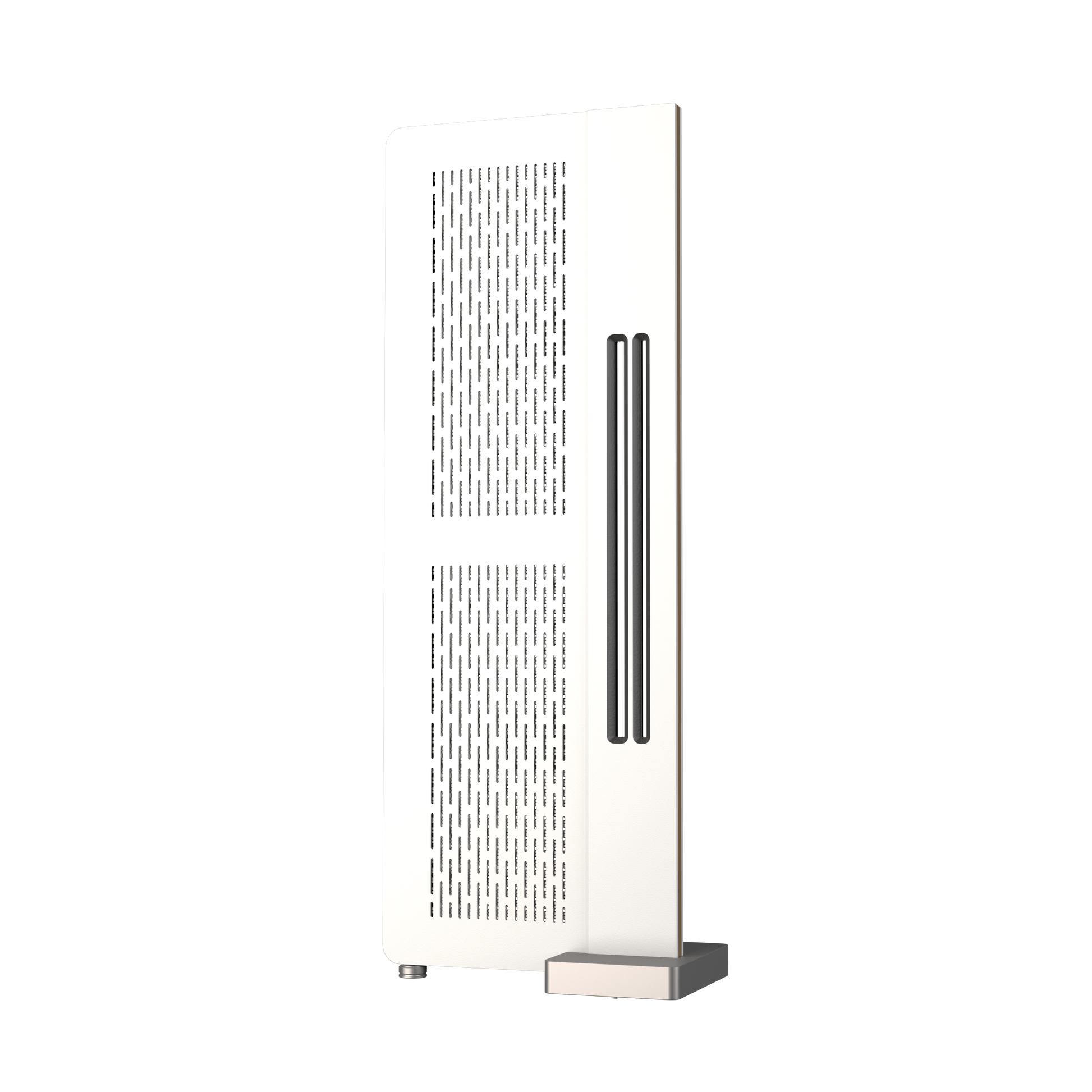

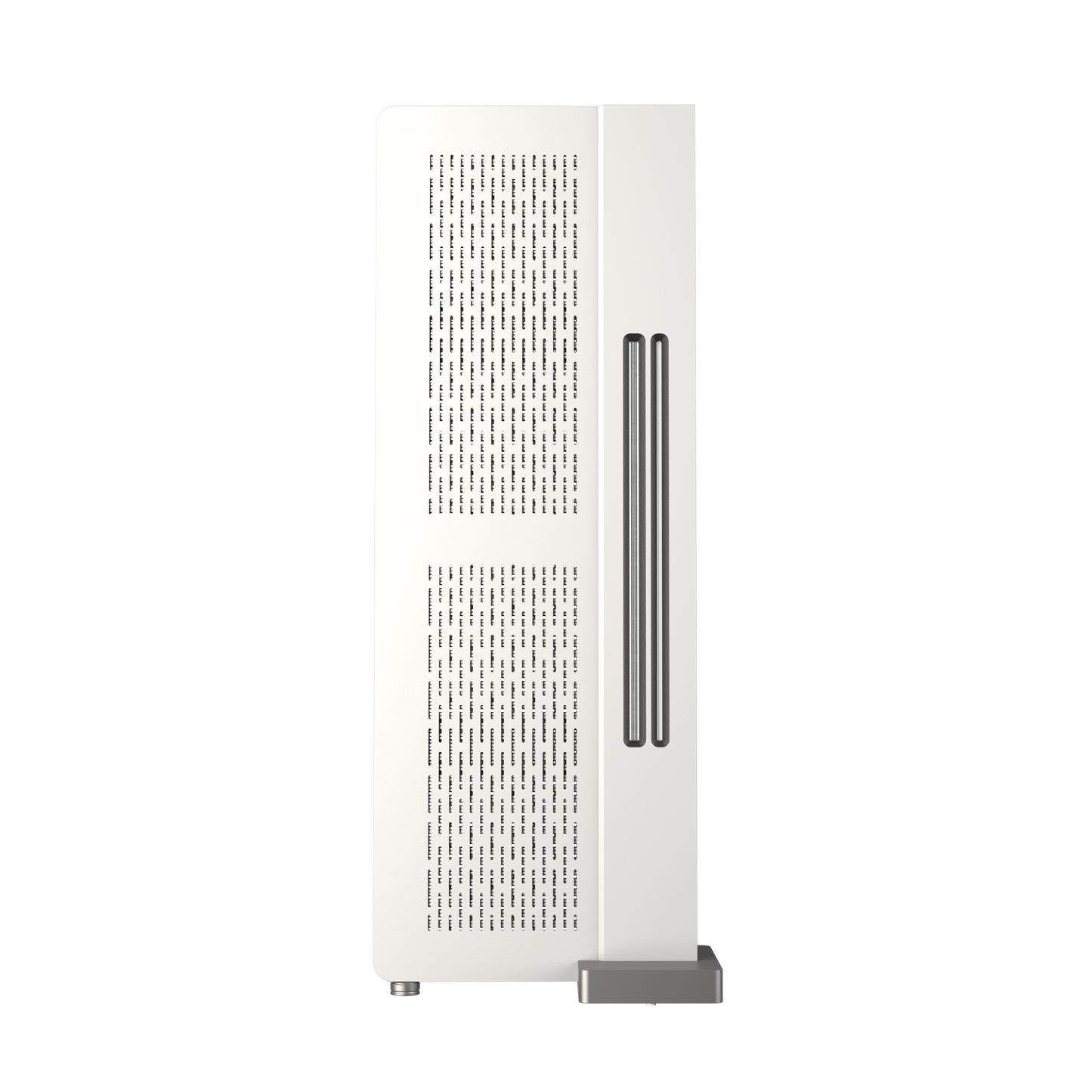

Diptyque Audio Reference

Experience the Acoustic Truth with Diptyque Audio Reference loudspeakers, designed for pure sound reproduction. This system combines innovative isodynamic technology with meticulous engineering to achieve unparalleled audio fidelity.

---

The Diptyque Audio Reference utilizes a groundbreaking 'Crossed Push Pull' technology to enhance low-frequency performance and eliminate distortion. Each bass driver employs two independent coils—one oriented vertically and the other horizontally—enabling precise control over a 12 µm mylar membrane. The dual-coil system allows for rapid and accurate vibration of the membrane, resulting in linear low frequencies with exceptional efficiency. In the midrange, a newly engineered 20mm isodynamic ribbon delivers a broad frequency response from 600 to 7000 Hz, while an 8mm aluminum super tweeter extends the frequency range well beyond 24000 Hz. This combination ensures a cohesive soundstage, replicating audio with the naturalness and transparency that true audiophiles seek.

Key Features

• Crossed Push Pull Technology: Enhances low-frequency performance using dual coil systems for superior efficiency and linearity.
• 12 µm Mylar Membrane: Allows for rapid vibrations, producing deep bass without deformation.
• Wide Midrange Coverage: The 20mm isodynamic ribbon covers a frequency range of 600 to 7000 Hz, ensuring a seamless transition between frequencies.
• Ultra High-Frequency Extension: An 8mm aluminum super tweeter reproduces frequencies beyond 24000 Hz for crisp and detailed high notes.
• High Sensitivity: With a sensitivity of 89 dB, this loudspeaker requires minimal power to deliver extensive output.

Technical Specifications

• Type: 3.5 ways
• Sensitivity: 89 dB/1W/1m
• Impedance: 4 Ohms
• Bandwidth: 22 - 24000 Hz
• Recommended amplifier power handling: 300W (> 60 W)
• Dimensions (H x W x D): 1800 x 650 x 45 mm
• Weight: 82 kg
