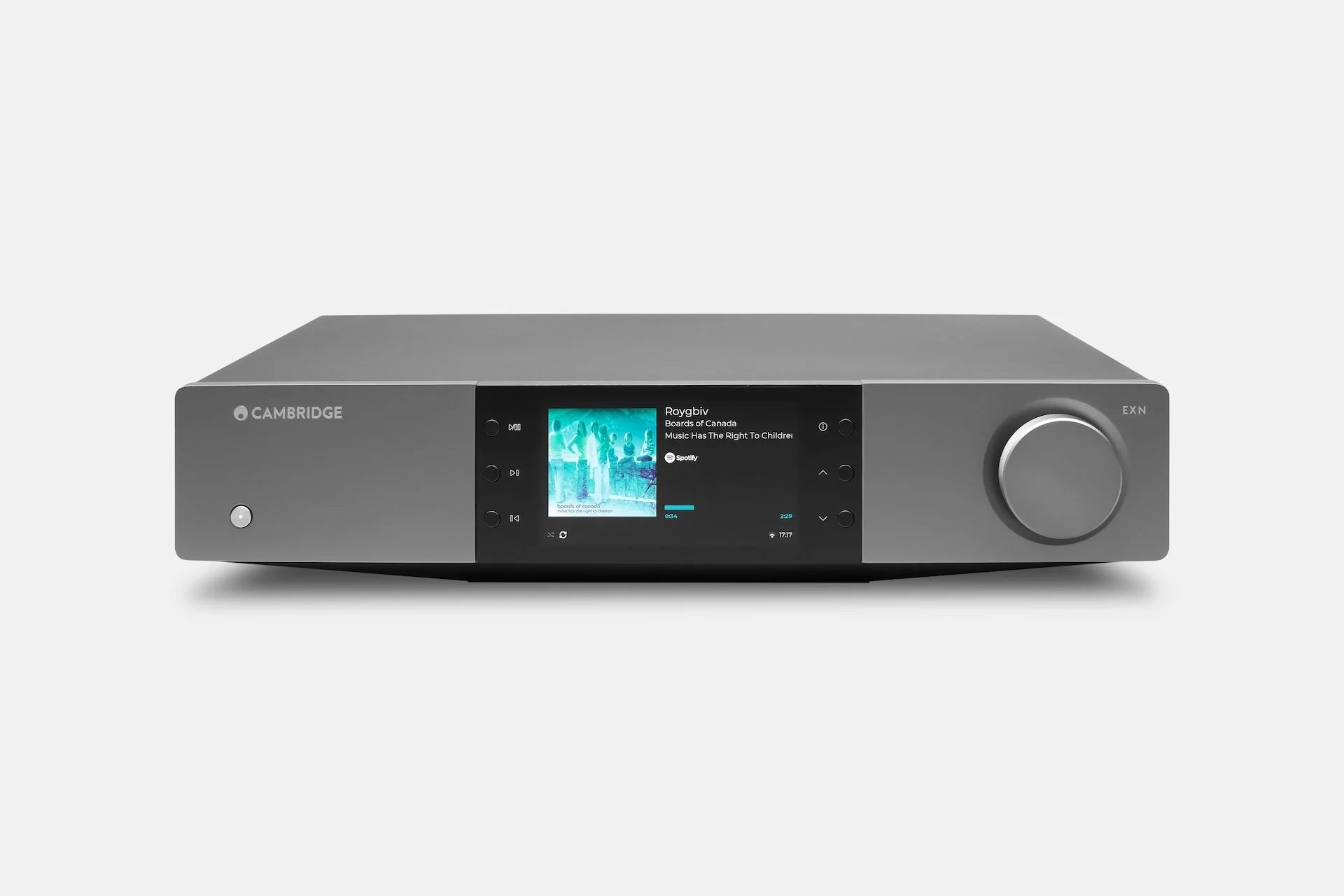

The Cambridge Audio EXN100 Network Player represents a pinnacle of digital audio engineering designed for audiophiles seeking precision in sound reproduction. Experience music with breathtaking accuracy, leveraging cutting-edge digital technologies and meticulously crafted analog components.
At the core of the EXN100 is the ESS ES9028Q2M DAC, a component known for its capability to deliver high-fidelity audio reproduction. The architecture of the unit prioritizes an optimized signal path, continuously minimizing distortion and maximizing clarity, which is essential for achieving a broad and detailed soundstage. The unit employs asynchronous USB input, effectively reducing jitter to preserve the integrity of the audio being processed. Its digital signal processing utilizes advanced algorithms to support high-resolution audio formats up to 32-bit/768kHz and DSD512, ensuring that every nuance of the recording is captured. The robust analog outputs benefit from improved engineering, resulting in superior signal separation and soundstage expansion, making the EXN100 a benchmark in network players.
Key Features
- Precision DAC: The ESS ES9028Q2M DAC minimizes noise and distortion, enabling precise audio reproduction with ultra-low total harmonic distortion (< 0.0005%).
- High-Resolution Audio Support: Capable of processing audio at 32-bit/768kHz PCM and DSD512, ensuring the playback of studio-quality recordings without degradation.
- Comprehensive Connectivity: Features multiple inputs including USB Type-B, HDMI eARC, and S/PDIF, allowing versatile integration into various audio setups.
- Advanced Streaming Capability: Uses the fourth-generation StreamMagic platform for seamless access to a wide range of high-resolution audio services like TIDAL and Qobuz.
- Bluetooth 5.0: Supports aptX HD and other codecs, providing lossless streaming without compromising sound quality.
- Multi-Room Audio: Built-in support for Google Cast, Apple AirPlay 2, and Roon enables flexible audio distribution across multiple rooms.
- High-Resolution Display: 4.76" IPS TFT display provides clear visibility of track information, adding an aesthetic dimension to the audio experience.
Technical Specifications
- DAC: ESS ES9028Q2M
- Preamp mode: Yes
- Streammagic version: Gen 4
- Display screen: 4.76" IPS TFT - 1280 x 569
- USB drive input: 1 x USB 2.0
- S/PDIF Toslink input: 1
- S/PDIF Coaxial input: 1
- Asynchronous USB input: 1
- Bluetooth: 5.0 with aptX HD
- HDMI eARC input: 1 (eARC compatible)
- Analogue RCA outputs: 1 Pair
- S/PDIF output: 1
- Toslink output: 1
- Balanced XLR output: 1 Pair
- S/PDIF Toslink Optical: 16/24bit 32-96kHz PCM, DoP64
- S/PDIF Coaxial: 16/24bit 32-192kHz PCM, DoP64
- HDMI eARC: PCM up to 24bit/192kHz
- Local USB media: PCM up to 32-bit 768kHz, DSD up to x512
- File system support: FAT32, NTFS, Ext2/3/4, ExFAT
- USB audio: PCM up to 32-bit 768kHz, DSD up to x512
- UPnP: PCM up to 32bit/768kHz
- Internet radio: Yes
- TIDAL Connect: Yes
- Spotify Connect: Yes
- Qobuz: Yes
- Deezer: Yes
- Amazon Music: Yes (via Google Cast)
- Google Cast: Yes
- AirPlay 2: Yes
- Roon Ready: Yes
- Audio formats: ALAC, WAV, FLAC, AIFF, DSD (x512), WMA, MP3, AAC, HE AAC, AAC+, OGG Vorbis
- Ethernet: IEEE 802.3, 10 Base-T or 100 Base-T
- Wi-Fi: IEEE 802.11 a/b/g/n/ac (2.4GHz / 5GHz)
- RS232 control: Yes
- THD @ 1kHz 0dBFS: < 0.0005 %
- Frequency response: 7Hz to 75kHz +0/-1dB
- Crosstalk @ 1kHz: < -120dB
- Signal to noise ratio (ref 1W): > 120dB
- Max power consumption: 30W
- Standby power consumption: Network Standby: >2W; Eco mode: <0.5W
- Dimensions (W x H x D): 430 x 90 x 305 mm
- Weight: 4.1 kg
- In the box: Mains lead, control bus cable
