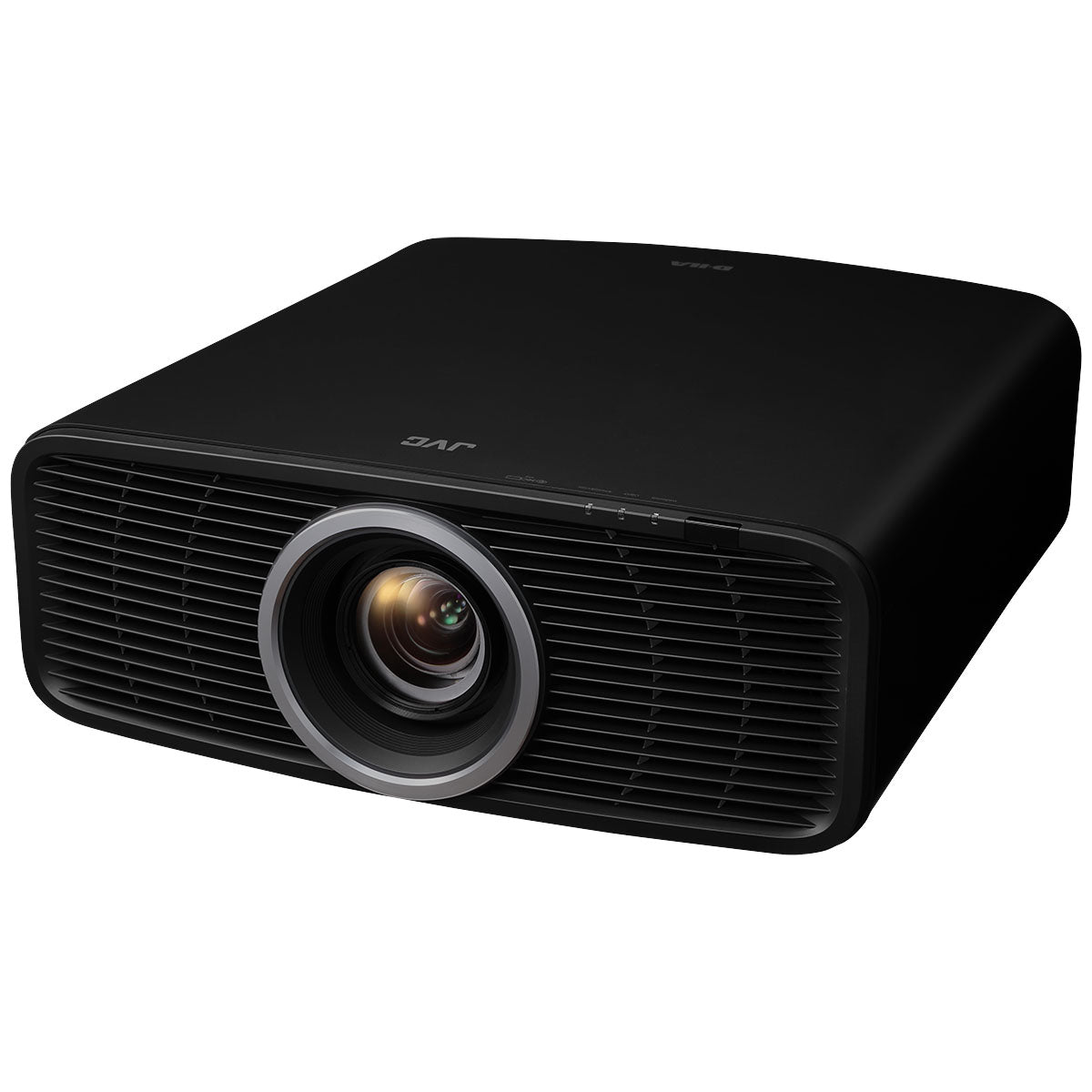

The JVC DLA-NZ700 D-ILA Laser Projector integrates cutting-edge optical physics to deliver breathtaking 4K imagery with exceptional clarity. Its innovative features optimize sound and image coherence, creating a truly immersive viewing experience.
The DLA-NZ700 employs proprietary 0.69 inch native 4K D-ILA technology, which utilizes a liquid crystal on silicon (LCoS) structure to achieve high pixel density and precise light modulation. This design, combined with the Blu-Escent laser light source, efficiently produces high brightness levels (2,300lm) while maintaining a laser life expectancy of about 20,000 hours. The projector achieves an extraordinary native contrast ratio of 80,000:1 by improving pixel alignment control, thus enhancing dark scene performance and dynamic range. Furthermore, the implementation of meticulous manufacturing processes ensures uniform brightness across the screen, resulting in minimal light loss and a more accurate image reproduction. The system's low latency and advanced HDR capabilities, including Gen2 Frame Adapt HDR, allow for rapid scene changes and enhanced color fidelity, leading to an authentic and vibrant visual experience.
Key Features
-
Native 4K D-ILA Technology: Utilizes high-resolution liquid crystal on silicon (LCoS) technology for precise light modulation, achieving enhanced detail and color accuracy.
-
High Native Contrast: Achieves 80,000:1 native contrast through improved alignment control and pixel flatness, essential for detailed dark scene reproduction.
-
Optical and Thermal Design: Redesigned air intake and exhaust placement minimize thermal interference on projection, enhancing installation flexibility.
-
Low Latency: Optimizes response times for dynamic content, crucial for high frame-rate applications like gaming.
-
Wide Color Gamut Support: Supports BT.2020, allowing it to reproduce a broader spectrum of colors for accurate HDR content portrayal.
-
Motorized 4K Lens: Fully motorized controls for precise zoom, focus, and shift adjustments, accommodating diverse installation needs.
-
DML Metadata Utilization: Employs Max Display Mastering Luminance for superior HDR tone mapping, faithfully representing the creator's intent.
Technical Specifications
- Brightness: 2300 lumens
- Native Resolution: 4K (3840 x 2160)
- Contrast Ratio: 80,000:1
- Lens Configuration: 80mm, 11 groups, 15 lenses
- Laser Life Expectancy: Approximately 20,000 hours
- HDR Formats Supported: HDR10, HLG, HDR10+
- Luminance Control Steps: 101 (0 – 100)
- Vertical Lens Shift: 70%
- Horizontal Lens Shift: 28%
