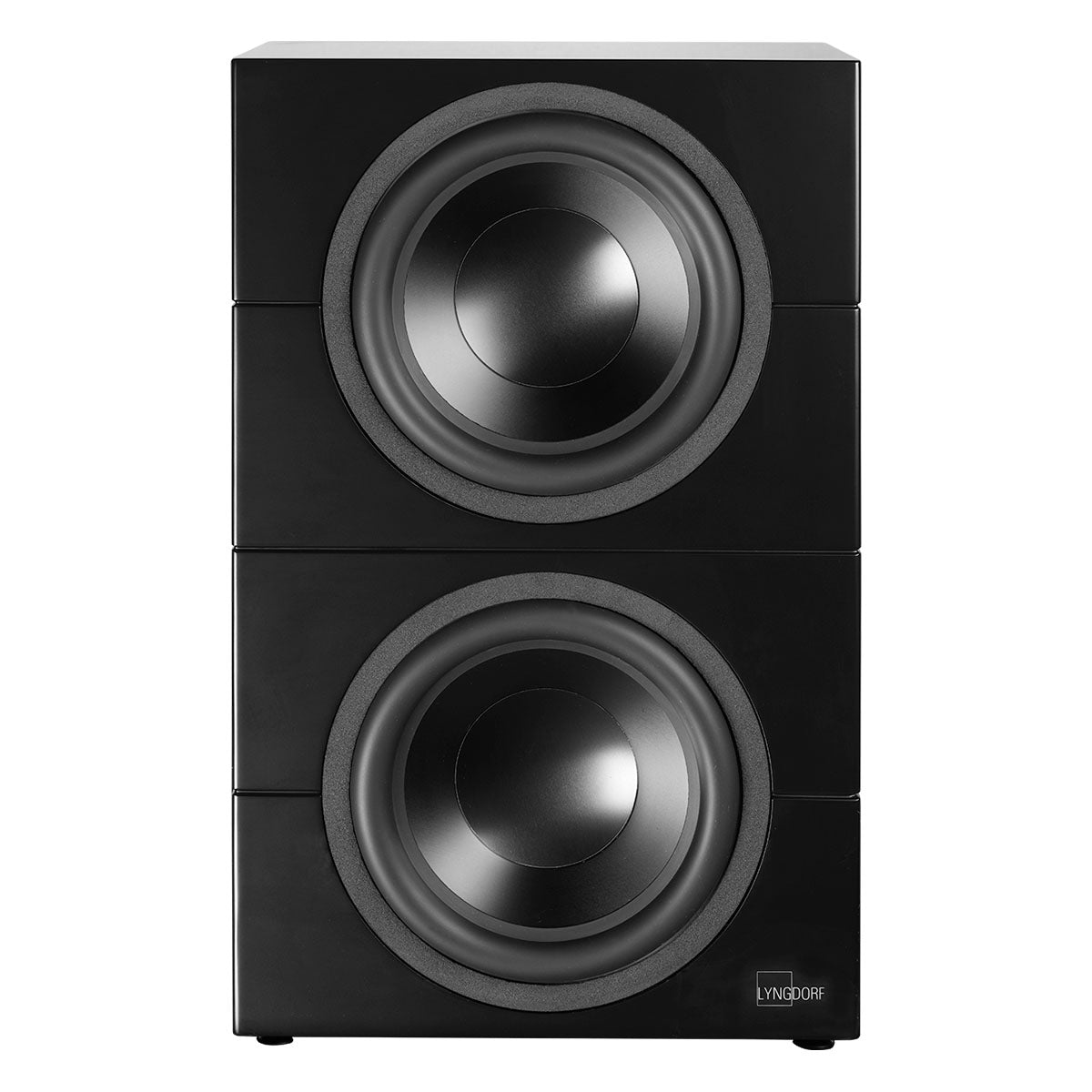

The Lyngdorf BW-20 Passive Boundary Woofer delivers precise low-frequency response deep into the sub-bass region. With advanced driver technology and an optimized cabinet design, it ensures that sound reproduction is both accurate and impactful.
The Lyngdorf BW-20 utilizes dual 12-inch high-excursion drivers, which are designed to reproduce low frequencies with greater accuracy and less distortion. The aluminum cones contribute to a lighter and more rigid structure, facilitating efficient sound wave propagation. The closed cabinet design minimizes resonance and standing waves, allowing the woofer to efficiently handle frequencies from 19 Hz to 500 Hz without losing articulation or depth. Rated to handle up to 700W, the combination of driver technology and cabinet configuration allows the BW-20 to achieve a maximum sound pressure level (SPL) of 118 dB, making it capable of delivering both powerful and clear bass in a variety of placements, including in-wall, on-wall, or floor-standing configurations. This flexible placement adaptability is critical in boundary design, enhancing sound performance according to room acoustics and listener preferences.
Key Features
-
Dual 12" High-Excursion Drivers: These drivers are engineered for optimal displacement and efficiency, ensuring low-frequency sounds are produced with minimal distortion.
-
Aluminum Cones: The lightweight yet rigid material of the cones contributes to faster response times and better sound clarity across the specified frequency range.
-
Closed Cabinet Design: This design type minimizes internal resonances, resulting in a cleaner sound profile and enhanced bass response by eliminating unwanted coloration.
-
Frequency Response: With a response range from 19 Hz to 500 Hz, the woofer is capable of reproducing deep bass frequencies that provide a more immersive listening experience.
-
High Power Handling: With a handling capacity of up to 700W, the BW-20 can sustain high levels of output in dynamic music passages without compromising performance.
-
Maximum SPL of 118 dB: This level of sound pressure output is ideal for effectively filling a room with clear and powerful bass, suitable for both home theater and music applications.
-
Flexible Placement Options: The ability to position the woofer in various ways allows for customization based on room acoustics, maximizing performance regardless of installation type.
Technical Specifications
- Driver Configuration: Dual 12" High-Excursion Drivers
- Cabinet Design: Closed
- Frequency Response: 19 Hz - 500 Hz
- Power Handling: Up to 700W
- Maximum SPL: 118 dB
- Placement Options: In-wall, On-wall, Floor-standing
