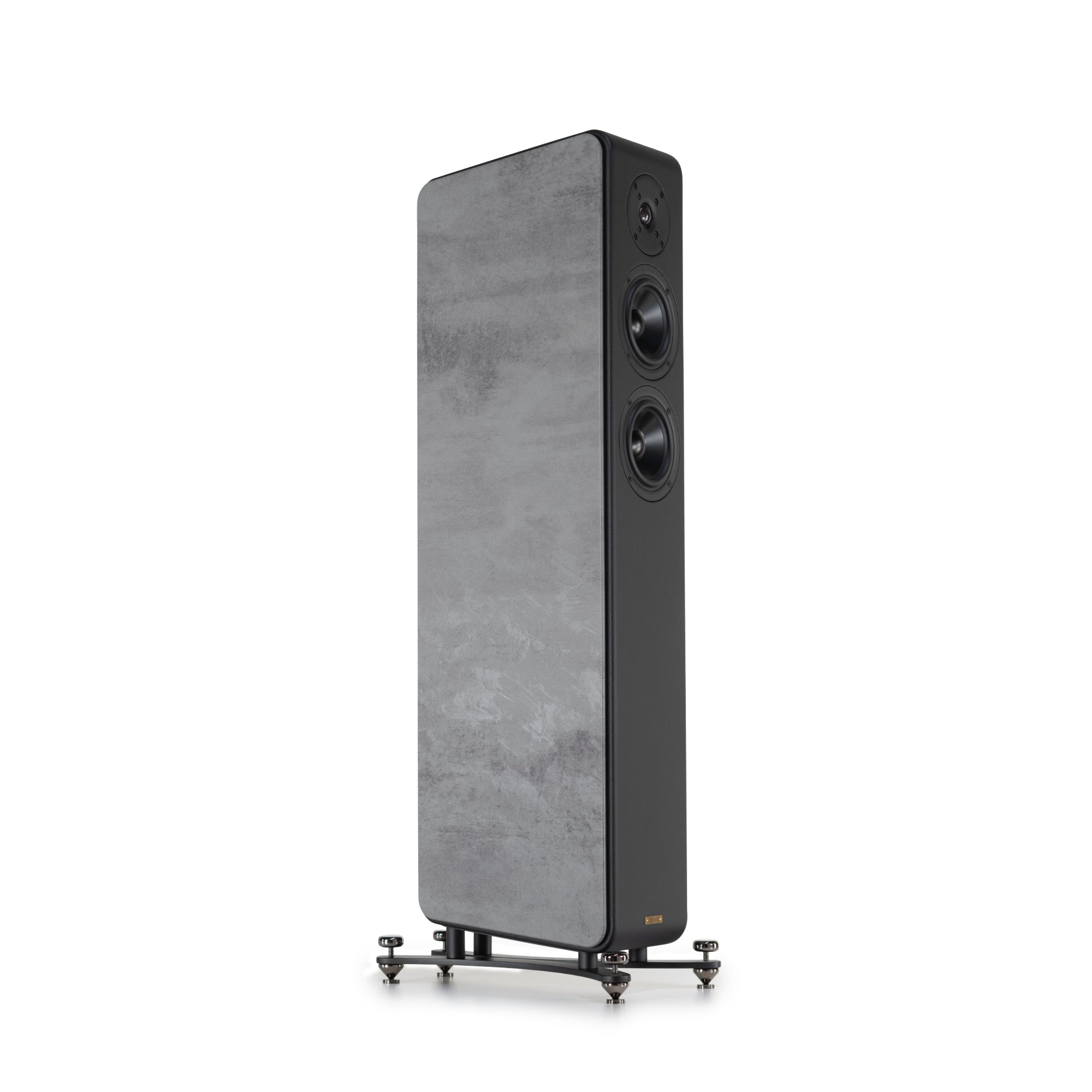

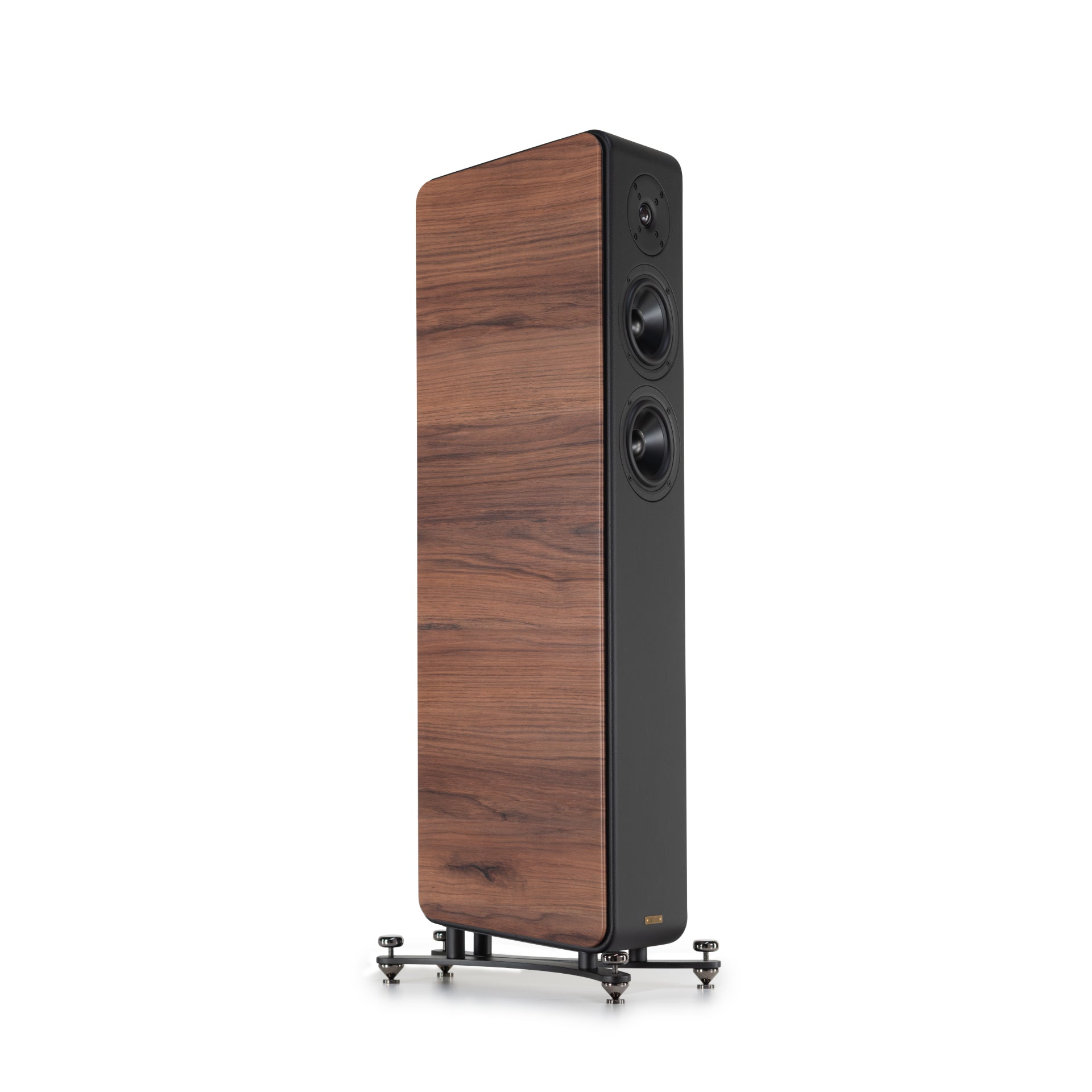

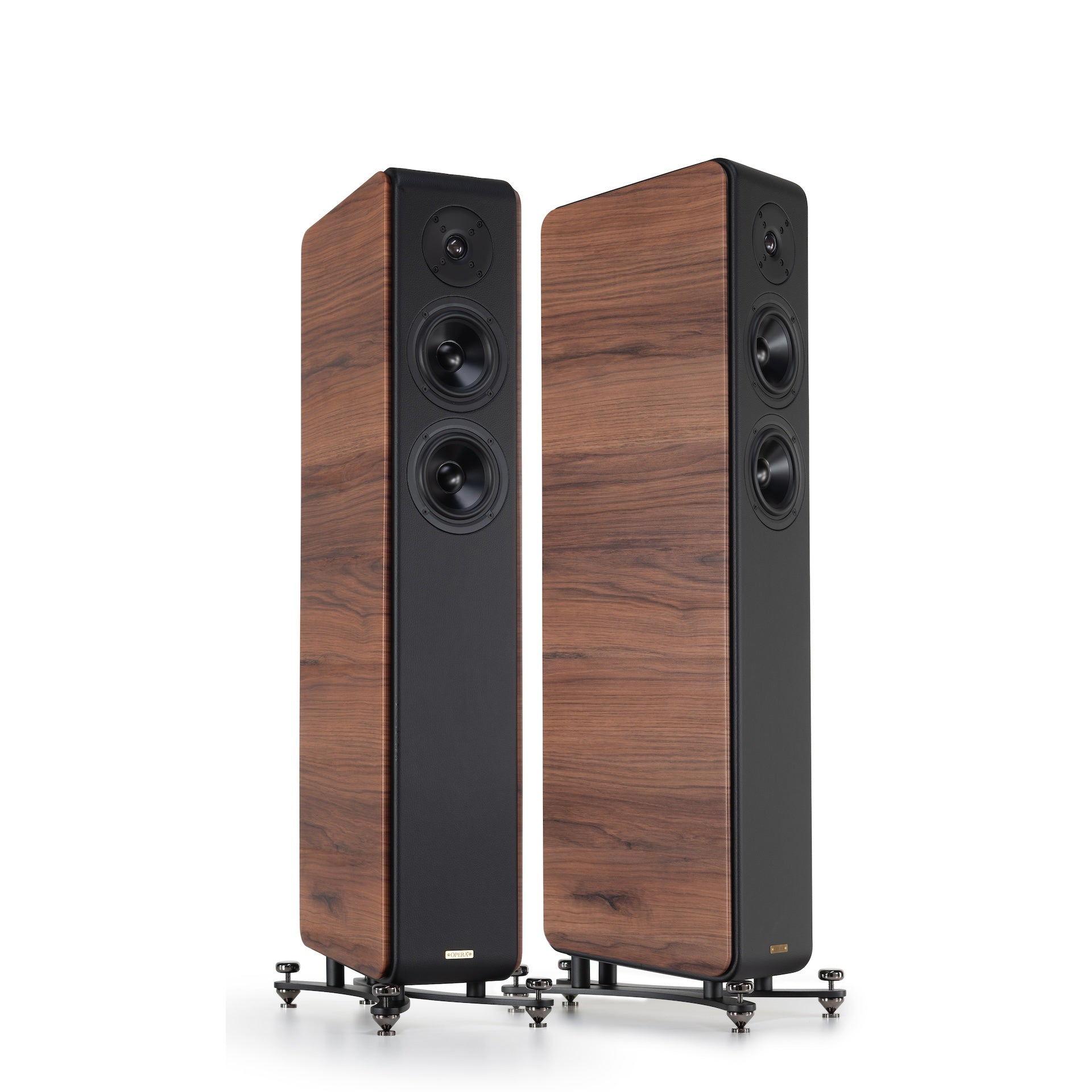

The Grand Mezza v.2 transcends conventional sound reproduction by harmonizing advanced engineering with acoustic principles. Its design captures the essence of low-frequency extension and soundstage clarity using cutting-edge driver technology and precise cabinet construction.
The Grand Mezza v.2 employs a two-and-a-half-way design that incorporates a dual-chamber, series-connected resonator (DCAAV) for optimized low-frequency response. The cabinet's smart geometry minimizes internal reflections through strategically placed, acoustically neutral reinforcements, while the critically angled wall behind the woofers further refines distribution of sound waves. The use of high-density polyurethane material in conjunction with this design significantly reduces cabinet coloration, allowing for an authentic audio experience. The dual midwoofers are engineered to maintain linearity and low distortion, complemented by a robust crossover network that preserves signal integrity and ensures dynamic, immersive sound reproduction across frequency ranges.
Key Features
-
Dual-Chamber Resonator: Enhances low-frequency extension and reduces driver excursion effects, resulting in a gentler roll-off and improved bass response.
-
Cabinet Geometry: Designed to minimize coloration and internal reflections, ensuring accurate sound reproduction across the audible spectrum.
-
Advanced Drivers: 5-inch midwoofers with improved cone technology from Scan-Speak create outstanding clarity and tonal balance.
-
High-Purity Internal Wiring: Thick-gauge copper connections maintain signal integrity, reducing losses throughout the driver-to-crossover interface.
-
Optimized Crossover Design: Ensures minimal signal attenuation with low-loss inductors, resulting in steep acoustic slopes for accurate phase alignment.
Technical Specifications
- Type: Two and a half way Double resonator Floorstanding Speaker
- Drivers: 26 mm Soft Dome Tweeter, Ferrite Magnet; 150mm Black anodized Alu Cone Mid/Woofer
- Sensitivity (2.83V/1m): 92 dB
- Frequency response (-3 dB): 48Hz - 28000Hz
- Nominal impedance: 6 Ohms
- Minimum impedance: 3.8 Ohms
- Maximum power: 100W without clipping
- Recommended amplifier power: 25-130W
- Crossover frequency: 250-2000 Hz
- Dimensions: Cabinet only: 201x1050x375mm (lxhxd), Loudspeaker with base: 262x1107x427mm (lxhxd)
- Net Weight: 35 Kg
