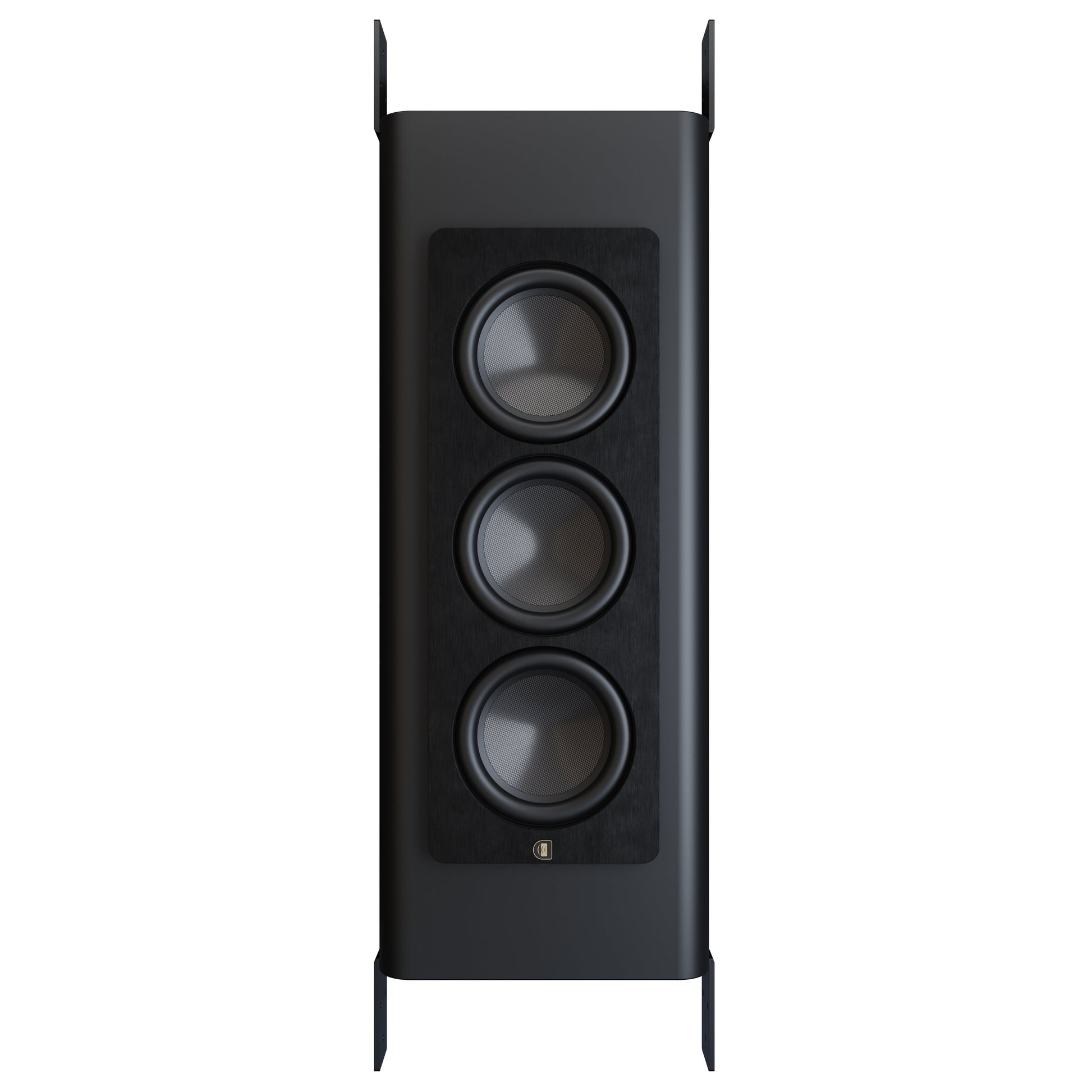

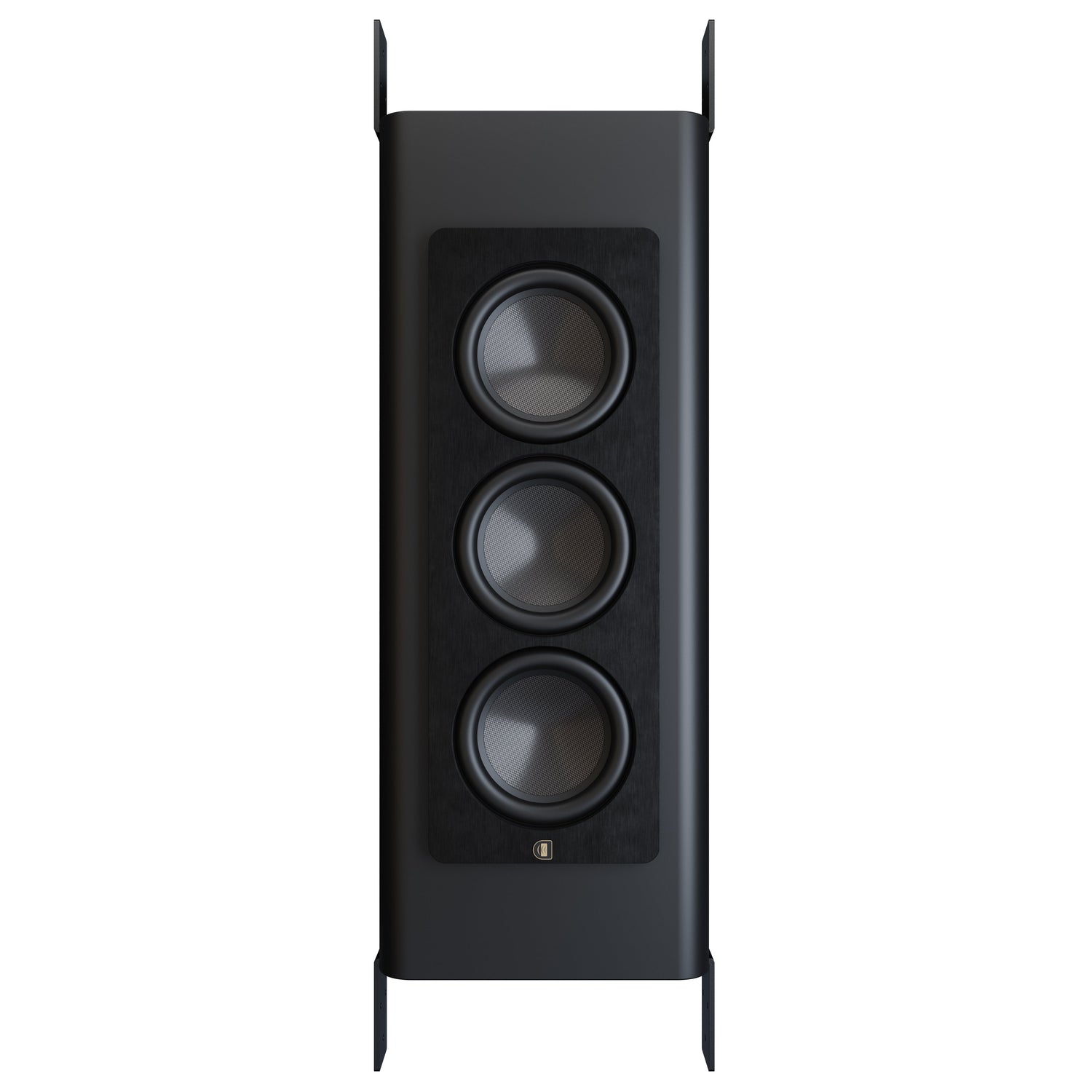

The Perlisten Audio D3is subwoofer delivers exceptional accuracy and dynamic range, utilizing advanced acoustic suspension technology. Its formidable DSP-controlled amplifier and proprietary driver optimization ensure unparalleled low-frequency performance in any installation.
The Perlisten Audio D3is subwoofer utilizes a unique acoustic suspension alignment that optimally seals each of its three 8-inch woofers to provide precise control over diaphragm motion, reducing harmonic distortion and enhancing frequency response. The integration of a 1,500W Class D amplifier with a 48-bit DSP ensures that the amplifier operates within its limits, enabling real-time adjustments that maximize driver linearity. Furthermore, the system employs advanced nonlinear modeling techniques and Klippel laser measurement to refine performance, creating a highly efficient coupling between the driver and the enclosure. This meticulous engineering results in superior transient response, allowing the subwoofer to reproduce low frequencies accurately across varying room sizes, whether mounted in-wall or on-wall.
Key Features
- Acoustic Suspension: Provides excellent control over driver motion, minimizing distortion and enhancing sound fidelity.
- 1,500W DSP-Controlled Amplifier: Ensures optimal power delivery with real-time adjustments for enhanced performance and sonic accuracy.
- Advanced Driver Optimization: Utilizes proprietary nonlinear modeling and Klippel measurement techniques for superior low-frequency reproduction.
- Versatile Mounting Options: Designed for both in-wall and on-wall applications to fit various installation needs.
- Parametric EQ: Includes a 10-band PEQ with three user presets for tailored sound customization based on room acoustics.
- High Sensitivity: With a reference sensitivity of 89.5 dB, the subwoofer delivers powerful performance even at low input levels.
Technical Specifications
- Driver Complement: (3) 8.5" woofers with carbon fiber diaphragm
- Frequency Response: 20-290Hz (-6dB) / 16-350Hz (-10dB)
- Amplifier: 1500W RMS
- Display Interface: 2.8" LCD color touchscreen
- Processor: 32-bit ARM Cortex M4
- DSD Engine: Ti DSP with 48-bit data path
- Inputs: (1) Balanced XLR, (1) Unbalanced RCA
- Outputs: (1) Balanced XLR unbuffered, (1) Unbalanced RCA unbuffered, (1) Digital AES/2
- Dimensions (Subwoofer): 920.8mm x 355.6mm x 146.1mm
- Dimensions (Amplifier): 89.0mm x 429.2mm x 322.4mm
- Weight (Net Subwoofer): 39.7 kg (87.3 lbs)
- Weight (Net Amplifier): 6.1 kg (13.4 lbs)
- Weight (Gross Packaged): 53.4 kg (117.5 lbs)
- Available Finishes: Matte black
