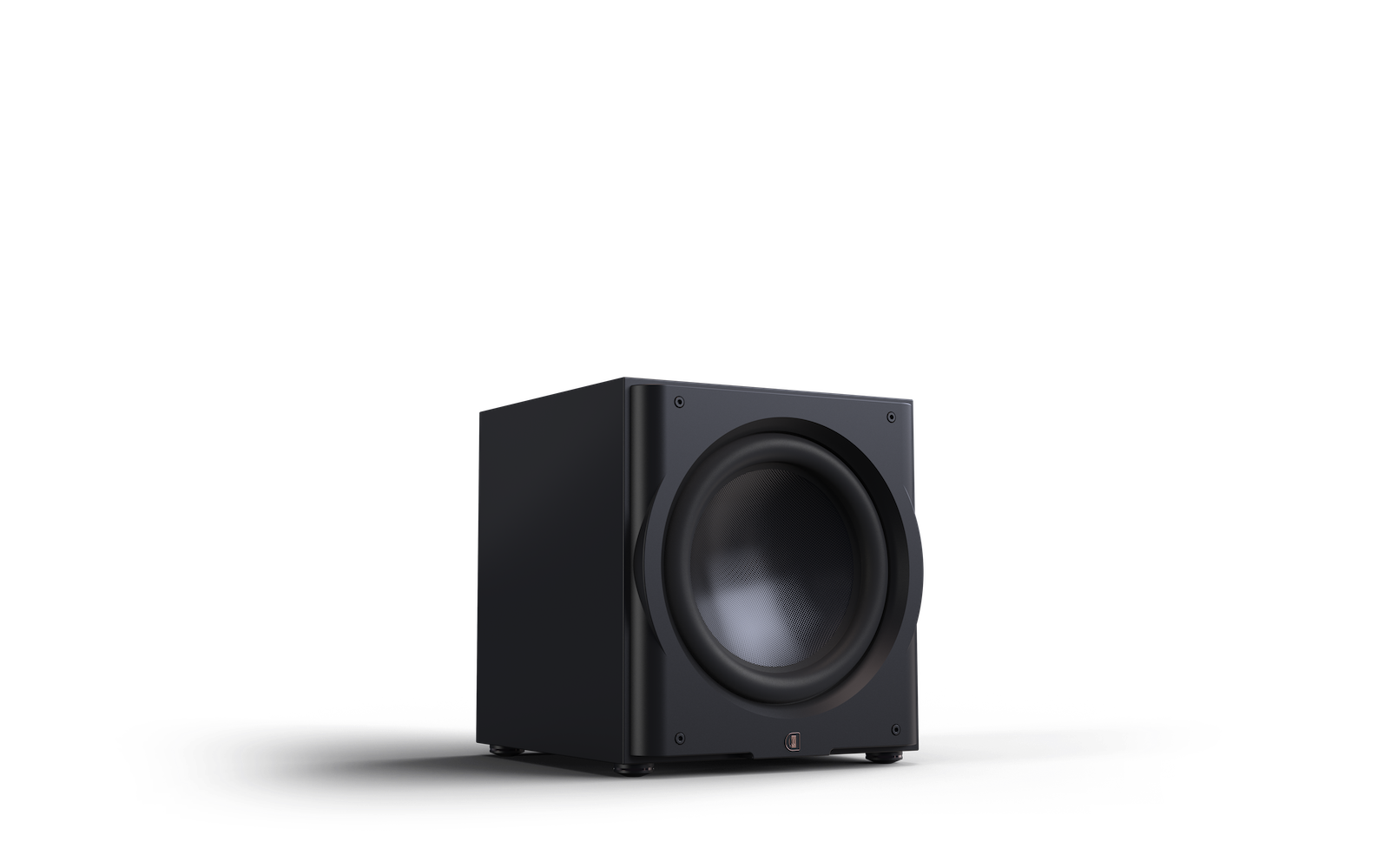

The Perlisten Audio R15s Subwoofer embodies the essence of acoustic fidelity through its meticulously engineered components. Each feature is a result of advanced modeling and precise measurements, ensuring a sound experience grounded in physical principles.
The R15s subwoofer employs a single-driver design optimized through proprietary modeling techniques that simulate real-world performance parameters. Key elements such as the glass fiber composite diaphragm enable enhanced stiffness-to-weight ratios, allowing for greater linear excursion and lower distortion. The integration of aluminum shorting rings minimizes inductance and improves linearity across the driver's output. Using a 1.0kW RMS amplifier controlled by a 32-bit ARM Cortex M4 processor, the subwoofer achieves sonic accuracy rapid enough for the most demanding dynamic content. The 48-bit DSP data path further allows for advanced tuning, contributing to precisely tailored acoustic responses in various listening environments.
Key Features
-
Driver Composition: The glass fiber diaphragm achieves a high stiffness-to-weight ratio, facilitating low distortion and accurate bass reproduction.
-
Advanced Amplification: A powerful 1.0kW RMS amplifier provides ample headroom and dynamic range while ensuring transient response accuracy.
-
Precision DSP: The 48-bit data path from the DSP enables real-time processing and optimization of audio signals, enhancing sound fidelity.
-
User Interface: The 2.4" LCD touchscreen allows direct access to advanced settings, making user adjustments intuitive and clear.
-
Comprehensive EQ Options: Featured 10-band parametric EQ with user presets allows for precise tuning to fit various acoustic environments.
-
Polarity and Phase Control: The variable phase settings (0-270°) let users adapt the subwoofer alignment to their specific room acoustics.
Technical Specifications
- Alignment: Acoustic suspension
- Amplifier: 1.0kW rms
- Display Interface: 2.4" LCD color touchscreen
- App Compatibility: iOS and Android
- Processor: 32-bit ARM Cortex M4, double precision floating point math
- DSP Engine: Ti DSP 48-bit data paths
- Driver Composition: 380mm, Glass fiber diaphragm
- Linear Excursion: +/-23.7mm
- Reference Sensitivity: 92dB / 150mV / 1.0m
- Frequency Response: THX EQ Boost (Large Room) EQ Cut (Small Room) EQ 20-388Hz (-6dB) / 16-468Hz (-10dB)
- Inputs: (1) Balanced XLR (1) Unbalanced RCA
- Outputs: (1) Balanced XLR unbuffered (1) Unbalanced RCA unbuffered
- Parametric EQ: 10-Band PEQ with 3 user presets
- Low Pass Filter: Bypass, 30-160Hz, slope 6, 12, 18, 24dB/oct
- Phase: Variable 0-270°
- Polarity: Normal / inverted
- Configurable: Auto turn-on and 12v Trigger XLR, RCA
- Dimensions (HxWxD): 498 x 460 x 465mm (19.6 x 18.1 x 18.3")
- Weight: 35.5 kg (78.1 lbs.)
- Available Finishes: Satin black
