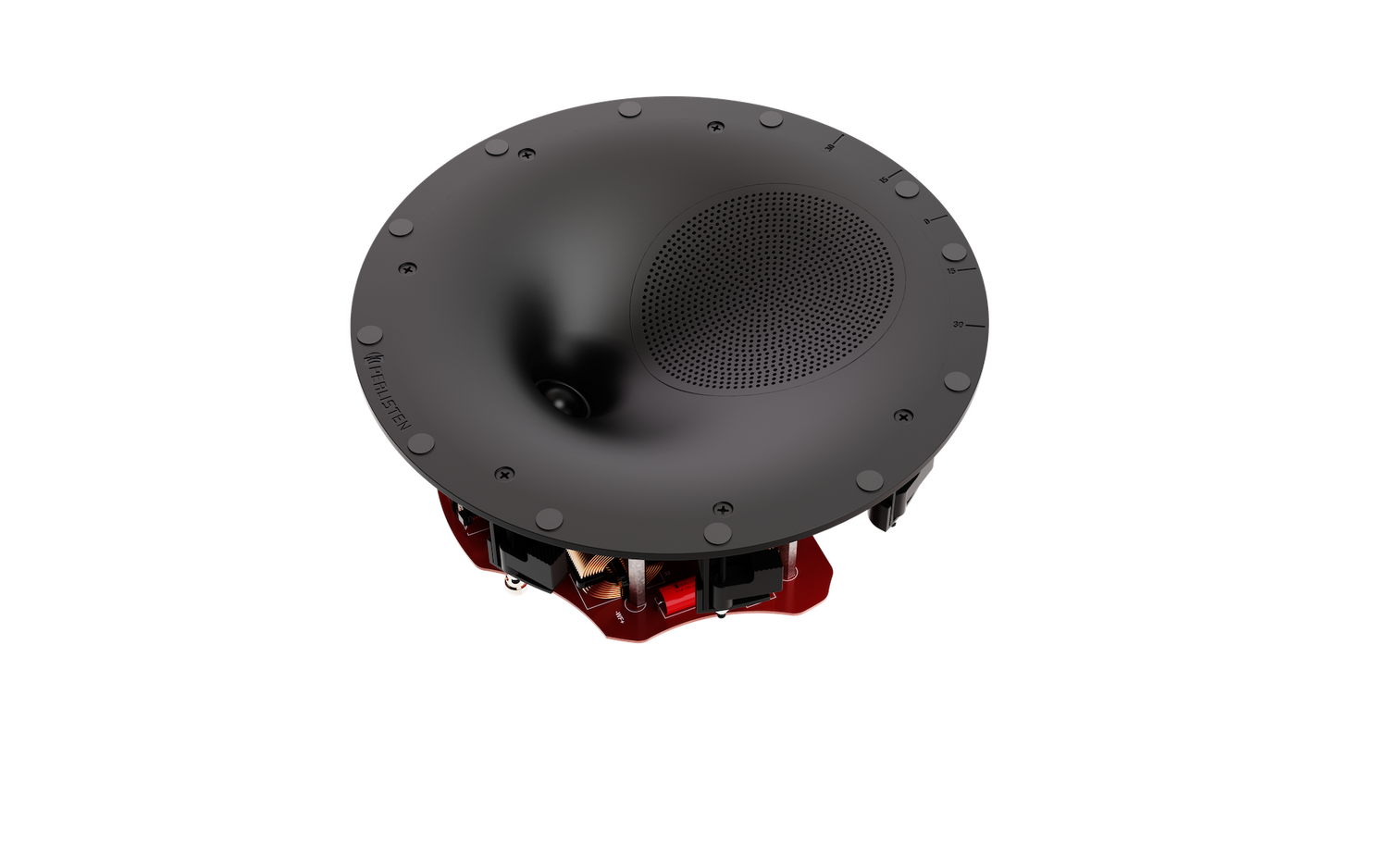

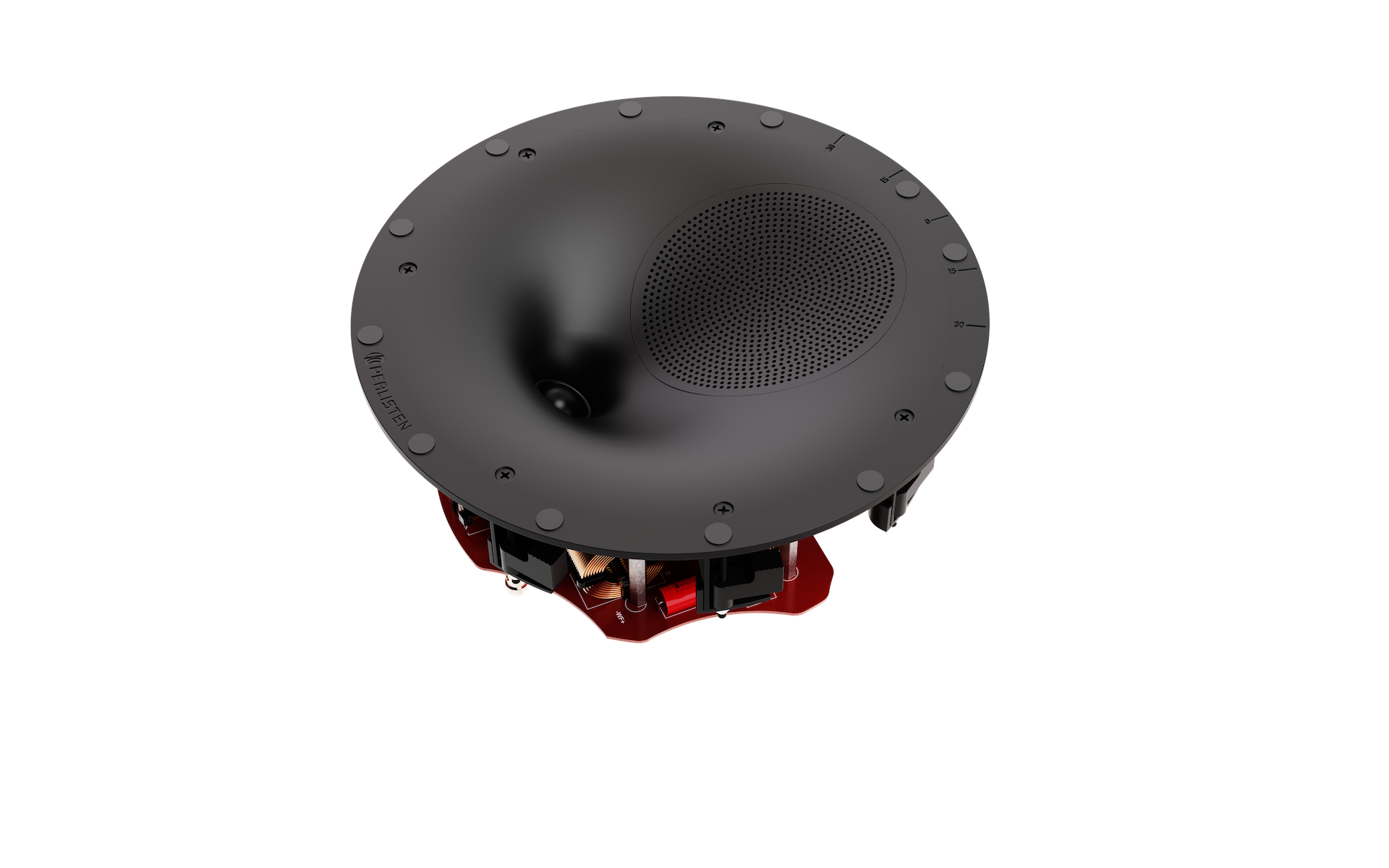

Perlisten Audio R2ic In Ceiling Speaker

The Perlisten Audio R2ic In-Ceiling Speaker delivers superior acoustic performance for a wide range of applications. Its advanced design ensures accurate sound reproduction and immersive audio experiences.

---

The R2ic employs a two-way infinite baffle design, optimizing sound radiation and providing a controlled listening window for enhanced audio fidelity. The integration of a 28mm silk dome tweeter and 165mm custom paper pulp woofers ensures flat frequency response and minimal distortion across a broad frequency range, from 44Hz to 27kHz. The innovative waveguide array enhances the dispersion characteristics of mid/high frequencies, enabling sound to reach a wider audience while maintaining coherence and timbre matching. With a sensitivity of 86.0dB and a nominal impedance of 6Ω, the speaker is designed to be driven effectively by a range of amplifiers, ensuring dynamic range and SPL capabilities up to 109.5dB peak without significant harmonic distortion.

Key Features

• Two-way Infinite Baffle: Provides a consistent acoustic environment ideal for in-ceiling applications, ensuring effective sound distribution.
• DPC Array: The proprietary waveguide controls mid/high frequencies, facilitating smooth sound transitions and better directivity.
• Extended Frequency Response: With a range of 44Hz to 27kHz, the speaker captures a wide spectrum of audio, delivering depth and clarity.
• Versatile Configuration: Can function as L,C,R, surround, height, or wide channel speaker, providing flexibility for various home audio setups.
• Timbre Matching Technique: Ensures consistent tonal quality across R-Series products, enhancing the immersive experience by preserving audible detail.

Technical Specifications

• Driver Configuration: DPC Array: 28mm silk dome tweeter, 165mm Alum frame, HPF pulp woofers
• Sensitivity: 86.0dB / 2.83v / 1.0m
• Impedance: 6Ω nominal / Ω min
• Listening Window (from 30deg Ref): Horizontal: +/-30 deg, Vertical: +/-30 deg
• Frequency Response: 44 - 27kHz (-6dB), 31 - 32kHz (-10dB)
• Typical In Room Bass Extension: 32Hz (-6dB), 22Hz (-10dB)
• Overall Dimensions (with grille): 343.3 diam x 153.1mm depth (13.5" diam x 6.0" depth)
• Recommended Cutout: 305mm diameter (12" diameter)
• Weight: 11.8lbs (5.4kg)
• Recommended Amplifier Power: 50 - 150W (with 80Hz HPF), 50 - 100W (full range)
• SPL Capability @1m (100-20kHz): 109.5dB peak, 109.0dB peak <3% 2nd, 3rd Harmonics
• Certification: THX Ultra
