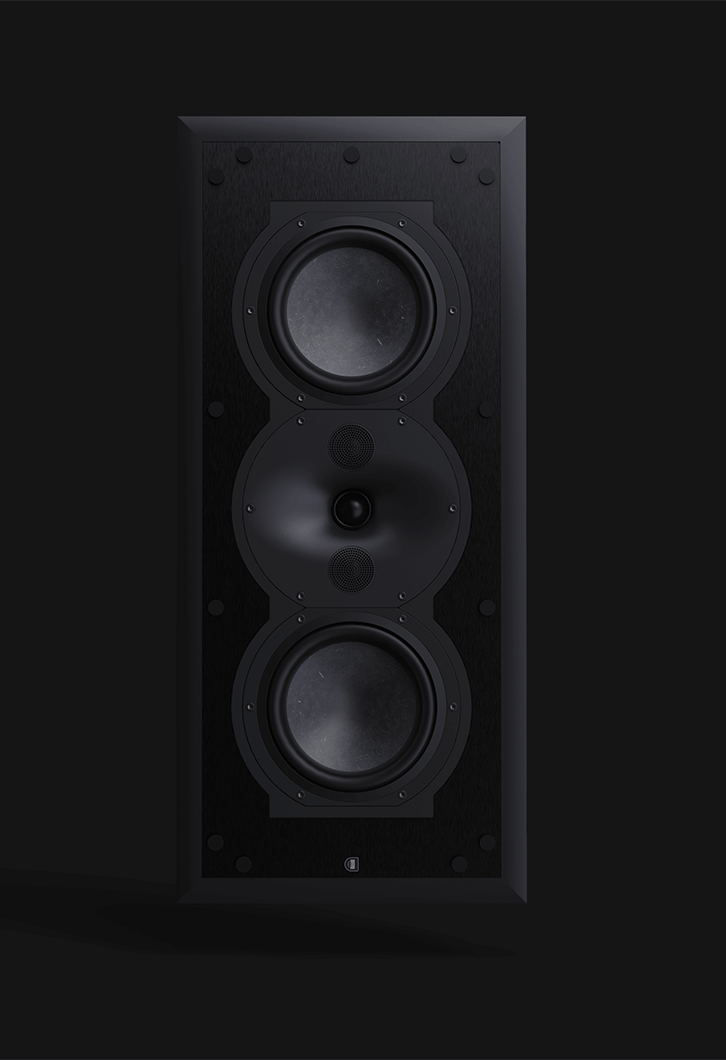

Perlisten Audio R5i L/R In Wall Speaker

The Perlisten Audio R5i in-wall speaker embodies exceptional acoustic design principles, integrating advanced driver technology for a superior listening experience. With a focus on directivity control and minimal sound propagation, it is engineered for medium-sized home theaters.

---

The R5i L/R In Wall Speaker utilizes a sophisticated DPC (Directivity Pattern Control) array, which consists of three 26mm silk dome tweeters, ensuring a consistent and controlled directivity pattern across its operational frequency range. This design, derived from the flagship R5t tower, enables the speaker to reproduce sound with high fidelity, allowing the integration of both the woofer and tweeter to meet strict timbre matching standards. The speakers' 165mm proprietary HPF pulp woofers, developed over two years, provide a solid bass response, while the 4Ω nominal impedance and efficient acoustic suspension alignment optimize power handling and alignment with various amplifier systems. Furthermore, the shallow 4-inch mounting depth and integral aluminum extrusion rear enclosure mitigate unwanted sound propagation to adjacent spaces, enhancing acoustic isolation and performance consistency.

Key Features

• DPC-Array Technology: The innovative Directivity Pattern Control array with three 26mm silk domes improves directivity and ensures timbre matching across R-Series speakers, optimizing sound integration.
• HPF Pulp Woofers: The utilization of proprietary HPF pulp in the woofers combines traditional materials with modern design for improved bass response and enhanced acoustic properties.
• Acoustic Suspension Alignment: A 3-way acoustic suspension design enhances low-frequency performance while providing a robust and smooth response across the frequency spectrum.
• Shallow Mounting Depth: The 4-inch mounting depth with a rear aluminum enclosure allows for versatile installation while minimizing sound bleed into adjacent rooms.
• THX Certifications: The R5i is certified THX Dominus and Ultra, ensuring it meets rigorous standards for high-quality home theater audio reproduction.

Technical Specifications

• Dimensions (HxWxD): 298 x 665 x 111mm (11.8 x 26.2 x 4.4")
• Mounting Dimensions (HxWxD): 257 x 624 x 257 x 101.7mm (10.1 x 24.6 x 4.0" )
• Weight: 15.9 kg (35.0 lbs.)
• Available Finishes: White grille, Black baffle
• Enclosure Alignment: 3-way acoustic suspension
• Driver Complement: DPC-Array: 26mm(3) Silk dome; Woofers: 165mm(2) HPF diaphragms
• Sensitivity: 89.4dB / 2.83v / 1.0m
• Impedance: 4Ω nominal / 3.3Ω min
• Frequency Response (+/-1.5dB): 80 - 20kHz
• Frequency Response (-10dB): 40 - 32kHz
• Typical In Room Bass Extension: 34Hz
• Recommended Amplifier Power: 50 - 250W RMS
• SPL Capability (100-20kHz): 113.4dB peak, 111.0dB peak <3% - 2nd, 3rd Harmonics
• Certification: THX Dominus, THX Ultra
