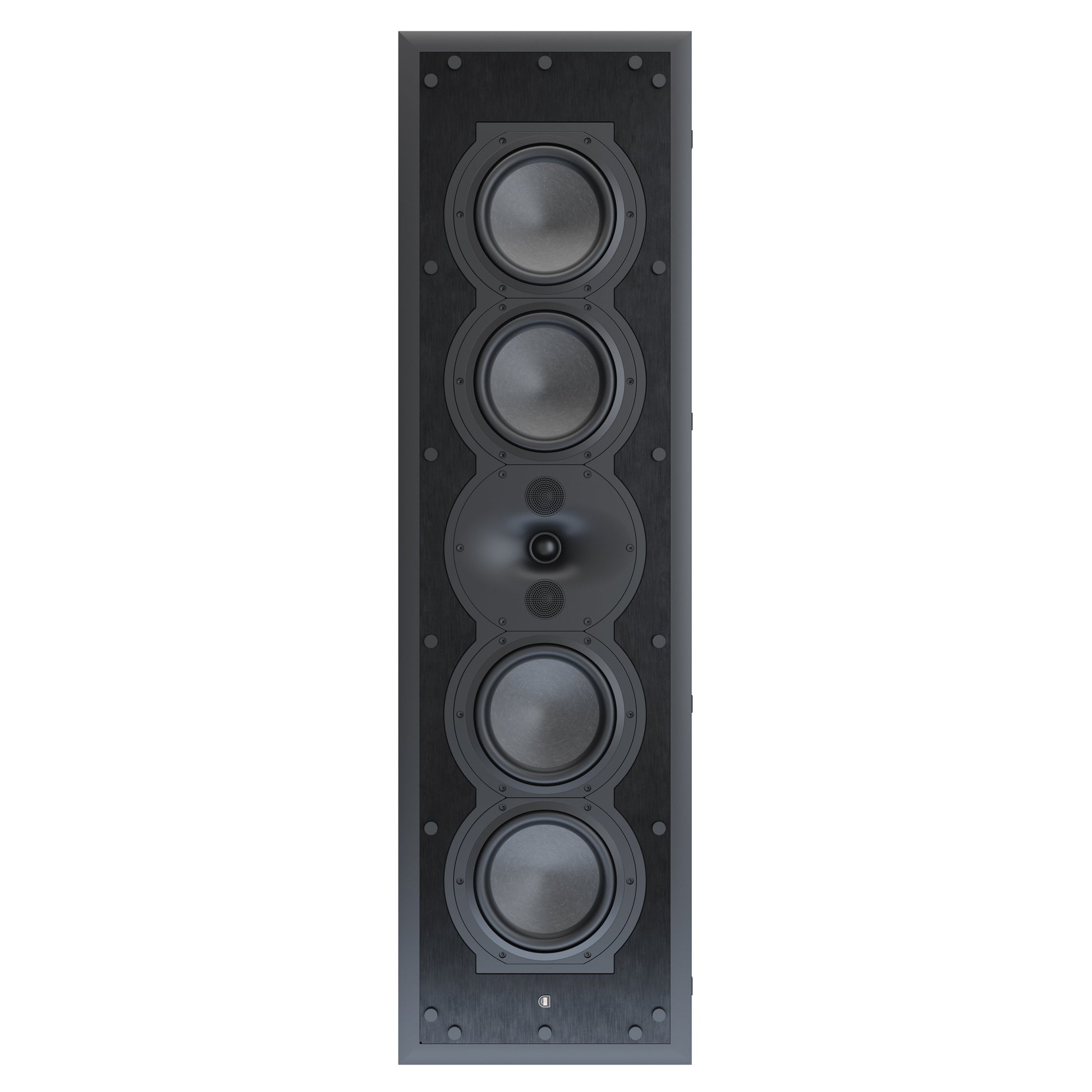

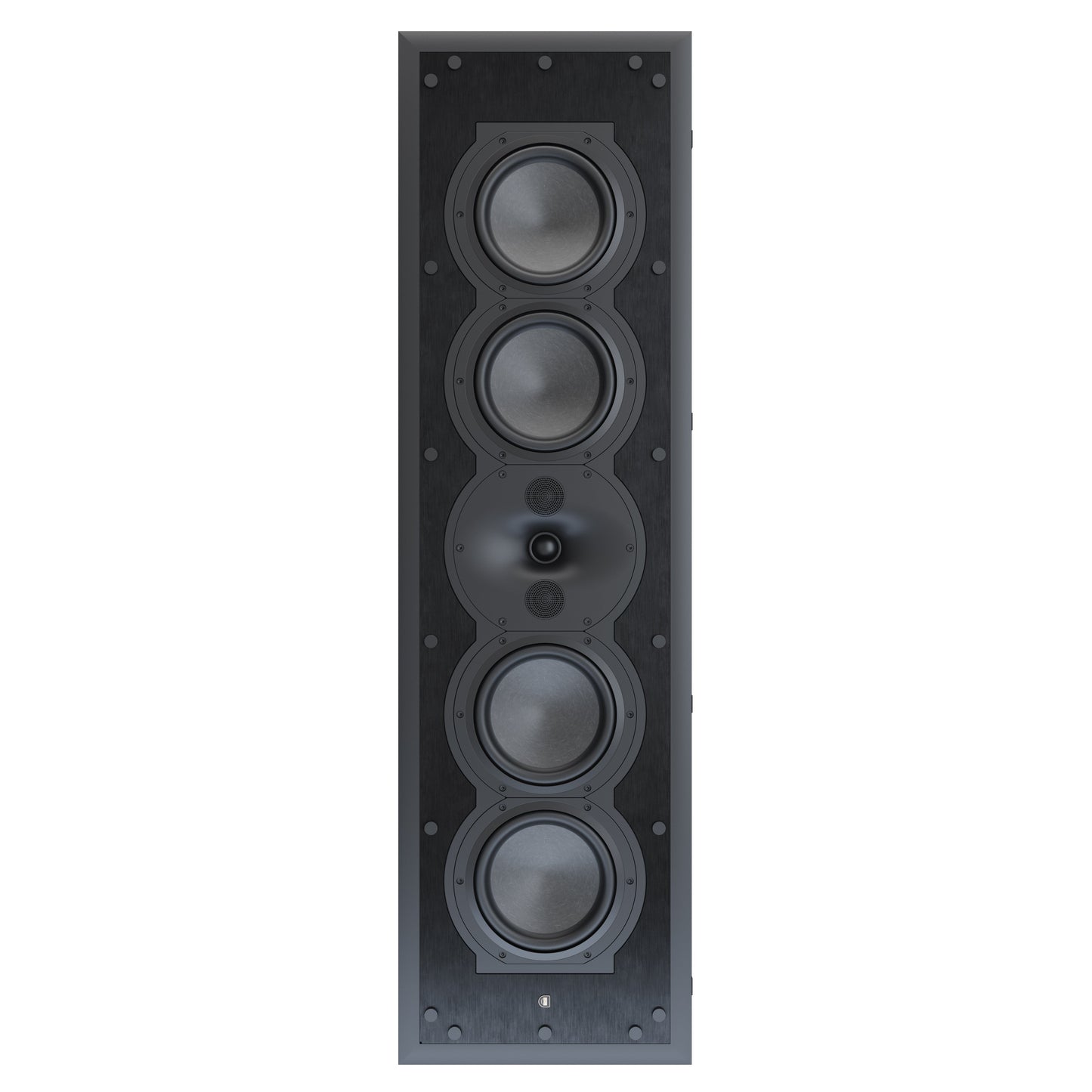

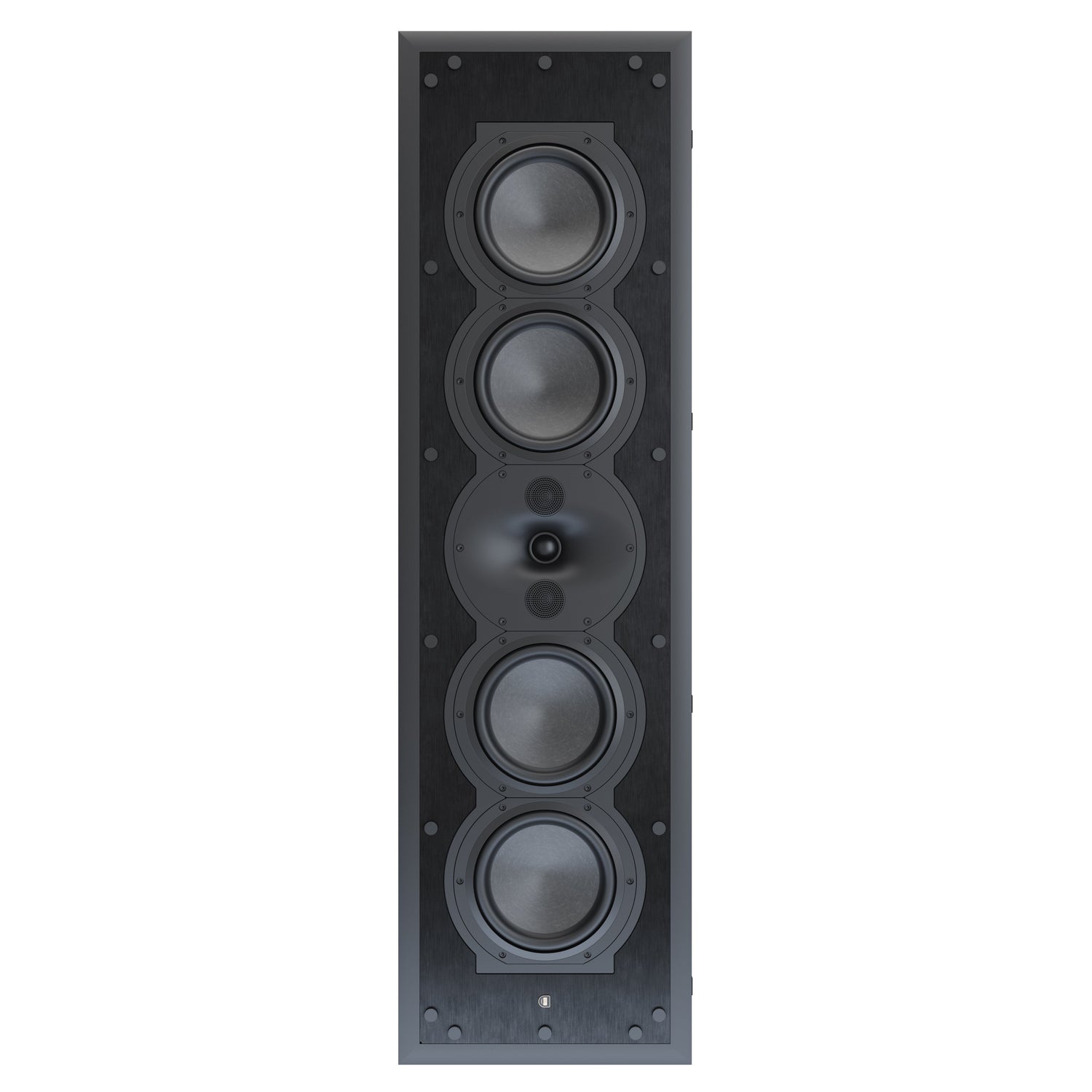

Perlisten Audio R7i-LR In Wall Speaker

The Perlisten Audio R7i-LR in-wall speaker showcases unparalleled acoustic engineering for truly immersive sound reproduction. Its DPC-Array technology ensures optimized sound directivity and timbre matching across a wide frequency range.

---

The R7i-LR employs a Directivity Pattern Control (DPC) array, which utilizes three 26mm silk dome tweeters arranged to enhance mid-to-high frequency directivity while maintaining a consistent tonal balance. This innovative design is anchored in physics, leveraging COMSOL acoustic modeling to meticulously design each component for optimal performance, resulting in a frequency response range of 42 Hz to 32 kHz, with a sensitivity of 89.9 dB. The custom bass drivers, constructed from high-performance fiber (HPF) diaphragms, bolster low-frequency predictability, contributing to a dynamic range capable of reaching a SPL of 115.9 dB peak at 1 meter. The cabinet’s acoustic suspension alignment ensures controlled resonance, further solidifying the R7i-LR's capability in both home theater and media room applications.

Key Features

• DPC-Array Technology: This unique configuration of three tweeters allows for superior directivity control and consistent tonal balance, ensuring clarity in vocal and treble frequencies.
• Custom Woofers: Made from HPF diaphragms, the woofers deliver predictable low-frequency performance essential for multi-channel audio systems.
• Acoustic Suspension Design: The enclosure minimizes distortion and enhances sound quality by controlling the back pressure of the drivers, resulting in improved bass response.
• Wide Frequency Range: With a performance envelope of 42 Hz to 32 kHz, the R7i-LR reproduces both deep bass and delicate high frequencies with exceptional accuracy.
• Advanced Acoustic Modeling: The implementation of COMSOL simulations ensures each component is engineered to deliver targeted sound performance, meeting rigorous acoustic standards.

Technical Specifications

• Enclosure Alignment: Acoustic Suspension
• Driver Compliment: DPC-Array: 26mm(3) Silk Dome, Woofers: 165mm(4) HPF Diaphragms
• Sensitivity: 89.9 dB / 2.83v / 1.0m
• Impedance: 4Ω nominal / 3.6Ω min
• Frequency Response (±2.0dB Window): 80 - 20kHz
• Frequency Response (-10dB): 42 - 32kHz
• Typical In-Room Bass Extension: 35Hz
• Dimensions (HxWxD): 1032.0 x 293.0 x 120.8 mm (40.6 x 11.5 x 4.8 in)
• Weight: 23.1 kg (50.8 lbs)
• Recommended Amplifier Power: 100 - 400W RMS
• SPL Capability @1m (100-20kHz): 115.9 dB Peak
• Available Finishes: Matte Black Aluminum with White Grille
