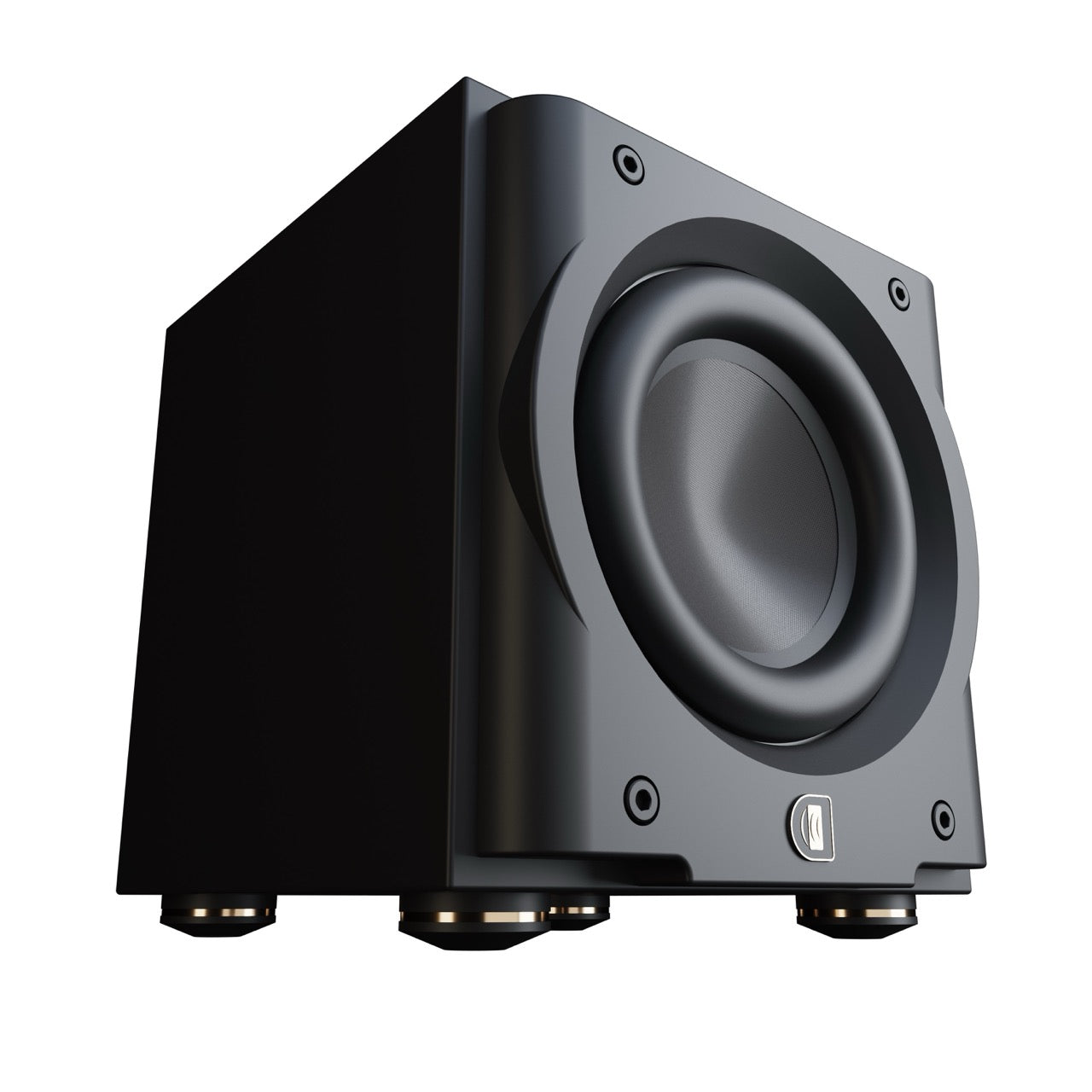

The Perlisten Audio R8s Subwoofer delivers powerful and precise bass through advanced engineering and optimized driver performance. Experience a balanced low-frequency response tailored for both small and large rooms.
The Perlisten Audio R8s Subwoofer integrates cutting-edge audio technology driven by meticulous engineering principles. Its 8" driver utilizes a glass fiber composite diaphragm, ensuring lightweight yet rigid properties that are crucial for high excursion capabilities, measured at +/-28.0mm. The use of multiple aluminum shorting rings minimizes inductive distortion, while a high-performance 500W amplifier coupled with a 32-bit ARM Cortex M4 processor provides rapid DSP control within microseconds. This results in precise real-time adjustments for any acoustic environment, greatly facilitated by proprietary nonlinear modeling and Klippel laser measurement systems. The enclosure is designed with acoustic suspension principles to optimize the interaction between the driver and its surroundings, enhancing overall frequency response from 16Hz to 330Hz based on room size settings.
Key Features
-
500W RMS Amplifier: Delivers sufficient power to achieve high output levels with low distortion.
-
Glass Fiber Composite Diaphragm: Provides rigidity and lightweight properties for enhanced performance in low-frequency reproduction.
-
Nonlinear Modeling Techniques: Enables detailed simulations of drivers for optimized real-world performance.
-
Klippel Laser Measurement: Ensures precise tuning of driver parameters for superior accuracy in various environments.
-
32-bit ARM Cortex M4 Processor: Processes audio signals quickly and efficiently, enhancing sonic precision.
-
Acoustic Suspension Design: Optimizes the enclosure to provide accurate bass response suited for both large and small rooms.
Technical Specifications
- Alignment: Acoustic suspension
- Amplifier: 500W rms
- Display Interface: 2.4" LCD color touchscreen
- App: iOS and Android
- Processor: 32-bit ARM Cortex M4, double precision floating point math
- DSP Engine: Ti DSP, 48-bit data paths
- Driver Compliment: 215mm, Glass fiber diaphragm
- Linear Excursion: +/-28.0mm
- Reference Sensitivity: 86dB /150mV/ 1.0m
- Frequency Response: THX EQ Boost (Large Room) EQ Cut (Small Room) EQ 20-265Hz (-6dB) / 16-330Hz (-10dB)
- Inputs: (1) Balanced XLR, (1) Unbalanced RCA
- Outputs: (1) Balanced XLR unbuffered, (1) Unbalanced RCA unbuffered
- Parametric EQ: 10-Band PEQ with 3 user presets
- Low Pass Filter: Bypass, 30-160Hz, slope 6,12,18,24dB/oct
- Phase: Variable 0-270
- Polarity: Normal / inverted
- Auto Turn-On: Configurable, 12v Trigger XLR, RCA
- Dimensions (HxWxD): 298 x 270 x 290mm (11.7 x 10.6 x 11.4")
- Weight: 14.4 kg (31.7 lbs.)
- Available Finishes: Satin black, Satin white
