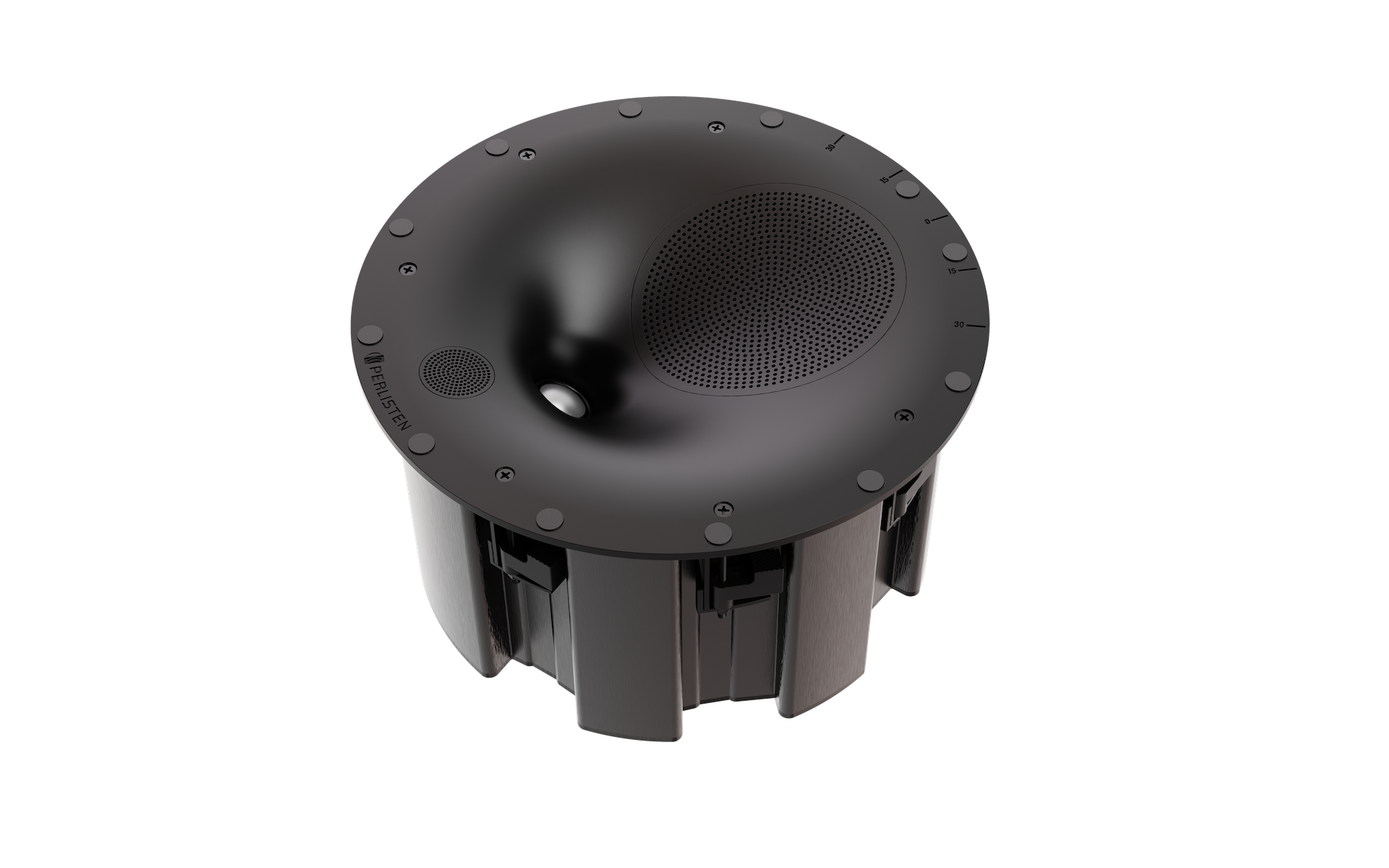

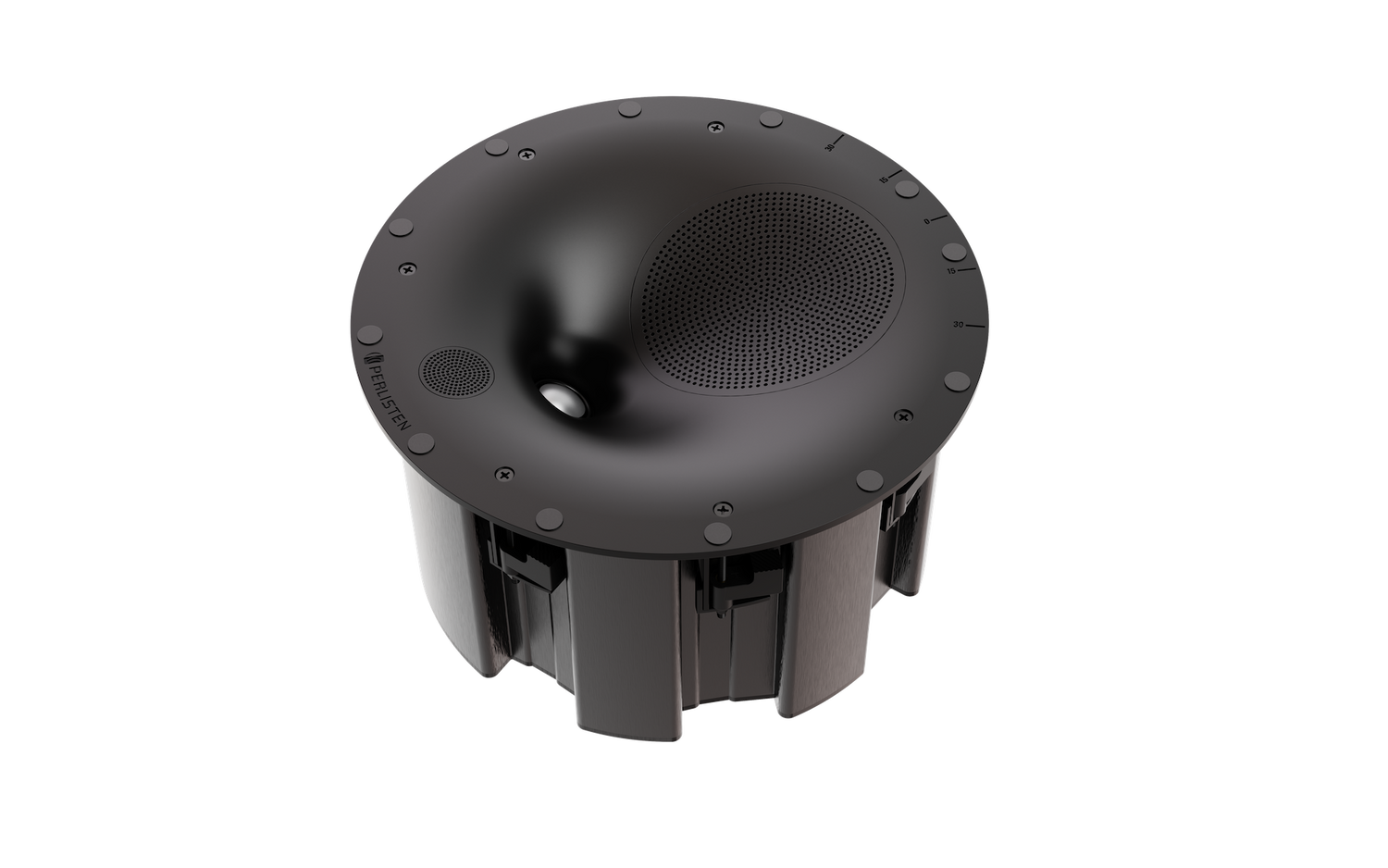

The Perlisten Audio S3ic In-Ceiling Speaker offers uncompromised sound quality for immersive audio experiences. With advanced engineering principles, this speaker achieves remarkable fidelity in a compact form factor.
The S3ic employs a proprietary Directivity Control (DPC) Waveguide Array with a combination of advanced driver materials, such as the Beryllium dome tweeter and Textreme TPCD midrange and woofers. This engineering allows for a tailored frequency response that ensures sound consistency across a wider listening area, effectively managing off-axis response for an immersive auditory experience. The robust aluminum back box minimizes sound transmission, enhancing clarity and maintaining acoustical integrity. Its design incorporates a 3-way acoustic suspension alignment delivering sensitive detail in the vocal range and smooth reproduction across the entire frequency spectrum up to 30kHz. This speaker is engineered for versatile applications including Dolby Atmos and DTS:X, showcasing true high-fidelity home theater capabilities.
Key Features
-
Directivity Control (DPC) Waveguide Array: Optimizes mid/high frequencies to maintain sound accuracy and minimize distortion across a wide listening area.
-
Beryllium Dome Tweeter: Offers superior transient response and minimized harmonic distortion, delivering delicate treble with unmatched clarity.
-
Textreme TPCD Drivers: Light-weight yet rigid, these drivers enable precise sound reproduction while preserving tonal balance and timbre matching with other S-Series speakers.
-
Acoustic Suspension Design: Enhances low-frequency performance, yielding better bass response and extending in-room bass performance down to 48Hz.
-
THX Certification: Ensures the speaker meets stringent performance standards for professional audio clarity and reliability in home theater applications.
Technical Specifications
- Enclosure Alignment: 3-way acoustic suspension
- Driver Compliment: DPC Array: 28mm Beryllium tweeter, 28mm Textreme TPCD mid, Woofers: 165mm Alum frame, Textreme TPCD
- Sensitivity: 89.7dB / 2.83v / 1.0m
- Impedance: 4 Ω nominal / 3.2 Ω min
- Listening Window (from 30 deg Ref): Horizontal: +/-55 deg, Vertical: +/-30 deg
- Response Linearity: 100 - 20kHz +/-1.5dB window
- Frequency Response: 57 - 30kHz (-6dB), 43 - 33kHz (-10dB)
- Typical In Room Bass Extension: 48Hz (-6dB), 31Hz (-10dB)
- Overall Dimensions (with grille): 343.3 diam x 194.8mm depth, 13.5" diam x 7.7" depth
- Recommended Cutout: 305mm diameter, 12" diameter
- Weight: 20.4lbs. (9.4kg), 11.8lbs. (5.4kg) without enclosure
- Recommended Amplifier Power: 50 - 250W (with 80Hz HPF), 50 - 150W (full range)
- SPL Capability @1m (100-20kHz): 113.7dB peak, 111.0dB peak <3% 2nd, 3rd Harmonics
- Certification: THX Dominus, THX Ultra
