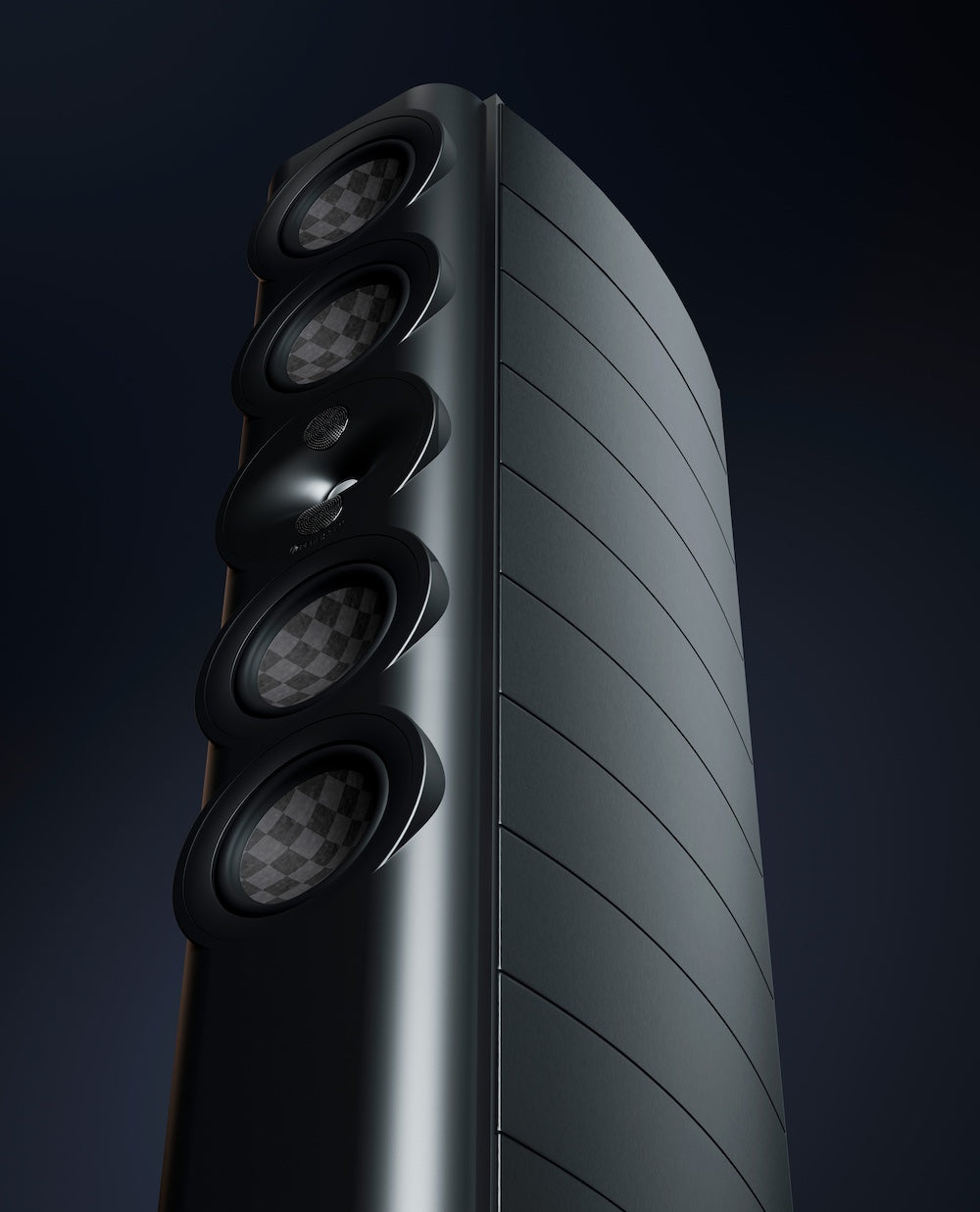

The Perlisten Audio S7t Black Edition is engineered for acoustic precision, delivering an expansive soundstage supported by advanced thermal management technologies. Experience unmatched low-frequency capabilities and consistent performance across all listening levels.
The S7t Black Edition incorporates a machined aluminum DPC array that serves dual purposes: a robust structural component and a thermal heatsink for the tweeter system. This thermal management technique is critical in extending the operational range of the tweeters by ensuring they operate at uniform temperatures, thereby reducing distortion arising from thermal compression. The integration of an ultra-light TPCD carbon fiber diaphragm in both the midrange and woofer systems further enhances transient response while minimizing resonance peaks. Innovations such as the redesigned voice coil with a secondary shorting ring contribute to a 20% increase in linear excursion while maintaining low inductance, optimizing the driver’s efficiency. These features collectively enhance the overall acoustic fidelity in the low-frequency domain, allowing the speaker to reproduce frequencies as low as 20Hz with precision and clarity.
Key Features
-
DPC Array: The aluminum DPC not only provides structural integrity but acts as a thermal heatsink for the tweeters, improving their power handling capabilities and ensuring consistent thermal performance.
-
Enhanced Cabinet Construction: Aluminum side panels increase cabinet mass and damping, reducing unwanted vibrations and allowing for more accurate sound reproduction.
-
TPCD Carbon Fiber: The use of TexTreme carbon fiber results in a lighter and stronger diaphragm, decreasing distortion and allowing for a broader frequency response without sharp peak resonances.
-
Improved Woofer Design: The redesigned voice coil and magnetic structure enhance low-frequency response, enabling greater linear excursion and thermal management, while minimizing distortion at high output levels.
-
Isolated Damping System: Advanced isolation technology prevents lateral movement and resonances, maintaining alignment during performance for consistent sound quality.
Technical Specifications
- Frequency Response: 20Hz - 40kHz
- Power Handling: 600W (RMS)
- Impedance: 4 Ohms
- Sensitivity: 90 dB
- Dimensions: 48" H x 15" W x 16" D
- Weight: 115 lbs each
