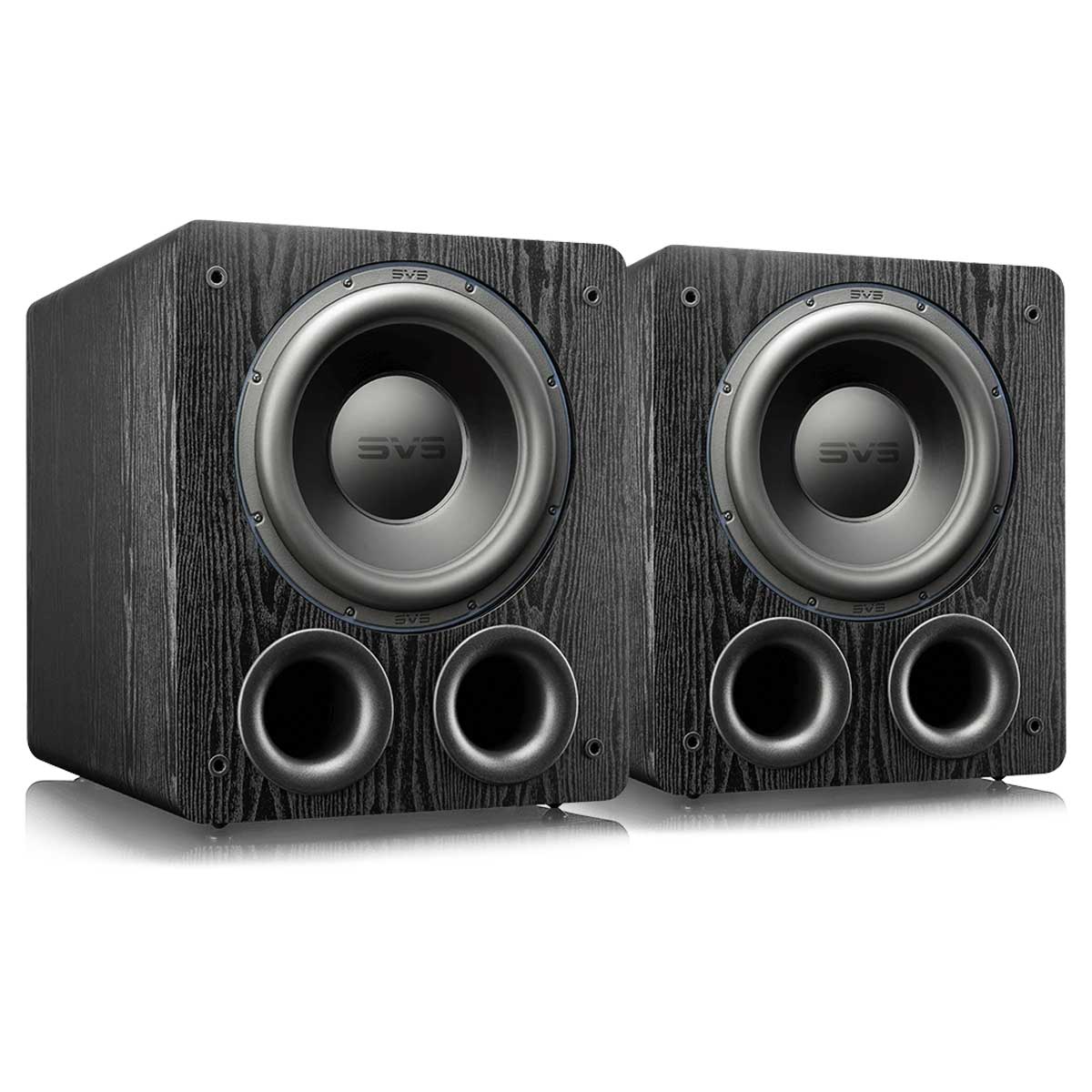

The SVS PB-3000 R | Evolution is engineered to reproduce accurate and controlled low frequencies down to 16Hz. Its innovative design delivers powerful bass performance without distortion, making it a benchmark in acoustic precision.
The SVS PB-3000 employs a high-excursion 13-inch driver that maximizes air displacement, allowing it to produce profound low frequencies while maintaining fidelity. The Sledge STA-800D2 DSP amplifier drives the driver with an RMS power of 800 watts and peaks over 2,500 watts, ensuring that dynamic range remains uncompromised during playback. The dual port design offers two distinct tuning modes, adding versatility to the subwoofer’s performance by altering its acoustic characteristics to suit different room acoustics and listener preferences. This design philosophy prioritizes mechanical efficiency and control, leading to precise bass reproduction at all volumes without introducing undesirable distortion.
Key Features
- 16-235Hz ± 3 dB (standard mode - all ports open)
- 17Hz to 270Hz ± 3dB (sealed mode - all ports sealed)
- Expect 2-3Hz deeper extension in small to mid-size rooms.
- Roll-off slope specifically optimized to take maximum advantage of available room gain
- 2-meter ground plane away from reflective structures (quasi-anechoic)
- 20% to 60% lower acoustic THD+N in critical low frequency bandwidth compared to previous generation.
Included Accessories:
- Protective non-resonant extra-thick ABS grille frame with fabric mesh cover
- 2 Foam port tuning plugs
- Iso-elastomer feet
- Extra heavy-duty, high current 6' power cord
- Quick Start Guide
Technical Specifications
- Driver Size: 13 inches
-
Amplifier Rating: 1200 watts RMS (4000+ watts peak)
- Frequency Response: 16-235Hz ± 3 dB (standard mode) 17-270 Hz ± 3 dB (sealed mode)
- Enclosure Type: Ported
- Dimensions: 21.9" (H) 18.3" (W) 24.7" (D)
