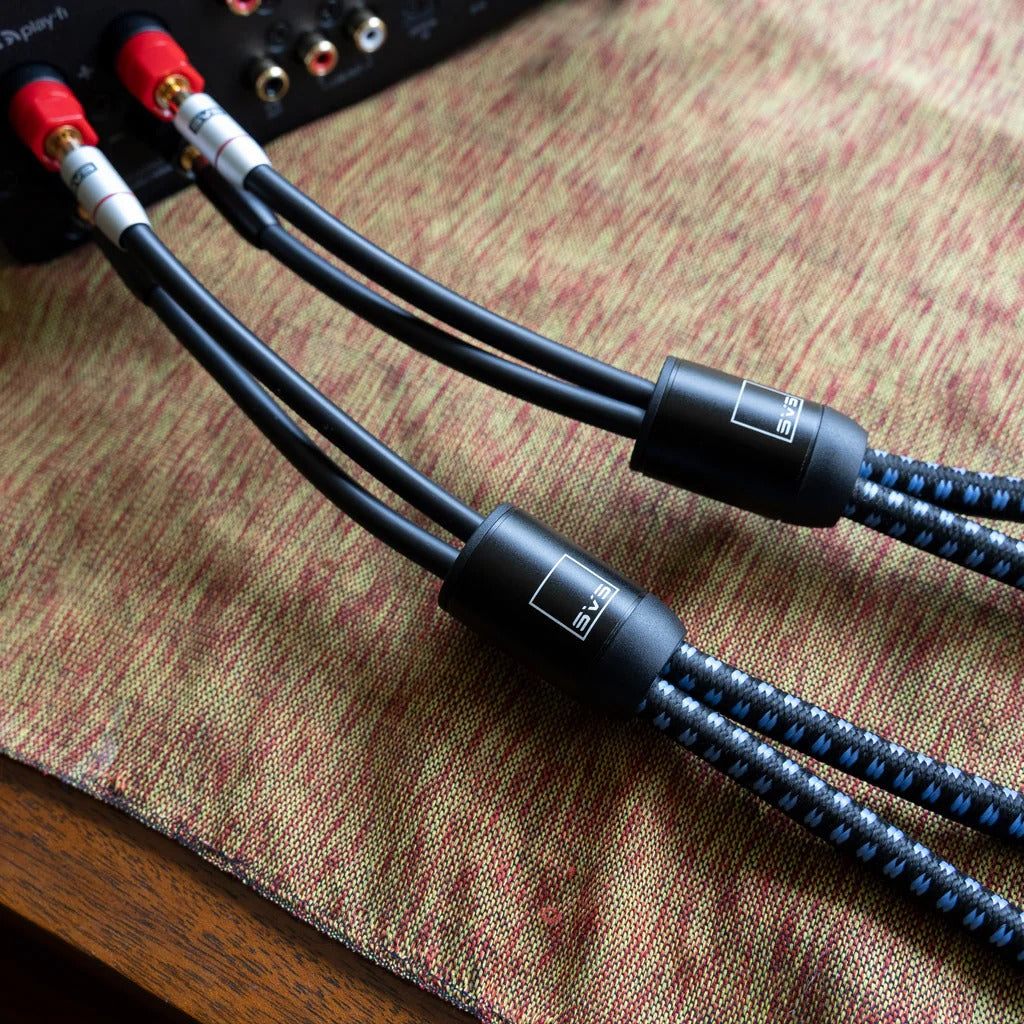

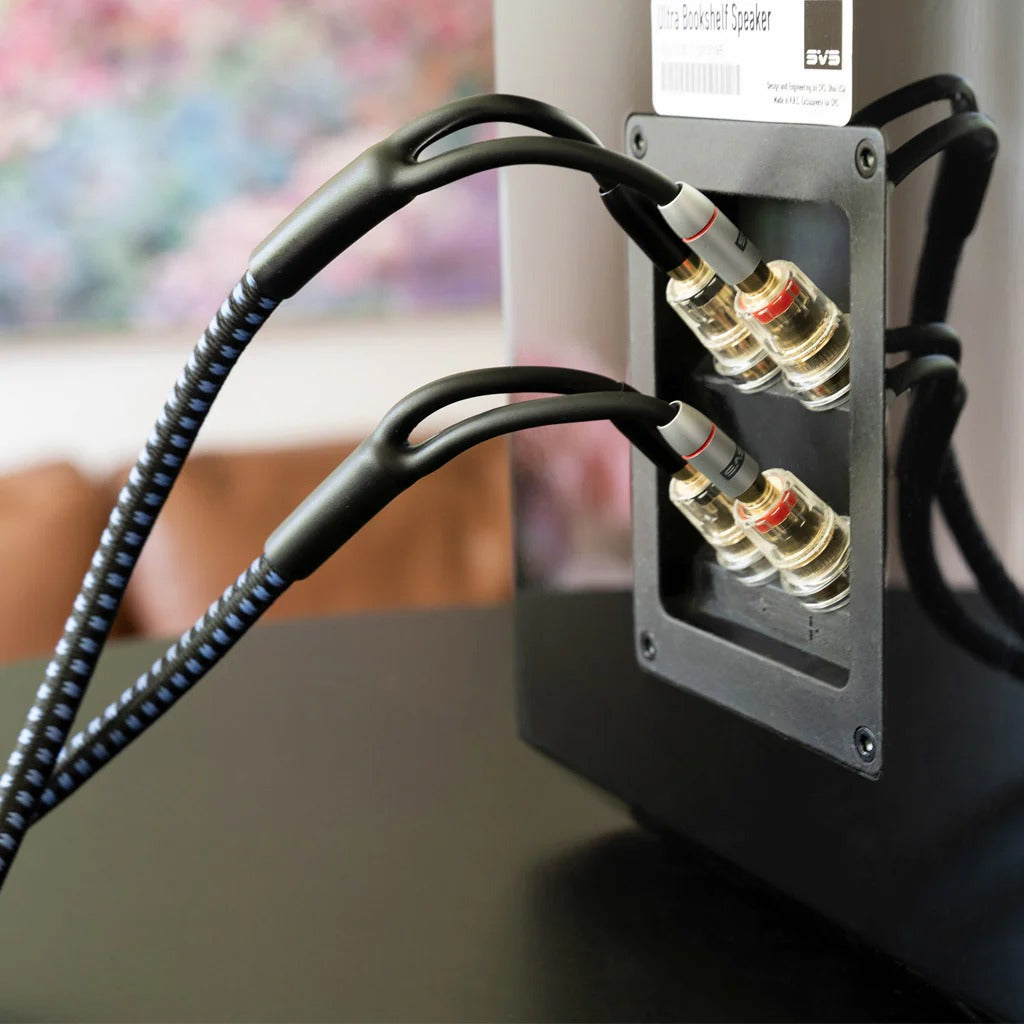

SVS SoundPath Ultra Bi-Wire Speaker Cables preserve sonic precision by delivering uncompromised signal integrity across the full audio spectrum. Engineered with ultra-pure copper conductors and advanced shielding architecture, these cables provide exceptional clarity, dynamic range, and refined separation between frequencies for a truly immersive listening experience.
The SVS SoundPath Ultra Bi-Wire Speaker Cables feature an advanced quad-conductor design with four braided dual-balanced conductors constructed from 164 strands of 99.99% oxygen-free stranded copper. This meticulous engineering enables independent signal paths for high and low frequencies, reducing impedance interaction while enhancing detail retrieval and tonal separation. The result is improved sonic transparency, tighter bass articulation, and more defined midrange and treble response.
To ensure pristine signal transmission, each cable incorporates a three-layer shielding system designed to reject RF noise and external interference. A precision-machined anodized aircraft-grade aluminum housing surrounds multiple PVC dielectric cores, safeguarding signal purity while minimizing distortion. The durable braided cotton outer jacket not only adds an elegant finish but also provides superior flexibility, grip, and long-term durability.
Key Features

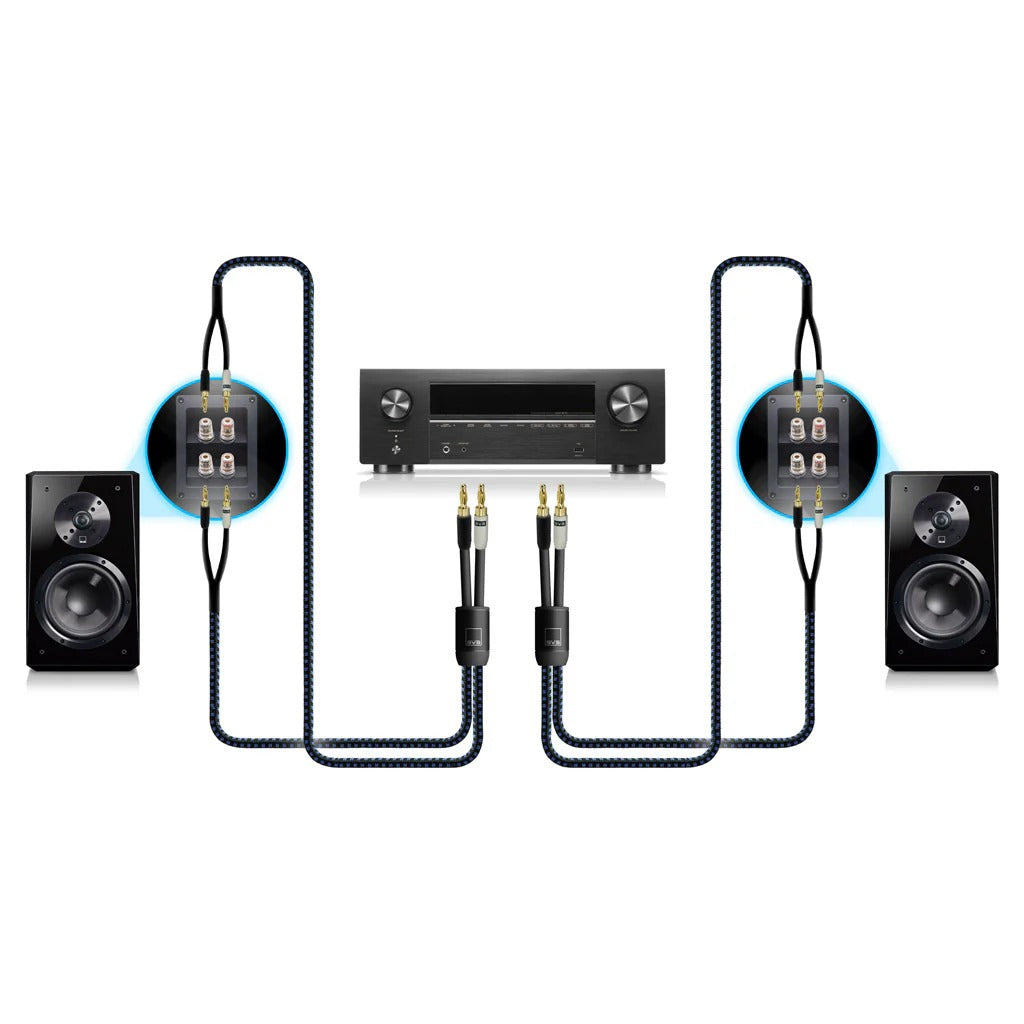

Bi-Wire Configuration:
Separate conductor paths for high and low frequency transmission reduce signal interference and improve frequency separation.
99.99% Oxygen-Free Copper Conductors:
Ultra-pure stranded copper ensures exceptional conductivity, low resistance, and highly accurate signal transfer.
Four Dual-Balanced Conductors:
Advanced braided architecture enhances electrical performance while maintaining consistent signal flow.
Three-Layer Shielding System:
Provides superior rejection of RF noise and external interference for cleaner, distortion-free audio.

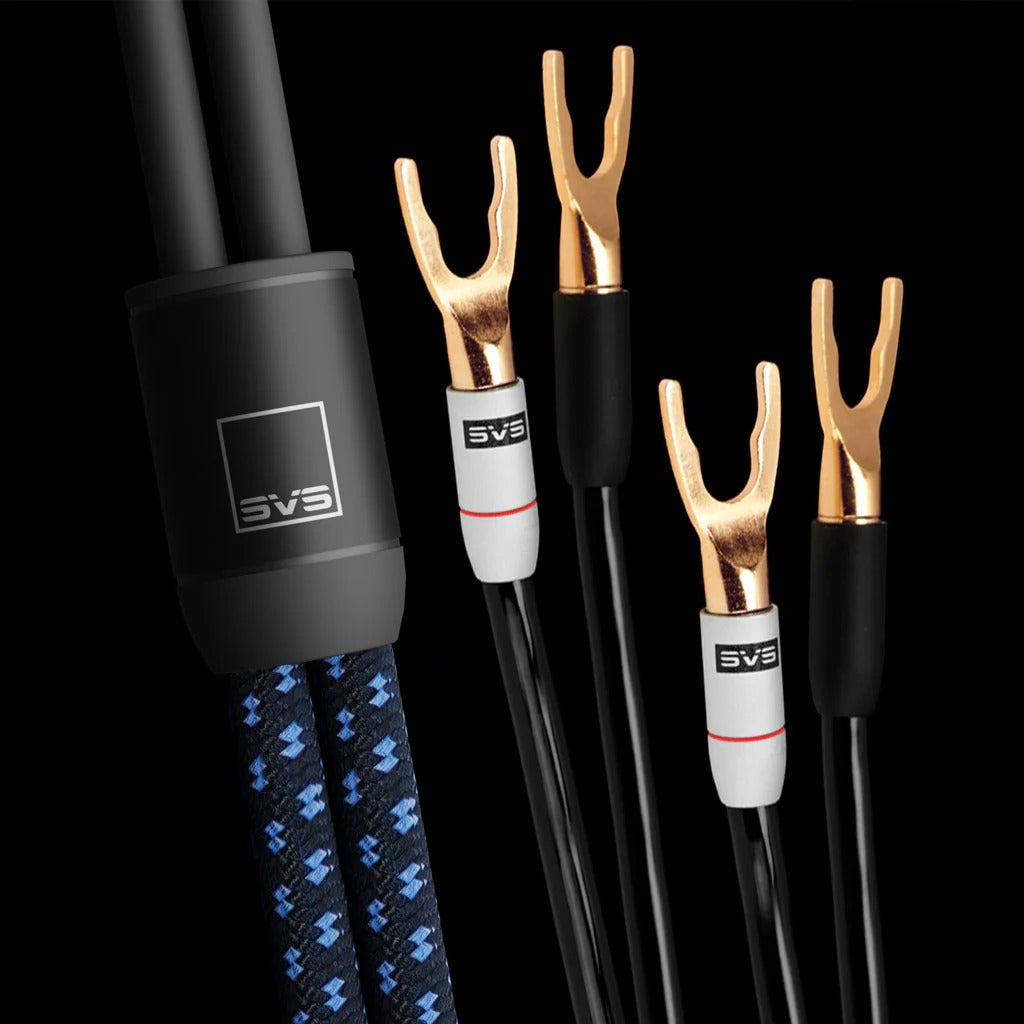

Aircraft-Grade Aluminum Housing:
Precision-machined anodized aluminum connectors offer durability, shielding reinforcement, and premium aesthetics.
Impedance-Matched Design:
Optimized to minimize VSWR and Return Loss for improved signal stability and transmission accuracy.
Protective Braided Cotton Sleeve:
Enhances flexibility, durability, handling comfort, and resistance to physical wear.
PVC Dielectric Joint Construction:
Flexible and robust breakout design ensures reliable connection between positive and negative terminals.
Technical Specifications
Cable Type: Ultra Bi-Wire Speaker Cable
Wire Gauge: 14 AWG stranded speaker wire
Conductors: 4 braided Dual Balanced conductors
Copper Purity: 99.99% Oxygen-Free Stranded Copper
Total Strand Count: 164 strands
Rated Bandwidth: DC – 5.0 MHz (3M cable)
Voltage Standing Wave Ratio (VSWR): ≤ 1.1
Return Loss: ≥ 26 dB
Conductor DCR: 8 mΩ/meter
Nominal Impedance: 90Ω
Nominal Capacitance: 68 pF/meter @ 1kHz
Shielding: 3-layer RF rejection system
Connector Housing: Precision-machined anodized aircraft-grade aluminum
Outer Jacket: High-tensile braided cotton sleeve
Dielectric Material: PVC
