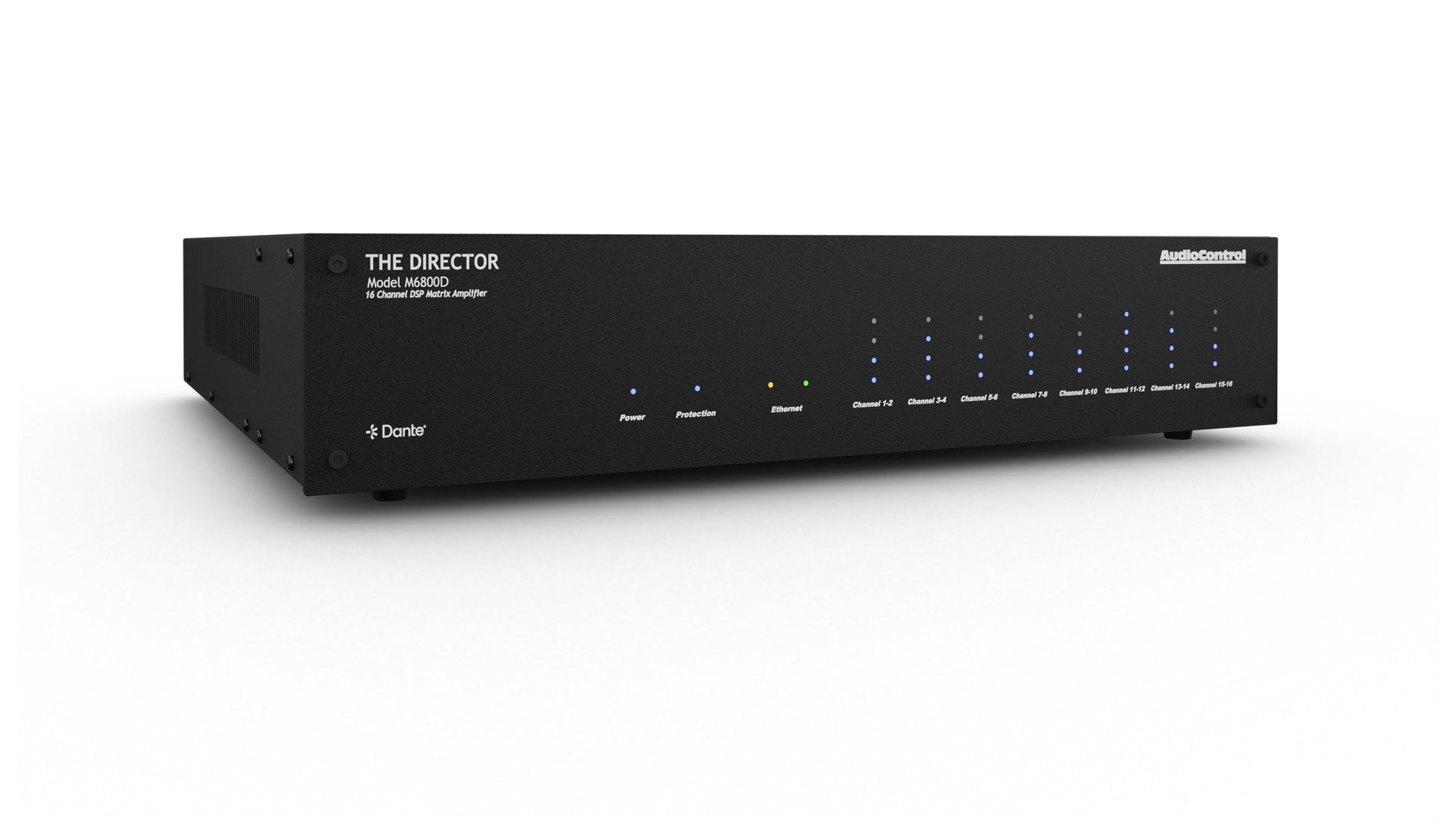

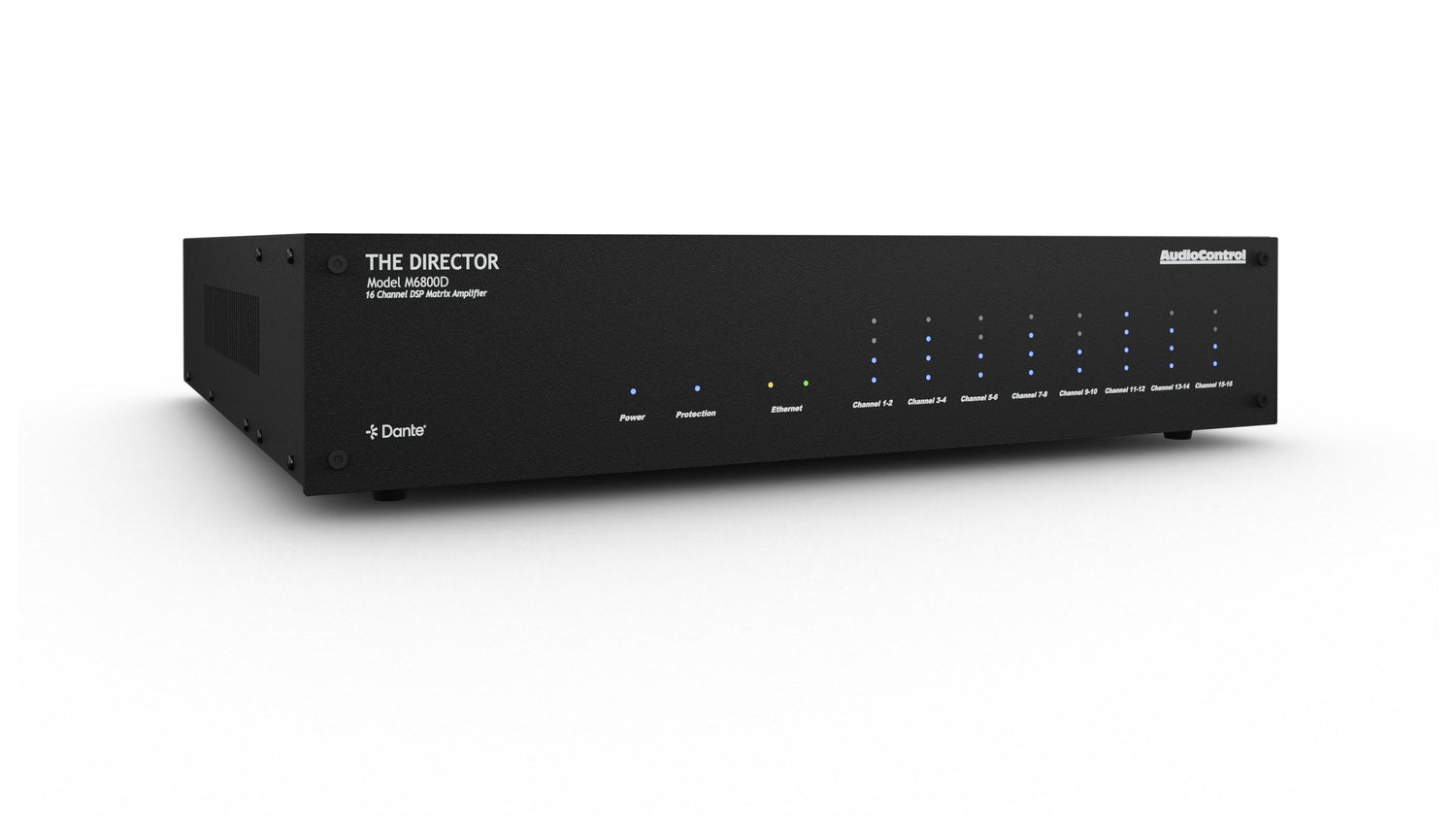

Director M6800D with Dante

The AudioControl Director M6800D is engineered to deliver high-power amplification tailored for diverse acoustic environments. With Dante support, it bridges efficient audio networking and robust signal processing.

---

The Director M6800D operates as a 16-channel DSP matrix amplifier utilizing advanced digital signal processing to ensure optimal audio performance. Each of the 16 channels is rated for 100 watts into 8 Ohms, doubling to 200 watts per channel at 4 Ohms, allowing it to drive high impedance low-frequency loudspeakers effectively. Bridging outputs can deliver up to 400 watts into 8 Ohms, supplying sufficient energy for demanding loudspeaker loads. The integration of networked audio through Dante technology further manifests its versatility, enabling the allocation and routing of audio signals across devices with negligible latency. The built-in DSP capabilities allow for multi-zone configurations, with fine-tuning capabilities such as equalization and crossover adjustments — vital for achieving accurate sound reproduction in variable acoustic environments.

Key Features

• 16-Channel Amplification: Each channel can drive speakers with precision, crucial for maintaining consistent performance across different zones.
• Dante Audio Networking: Facilitates the transmission of uncompressed audio over standard IP networks, ensuring minimal latency and robust signal integrity.
• DSP-Based Signal Processing: Offers real-time adjustments, improving frequency response through equalization and crossover settings based on acoustic laws.
• Flexible Configuration: Supports a range of source inputs, allowing for versatility in integrating with various audio systems and devices.
• Bridging Capability: Allows for doubled power output from individual channels when needed, providing headroom for dynamic performances.
• Built-in Speaker Profiles: Automatically optimizes the system for various speaker types, ensuring tonal balance and enhanced clarity.
• Multi-Zone Output: Enables independent control across different zones, crucial for both commercial and residential applications where sound distribution varies.

Technical Specifications

• Power Output: 100 watts per channel into 8 Ohms
• Power Output: 200 watts per channel into 4 Ohms
• Bridged Power Output: 400 watts into 8 Ohms
• Channels: 16
• Input Types: 2 digital input buses (Coaxial and TOSLINK)
• Zone Outputs: Configurable analog and matrixed digital outputs
• Dante Support: Yes
• Device Compatibility: Works with Control4, Crestron, RTI, Savant
• Onboard DSP: Yes, with EQ and crossover capabilities
