The Triode Evolution integrates KT88 tubes to deliver a true representation of sound, emphasizing fidelity and detail. Experience the nuances of music through engineering designed for purity and performance.

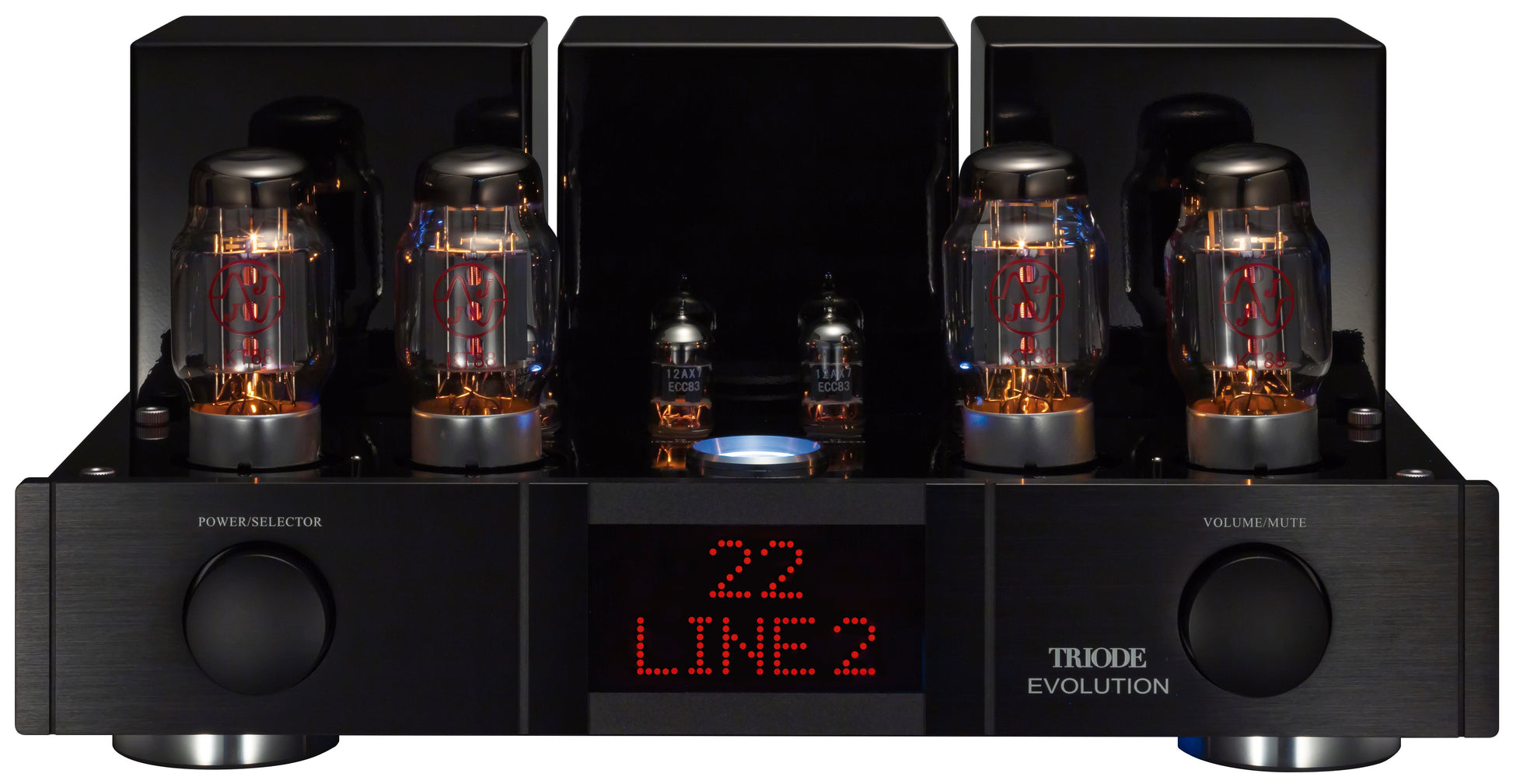

The Triode Evolution is a KT88 class AB push-pull integrated amplifier that combines the warm characteristics of vacuum tubes with the efficiency of solid-state designs. The output stage utilizes four KT88 tubes to deliver a robust 40W per channel at an 8-ohm load, effectively managing both harmonics and distortion while enhancing dynamic range and tonal richness. The frequency response of 17Hz to 63kHz ensures the preservation of low and high frequencies, while a high signal-to-noise ratio of 93dB guarantees a clean sound floor. The fixed bias system, adjustable with a built-in meter, allows for precise tuning of the tubes' performance, ensuring longevity and consistency. Overall, this amorphous design addresses common issues of feedback and response time, creating a harmonious balance between power and detail.
Key Features
-
KT88 Tubes: Provides a rich, warm sound with harmonic distortion characteristics that flatter typical audio signals.
-
Class AB Design: Allows for lower crossover distortion compared to Class B amplifiers while maintaining high efficiency, delivering clear and powerful output.
-
Frequency Response: An impressive range of 17Hz - 63kHz ensures accurate reproduction across the entire audible spectrum and beyond, making it suitable for high-resolution audio.
-
Fixed Bias System: Enables continuous operation of the tubes at optimal performance with ease of adjustment, enhancing longevity and stabilizing sound quality over time.
-
High Signal-to-Noise Ratio: Achieves 93dB for an ultra-quiet background, allowing even the faintest details in the music to be heard without interference.
-
Remote Control: Enhances user convenience with capabilities to control power, volume, input selection, and mute functions from a distance.
-
High-Quality Components: Utilizes premium materials for speaker terminals and circuits to ensure durability and minimal signal loss.
Technical Specifications
- Output Power: 40W + 40W at 8 ohms
- Frequency Response: 17Hz - 63kHz (-2dB)
- Signal-to-Noise Ratio: 93 dB
- Input Sensitivity: LINE 320mV, MAIN IN 670mV
- Input Impedance: LINE 100k ohms, MAIN IN 100k ohms
- Input Terminals: RCA unbalanced x 5 (LINE1-4, MAIN IN x 1)
- Speaker Output Terminals: 4 ~ 8 ohms
- Power Consumption: 310W (170W/No signal)
- Dimensions: W440mm x D330mm x H210mm
- Weight: 30.0kg
- Accessories: Tube cover, Remote control
