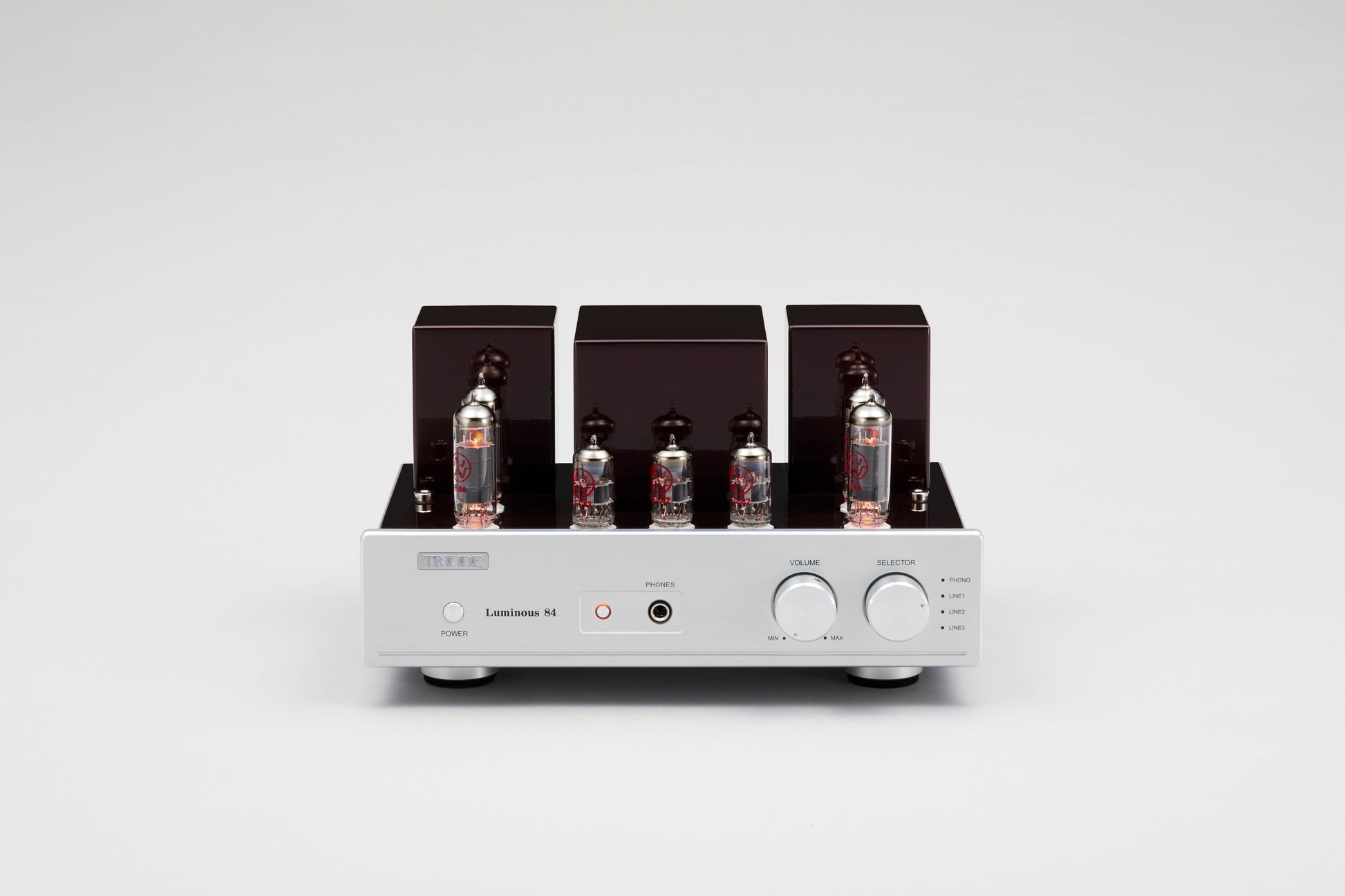

The Triode Luminous 84 delivers pure analog sound, utilizing the EL84 tube for a warm and rich audio experience. Its push-pull configuration minimizes distortion while maintaining robust power performance.
The Triode Luminous 84 is built around a push-pull configuration utilizing four EL84 (6BQ5) tubes, which operate in class AB mode to produce a balanced output of 11W per channel at 8Ω. The output stage benefits from self-biasing technology that maintains optimal functioning of the tubes over their lifespan, enhancing reliability and fidelity. Frequency response extends from 17Hz to 70kHz with a ±2dB tolerance, ensuring accurate reproduction across the audible spectrum. The signal-to-noise (S/N) ratio of 79dB indicates a solid distinction between the signal output and background noise, providing a clean listening experience. Input sensitivity for line-level signals is rated at 150mV with a high input impedance of 100kΩ, accommodating various sources effectively. Its well-designed input and output terminals support seamless connectivity while its compact size and moderate weight facilitate ease of use without compromising on performance.
Key Features
-
Output Power: 11W+11W at 8Ω, designed to drive speakers with high accuracy and lower distortion through its push-pull topology.
-
Frequency Response: 17Hz-70kHz (±2dB), ensuring that both low and high frequencies are reproduced faithfully, enhancing the listening experience.
-
S/N Ratio: 79dB, giving a significant signal clarity by minimizing the background noise, thus preserving the integrity of the sound.
-
Input Sensitivity: LINE150mV/100kΩ, providing flexibility in connectivity with various devices without introducing excessive noise or distortion.
-
Self Bias Technology: Automatically adjusts the operating conditions of the tubes, prolonging their life while maintaining optimal sound quality.
-
Compact Design: Dimensions (W305*D255*H170mm) and weight (11.4kg) allow for easy placement in various environments without sacrificing performance.
Technical Specifications
- SRP: $2999
- Tube Configuration: EL84(6BQ5)*4, 12AU7*3
- Bias Type: Self bias
- Output Power: 11W+11W at 8Ω
- Frequency Response: 17Hz-70kHz (±2dB)
- S/N Ratio: 79dB
- Input Sensitivity: LINE150mV/100kΩ
- Input Impedance: MM 2.5mV/47kΩ
- Input Terminals: RCA unbalanced x3 (LINE1-3), MM x1
- Speaker Output Terminals: 4Ω-8Ω
- Headphone Output: 6.3mm stereo jack
- Power Consumption: 130W
- Dimensions: W305*D255*H170mm
- Weight: 11.4kg
- Accessories: Tube cover
