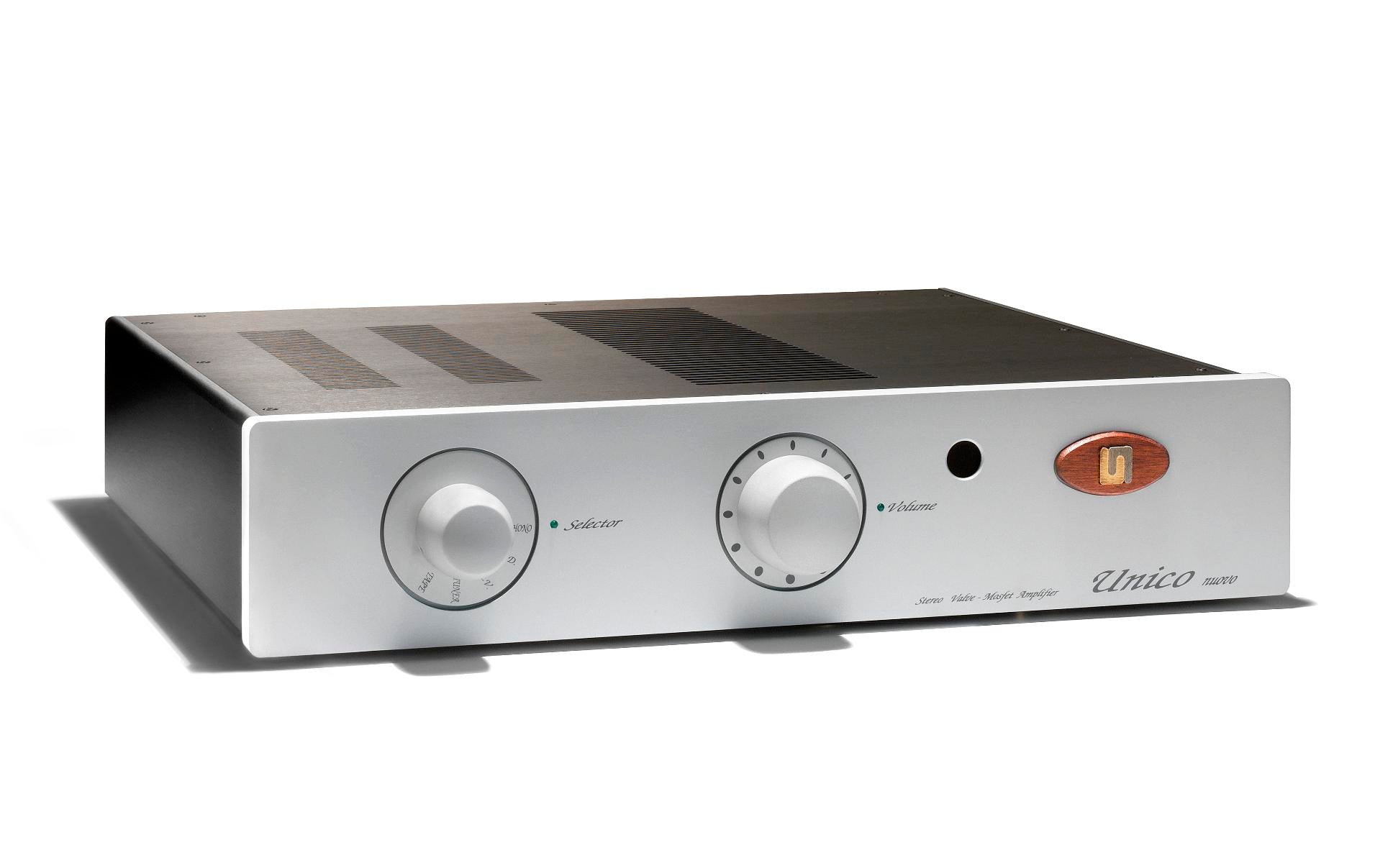

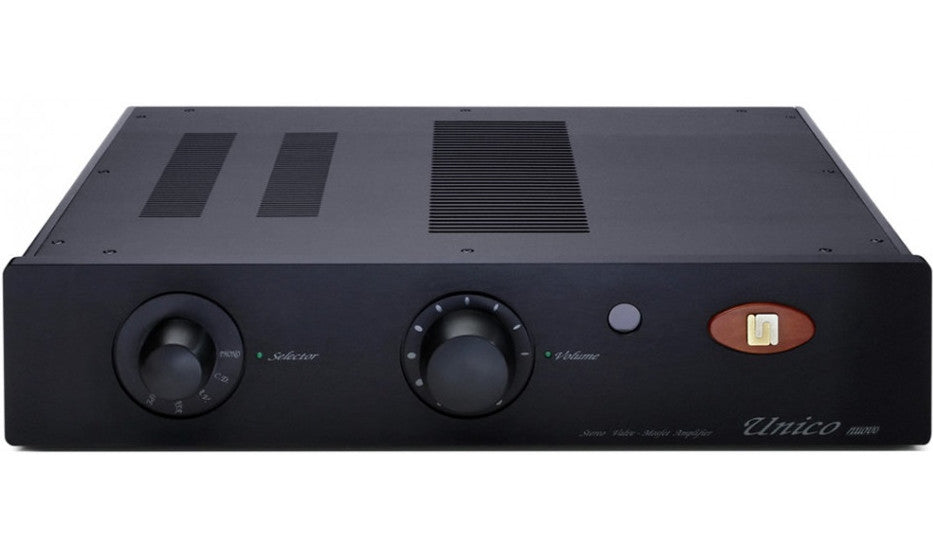

The Unison Research Unico Nuovo integrates a sophisticated triode stage design with advanced biasing technology for high fidelity. Its parallel double-triode configuration enhances sonic detail and accuracy over earlier models.
At the core of the Unico Nuovo's design lies a single triode stage per-channel configuration, implemented with dual ECC83 (12AX7) valves. This parallel double-triode setup effectively reduces distortion while ensuring a smoother signal flow, contributing to improved channel separation and a more refined audio experience. The innovative ionic biasing solution allows for automatic adjustment as the valves age, maintaining optimal performance. The combination of bipolar transistors in the symmetrical current mirror stage minimizes phase displacement, further refining the audio output. Power MOSFETs configured symmetrically in the output stage provide increased efficiency and superior sound delivery, enhanced by a well-designed power supply that ensures consistent voltage supply. This highly engineered amplifier showcases a scientific approach to modern audio design, focusing on preserving the acoustic integrity of the source material.
Key Features
-
Parallel Double-Triode Design: Utilizes two ECC83 valves per channel, allowing for increased musical detail and reduced distortion by improving linearity.
-
Ionic Biasing Solution: Automatically adjusts the bias as valves age, ensuring optimal performance and longevity without manual intervention.
-
Symmetrical Current Mirror Stage: Employs bipolar transistors to maintain phase coherence, resulting in a cleaner and more accurate sound.
-
Dynamic A Class Output Stage: Features Power MOSFETs for enhanced efficiency and sound fidelity, delivering power while maintaining the warmth of valve amplification.
-
High-Quality Anodized Aluminum Finish: Enhances the mechanical strength and durability of the unit while offering aesthetic appeal through a specialized surface treatment.
Technical Specifications
- Output Power: 95W RMS / 8Ohm
- Frequency Response: -0.1dB @ 10Hz, -0.5dB @ 100kHz
- Input Impedance: 50kOhm // 47pF
- Sensitivity: 260mV RMS
- Input Stage: Pure A Class, parallel Valve stage, ECC83/12AX7
- Output Stage: Dynamic A Class POWER MOSFET complementary
- Input: 5 Line RCA (1 phono optional)
- Line Output: 1 tape, 1 sub (with volume control)
- Output Connector: 4 + 4 bi-wiring
- Feedback Factor: 10dB
- THD: 0.15% @ 10W/1kHz
- Power Consumption: 400W max
- Size: 43.5cm x 9.5cm x 43cm
- Weight: 16kg
