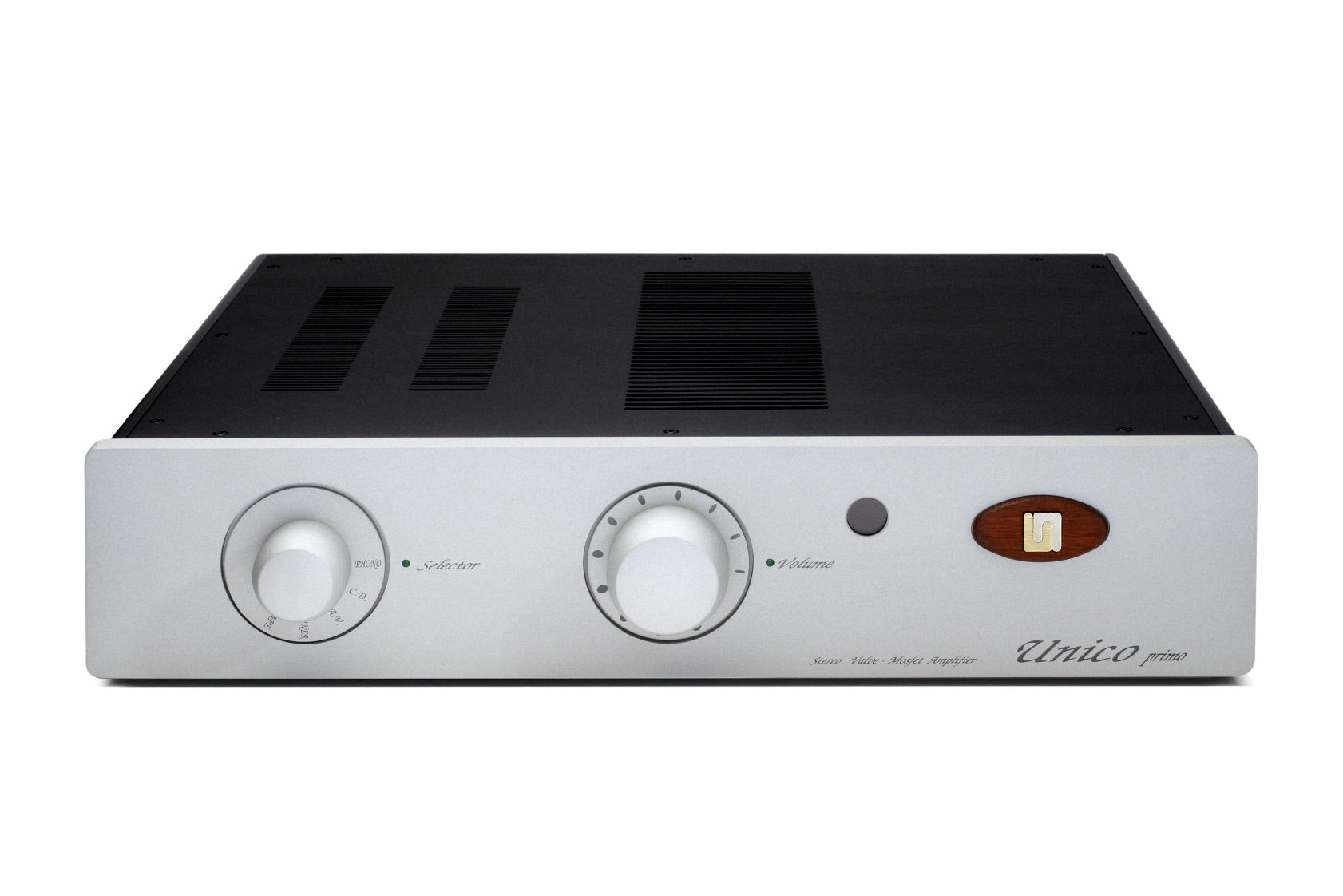

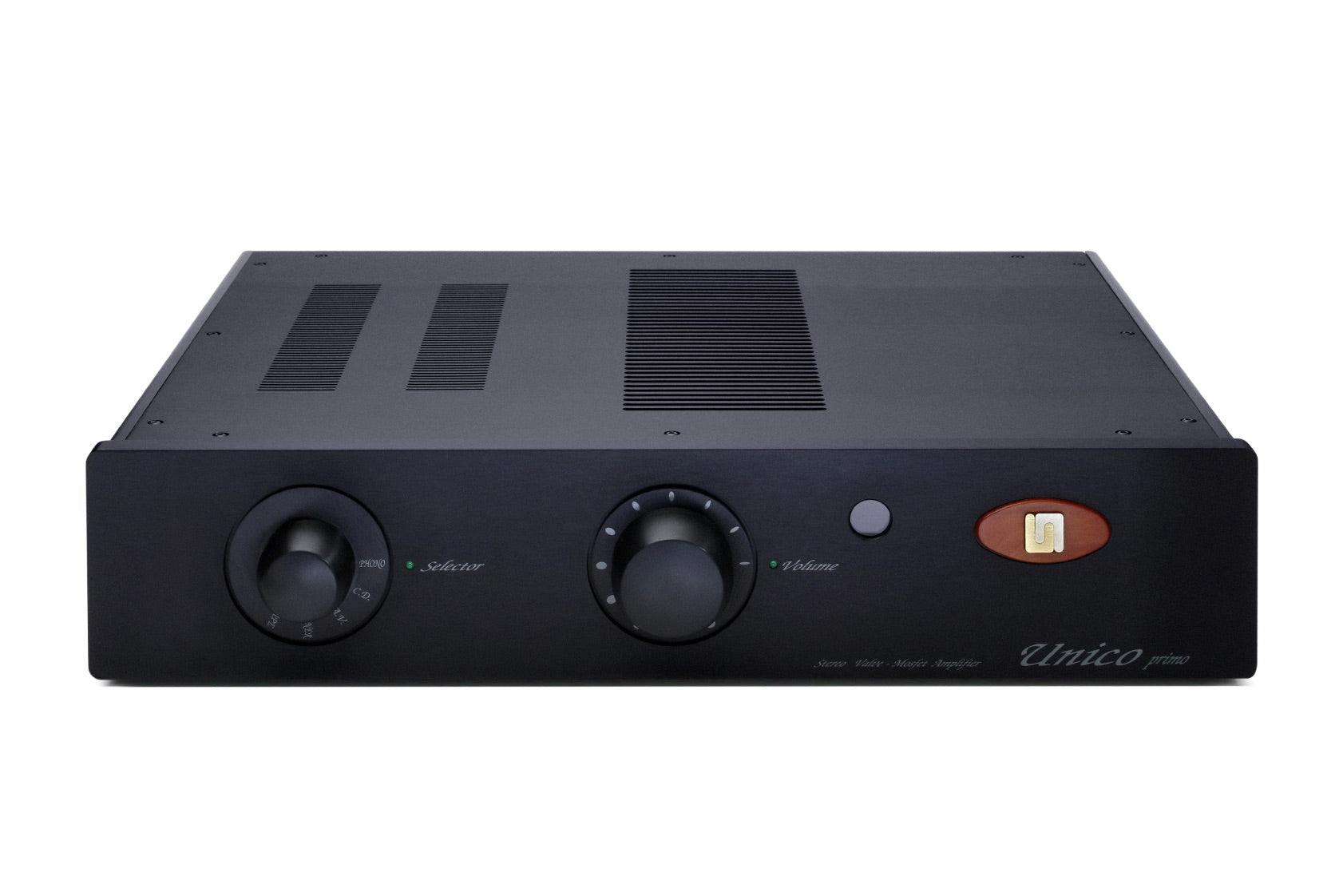

The Unico Primo Integrated Amplifier embodies auditory precision through its advanced circuitry. Its design is rooted in acoustic integrity, allowing for a rich and true sound reproduction.
The Unico Primo Integrated Amplifier utilizes a dynamic Class A output stage with POWER MOSFET paired transistors, achieving high linearity and low distortion characteristics. The input stage is designed with A-Class A triodes, specifically employing an ECC83 (12AX7) valve to enhance the harmonic richness of audio signals, while the carefully selected components and construction methods reduce noise and interference. With a frequency response extending from 10Hz to 100kHz, the amplifier ensures faithful reproduction across the audible spectrum, affording a signal-to-noise ratio (SNR) of 90dB and total harmonic distortion (THD) of 0.15% at 10W, highlighting its capacity for clarity and fidelity. The inclusion of negative feedback and a damping factor greater than 50 aids in managing speaker control, offering superior transient response and a cohesive soundstage.
Key Features
-
Dynamic A Class Output Stage: This configuration reduces distortion and enhances output quality by maintaining linearity across the power range.
-
Class A Input Stage: Utilizing A-Class A triodes, it enriches audio signals with harmonics, providing a more natural sound profile.
-
Valve Circuitry: The single ECC83 (12AX7) valve contributes to a warmer sound, leveraging tube technology's unique tonal characteristics.
-
High SNR & Low THD: The amplifier achieves a 90dB SNR and 0.15% THD at 10W, ensuring high clarity and minimal interference in sound reproduction.
-
Comprehensive Input Options: Equipped with multiple RCA inputs and outputs, facilitating versatile connectivity in audio setups.
Technical Specifications
- Output Power: > 80W RMS on 8Ω
- Output Stage: Dynamic A Class POWER MOSFET complementary pair
- Polarization: Class A Dynamic
- Input Stage: A-Class A triodes
- Valve: 1 x ECC83 (12AX7)
- Sensitivity: 260mV
- Input Impedance: 50 kΩ / 47 pF
- Frequency Response: -0.1dB@10Hz / -0.5dB@100kHz
- SNR: 90dB
- THD: 0.15% @ 10W, 1kHz
- Negative Feedback: 10dB
- Damping Factor: > 50
- Inputs: 5 line RCA, 1 tape RCA
- Output: 1 RCA tape, 1 RCA subwoofer
- Output Connectors: 4 + 4 for Bi-Wiring
- Remote Control: Volume, IR
- Power Consumption: 380W max
- Dimensions: 43.5 x 43 x 9.5 cm
- Net Weight: 14 kg
