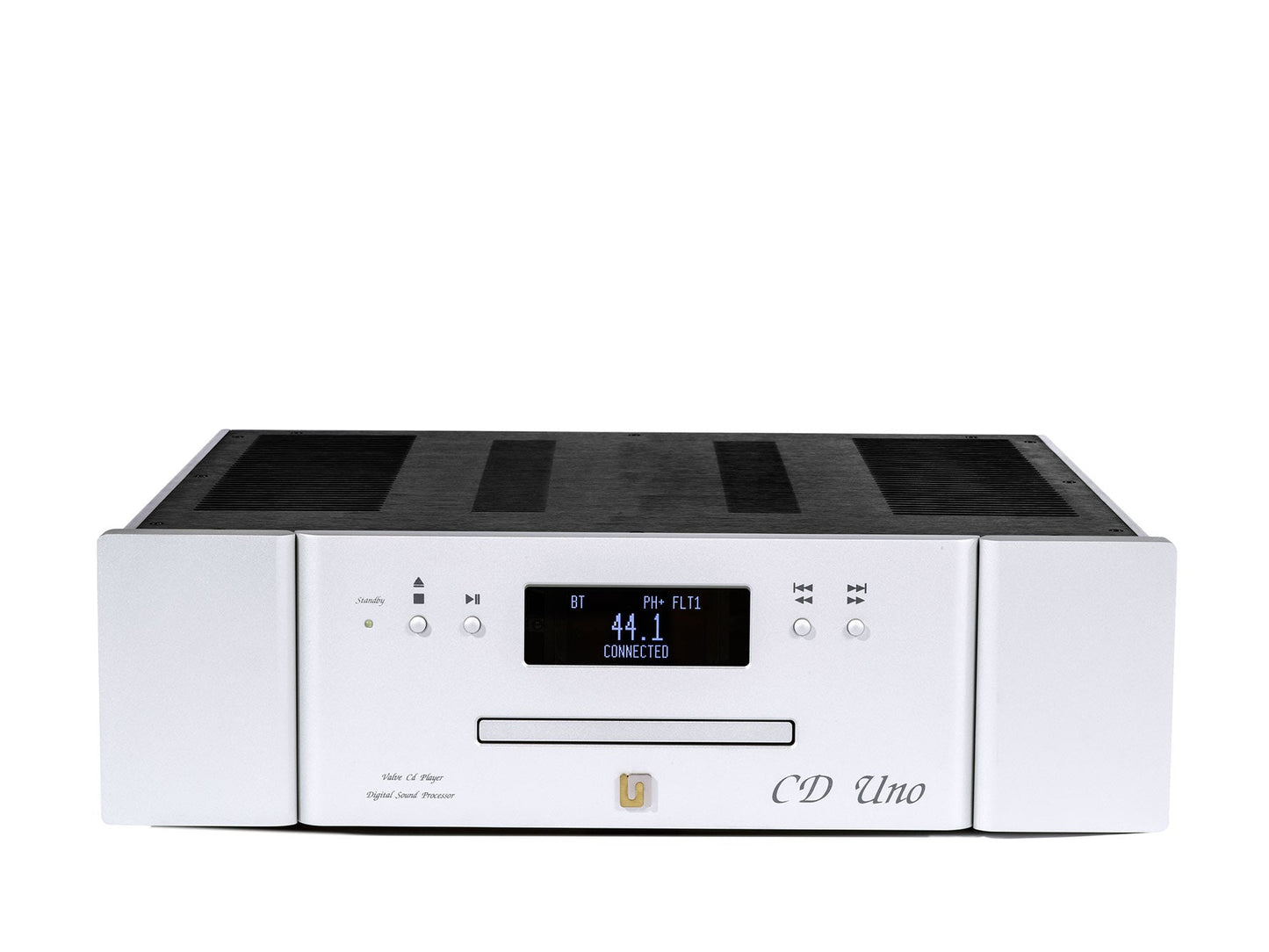

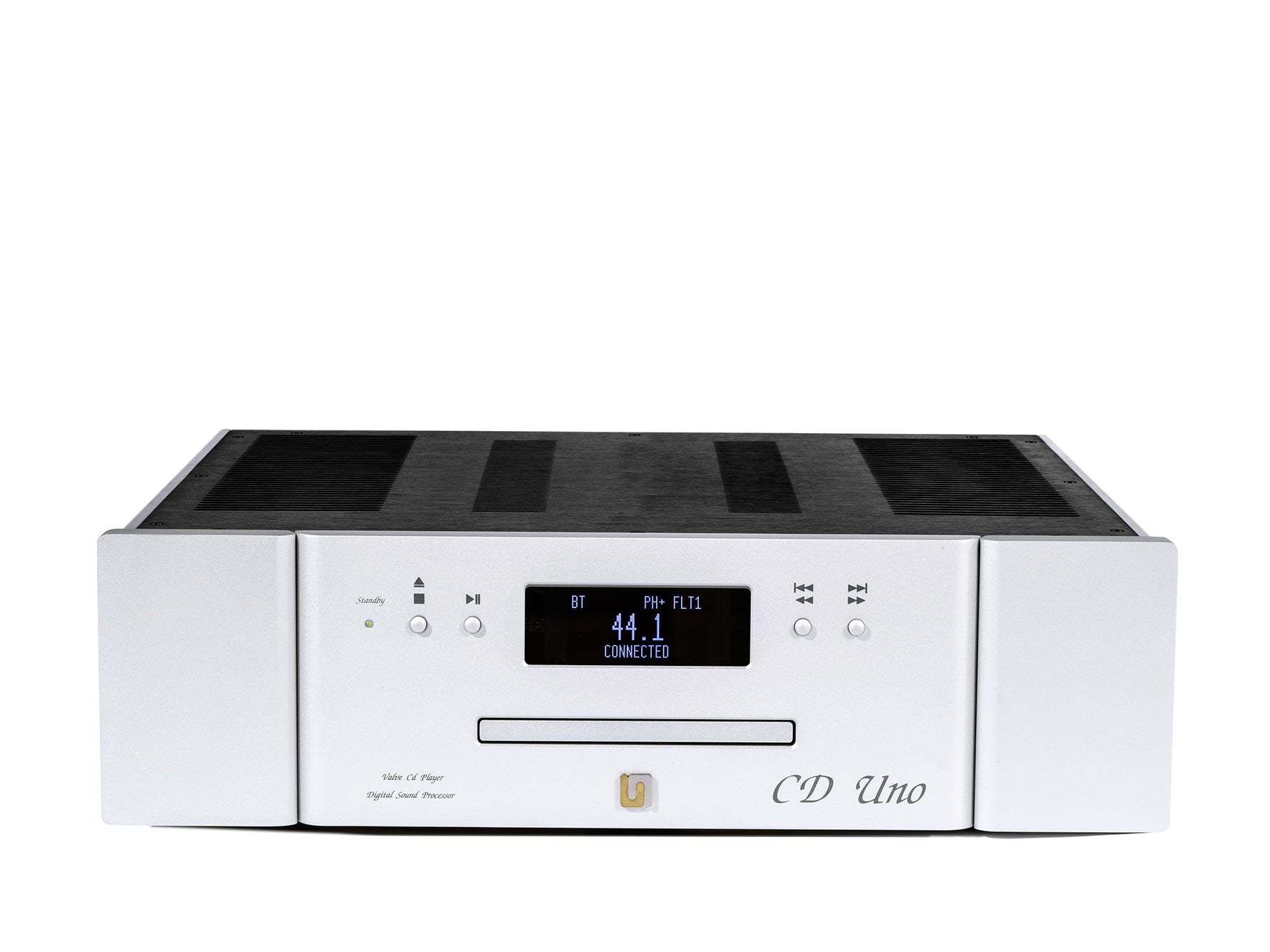

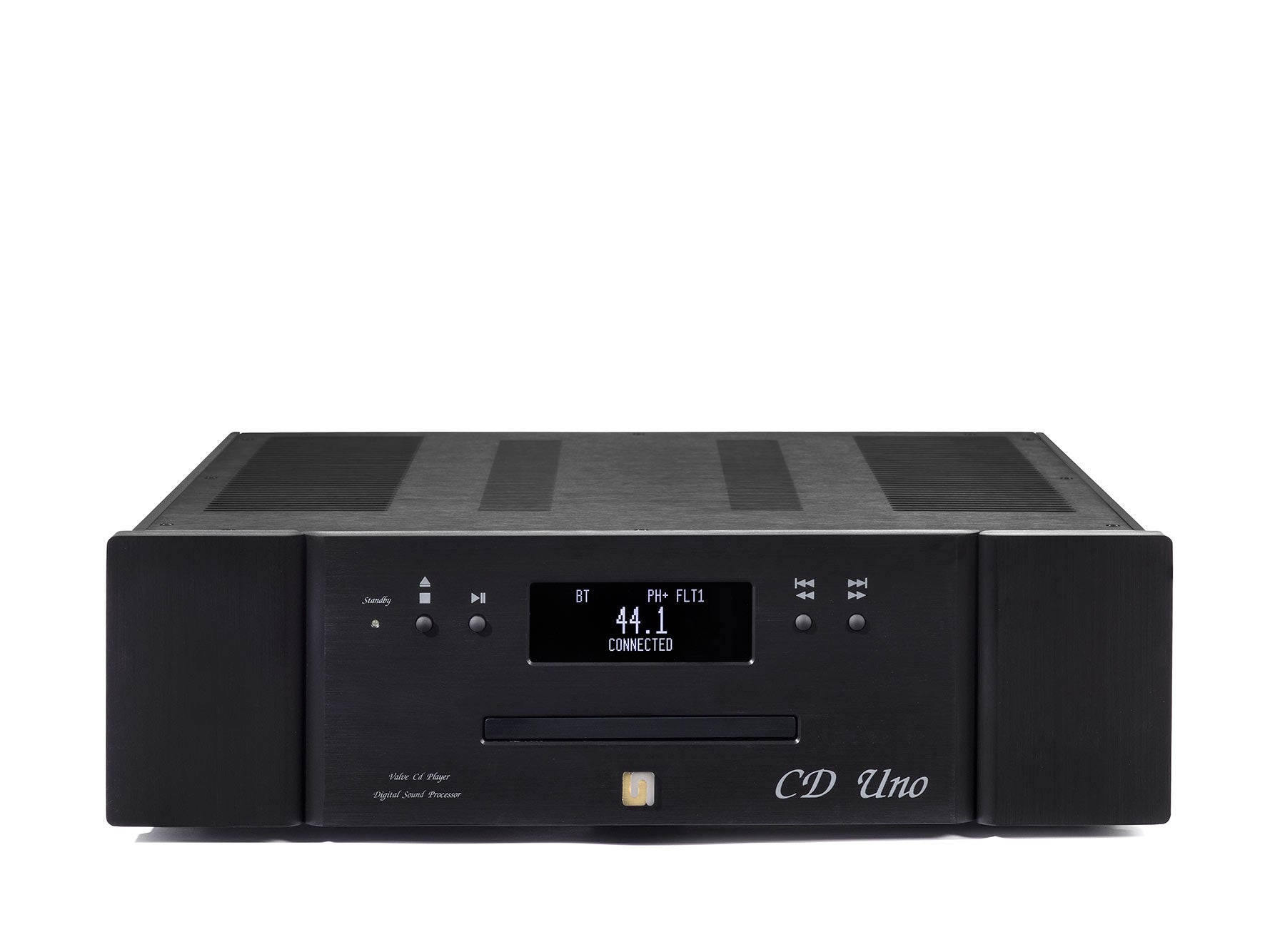

The Unison Research Unico CDUno delivers exceptional sound reproduction by prioritizing low distortion and high signal-to-noise ratios. Its meticulous design fosters a pure class A operation, ensuring audio fidelity throughout various digital playback formats.
The Unico CDUno integrates a high-spec DAC with a CD mechanism optimized for various audio formats and sampling rates, ensuring a wide dynamic range and low total harmonic distortion. It employs a 12AU7/ECC82 double triode in pure class A configuration for the audio stage, followed by a solid-state discrete analog buffer that maintains low output impedance for superior audio performance. The DAC is powered by a robust architecture featuring multiple stabilized power supply rails, which minimizes noise and crosstalk between digital and analog sections, thanks to advanced filtering and regulation techniques. The implementation of an ESS Sabre DAC ES9018K2M, known for its jitter elimination capabilities and outstanding signal-to-noise ratio (125 dB), advances the CDUno's ability to deliver pristine audio with fidelity to the original recording across a diverse range of digital and analog formats.
Key Features
- USB Input: Manages signals up to 384kHz PCM and 11.2896MHz DSD using advanced D/A conversion technology, accommodating virtually all modern audio formats.
- Bluetooth Connectivity: Utilizes aptX technology for high-fidelity wireless streaming from compatible devices with minimal latency.
- Multiple Digital Inputs: Includes coaxial S/PDIF, balanced AES/EBU, and optical Toslink to enhance connectivity with various digital audio sources up to 192kHz and 24-bit resolution.
- Dedicated CD Mechanism: Features a shielding design that reduces vibrations and electromagnetic interference to maintain audio integrity during CD playback.
- High-Performance DAC: Employs the ESS Sabre DAC ES9018K2M for low distortion (0.0003%) and high signal-to-noise ratio, ensuring clarity and depth in sound reproduction.
- Isolated Power Supply Design: 8 stabilized power supply rails ensure clean power delivery to each component, reducing noise and improving performance stability.
Technical Specifications
- Audio Output: Class A, Low Impedance
- D/A Converter: ESS Sabre DAC ES9018K2M
- Signal-to-Noise Ratio: 125 dB
- Total Harmonic Distortion: 0.0003%
- Supported Formats: PCM up to 384kHz, DSD up to 11.2896MHz
- Digital Inputs: Coaxial S/PDIF, Balanced AES/EBU, Optical Toslink
- Dimensions: [dimensions not provided]
- Weight: [weight not provided]
- Power Supply: 8 Stabilized Rails
